16.4. Percent setup
The purpose of this working mode is comparing mass of a weighed load with reference
mass which is specified in mode settings. The result of the comparison process is
displayed in percent.
Working mode Percent Setup can cooperate with additional working modes:
checkweighing, dosing and statistics.
Mode activating

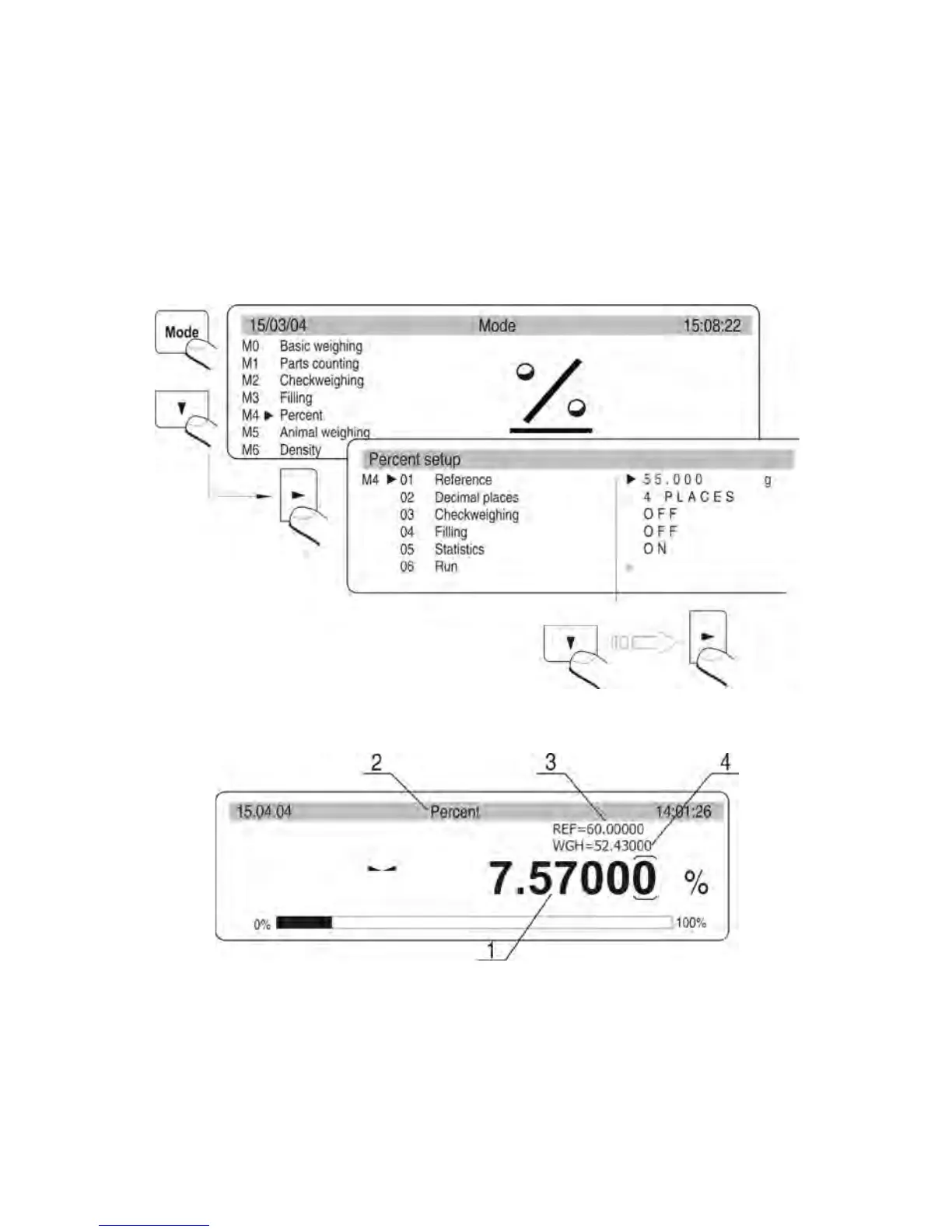

Fig. 43. Percent setup – mode activating
Display content
Fig. 44. Percent setup – display content
1 – percent value, i.e. relation between mass of a load placed on balance’s weighing
pan and reference mass saved in parameter settings
2 – working mode name
3 – REF – reference mass (see Fig. 40 – M4 01)
4 – WGH mass currently placed on balance’s weighing pan
