RADWIN5000ConfigurationGuide Release4.9.17 10‐2
SettingupQoS QualityofService
YoucanalsodefinepartofthelinkcapacityascarryingVoice‐over‐IPtraffic.Thisissimilarto
definingpartofitasRealtime,andisexplainedinEnablingaVoice‐over‐IP(VoIP)Queueon
page 10‐5.
10.4SettingupQoS
QoSforRADWIN5000issetupintwophases:
• Maptheprioritylevelstothequeuesforthesector(R ealTimeorVoIP,NearRealTime,
ControlledLoad,andBestEffort).
• ForeachHSU,setthequeueweightsandqueueMaximumInformationRate(MIR).
10.4.1MappingQoSPriorityLevelstoQueues(fromthe
HBS)

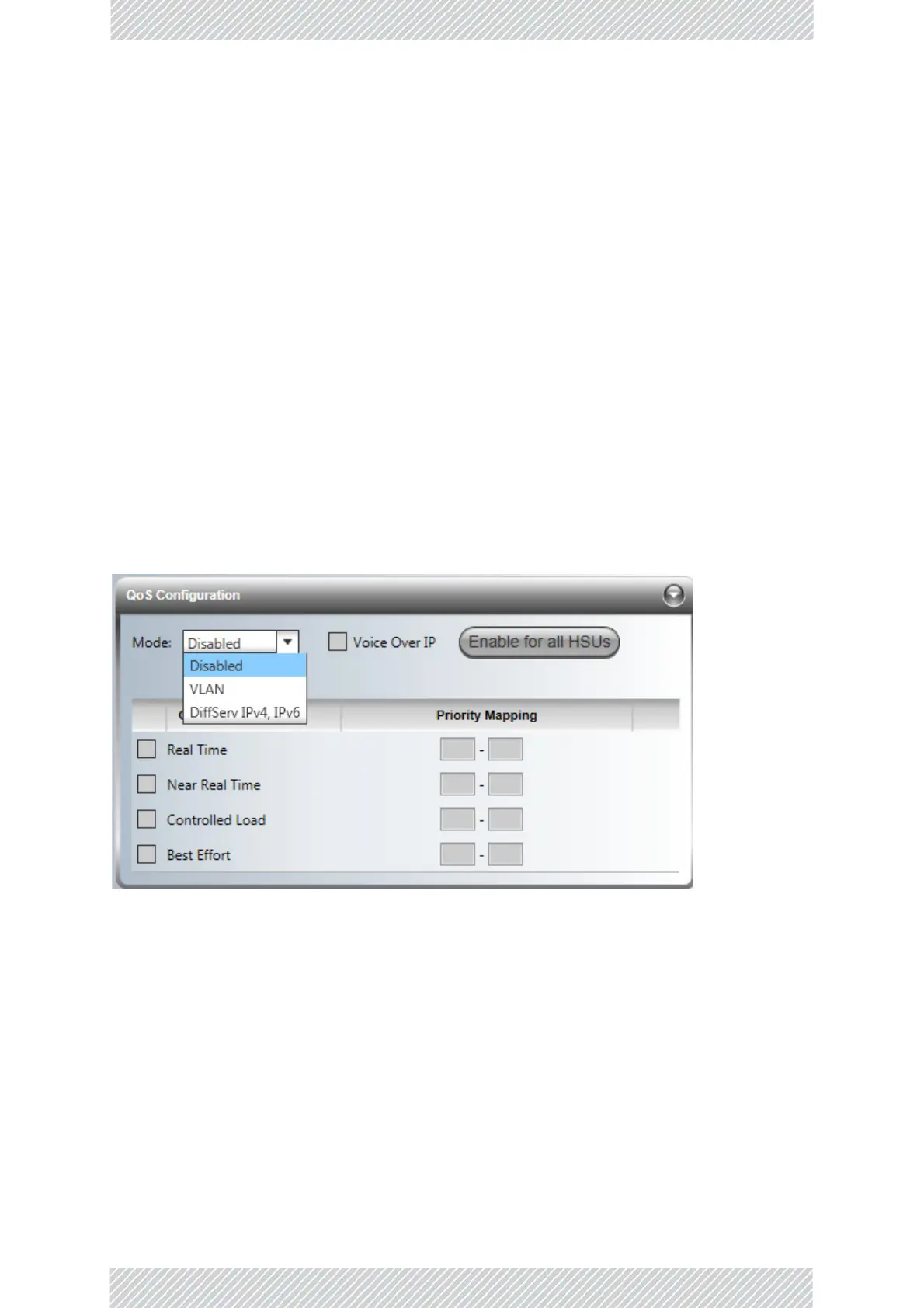

1. FromtheHBSmanager,chooseConfiguration‐>Ethernettab,thenclickQoS
Configuration.QoSisdisabledbydefault.
2. ChooseeithertheVLAN(802.1p)andorDiffserv method(see10.5forVoIP).
3. Forthemethodyouselected,typethePriorityMappingforeachqueue.This
determinesthemapping(ortranslation)oftheprioritymappingofthetrafficto
whatisusedbytheRADWIN5000.DefaultsettingsforDiffservandVLANareas
showninthenexttwofigures:
