MakingaroutineDSCcall
YoucanuseyourproducttomakearoutineDSCcalltocontact
savedinthephonebook.
1.PressandholdtheMenuDSCbuttonfor3seconds.
TheDSCmenuisdisplayed.
2.SelectIndividual.
TheManualoptionandthephonebooklistisdisplayed.
3.SelectaphonebookentrytomakeaDSCcalltothatcontact,
or
4.SelectMANUALtomanuallyenteranMMSInumber.
5.UsetheChannelUpandChannelDownbuttonstoselecta
channeltotransmiton.
6.SelectOK.
7.SelectSEND.
Theradionowwaitsforanacknowledgementtobereceived.
8.Ifanacknowledgementisreceived,pressandholdthePTT
button.
9.Speakyourmessage.
10.ReleasethePTTbuttonwhenyouhavecompletedyour
message.
Receivingaroutineindividualcall
Whenyoureceiveanindividualroutinecallthedetailsare
displayedon-screen.
Whenanindividualroutinecallisreceived.
1.PresstheRIGHTsoftbuttontocyclethroughtheinformation
pages.
2.IfyouwanttoacceptthecallselectOKatanytime.
Ifautochannelchangeisturnedontheradiowillautomatically
changetotherequestchannelin10seconds.
3.SelectACCEPTtoacceptthecall,or
4.SelectNOTACCEPTtorejectthecall.
i.Ifyoudonotacceptthecallyoucanselectareasonfrom
thelistbyselectingOP:
•NOREASON
•CONGESTION
•BUSY
•QUEUE
•BARRED
•NOOPERATOR
•UNAVAILABLE
•DISABLE
•UNABLECH
•UNABLEMODE
ii.SelectOKtoconrmthereason.
5.SelectSENDtosendtheacceptanceorrejectionofthecall.
Conrmationoftheacceptanceorrejectionofthecallis
displayedon-screen.Ifyouhaveacceptedthecallthentheradio
willre-tunetotherequestedchannel.
7.6Groupcalls
Routinegroupcallscanbemadetogroupsofvesselssharing
thesameGroupMMSInumbers.
Routinegroupcallsaremadebyselectingagroupfromthe
Groupmenu,groupcallsareonlyreceivedbystationssharing
theselectedgroupMMSInumber.
RefertotheGrouplistsectionfordetailsonaddinggroupsto
yourradio.

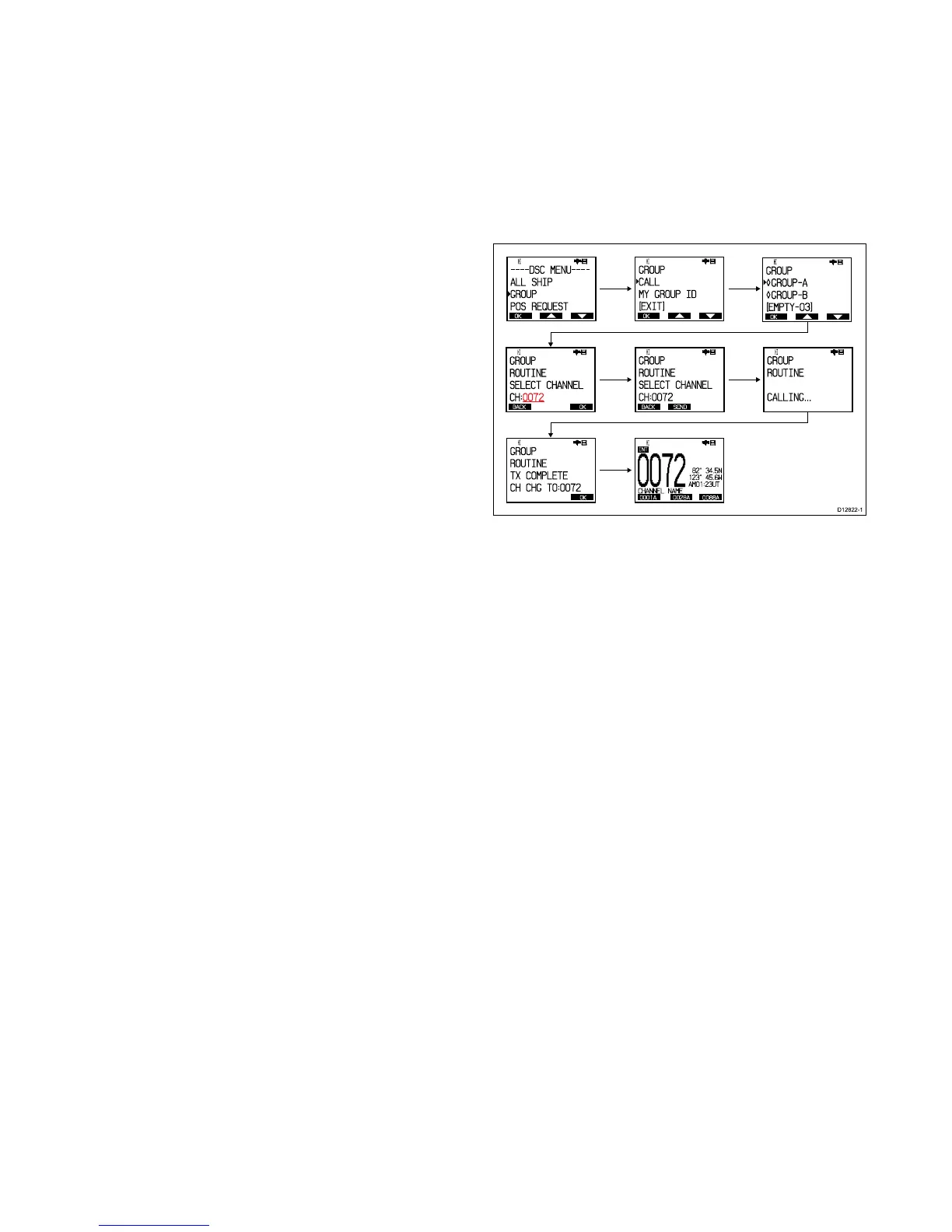

Makingagrouproutinecall
Tomakearoutinecalltoagroupofstationsusethegroupmenu.
OK
HI
- - - - DSC MENU- - - -
ALL SHIP
GROUP
POS REQUES T
OK
HI
GROUP
CALL
MY GROUP I D
[
EXIT
]
BACK OK
HI
GROUP
ROUTINE
SELECT CHA NNEL
CH:0072
OK
HI
GROUP
ROUTINE
TX COMPLETE
CH CHG TO: 0072
BACK SEND
HI
GROUP
ROUTINE
SELECT CHA NNEL
CH:0072
OK
HI
GROUP
GROUP- A
GROUP- B
[
EMPTY-0 3
]
OK
HI
GROUP
ROUTINE
CALLING...
0 0 7 2
0 0 0 1A 0 0 2 8A
0 0 8 8A
CHANNEL NAME
INT
HI
82° 34.5N
123° 45.6W
AM01:23UT
D12822-1
1.PressandholdtheDSCMenubuttonfor3seconds.
TheDSCmenuisdisplayed.
2.SelectGROUP.
3.SelectCALL.
Thegrouplistisdisplayed.
4.Selectagroupyouwanttomakeacallto.
5.UsetheChannelUpandChannelDownbuttonstoselecta
channelyouwanttouseforthecommunication.
6.SelectOK.
7.SelectSEND.
Theradionowwillnowcalltheselectedgroup.
8.WhenTXCOMPLETEisdisplayedon-screenselectOK.
9.PressandholdthePTTbutton.
10.Speakyourmessage.
11.ReleasethePTTbuttonwhenyouhavecompletedyour
message.
Receivingagroupcall
Ifyoureceiveagroupcallthedetailsaredisplayedon-screen.
1.PresstheRIGHTsoftbuttontocyclethroughtheinformation
pages.
2.SelectOKatanytimetoacceptthegroupcall,or
3.SelectCANCELrejectthecallandresumenormaloperation.
4.Ifthecallerhasrequestedanacknowledgementthenselect
SENDtosendtheacknowledgement.
Withautochannelchangeturnedontheradiowillautomatically
changetotherequestedchannelafter10seconds,otherwise
youwillberequesttoconrmthechangeofchannel.
Digitalselectivecalling(DSC)
47
