40 SportPilot and SportPilot Plus - Owner’s Handbook
4 Installing the SportPilot
Typical SeaTalk connections
CAUTION:
Protect the power supply for the SeaTalk 12 V (red) line with a
5 A fuse (or equivalent circuit breaker) fitted as close to the
SportPilot as possible.

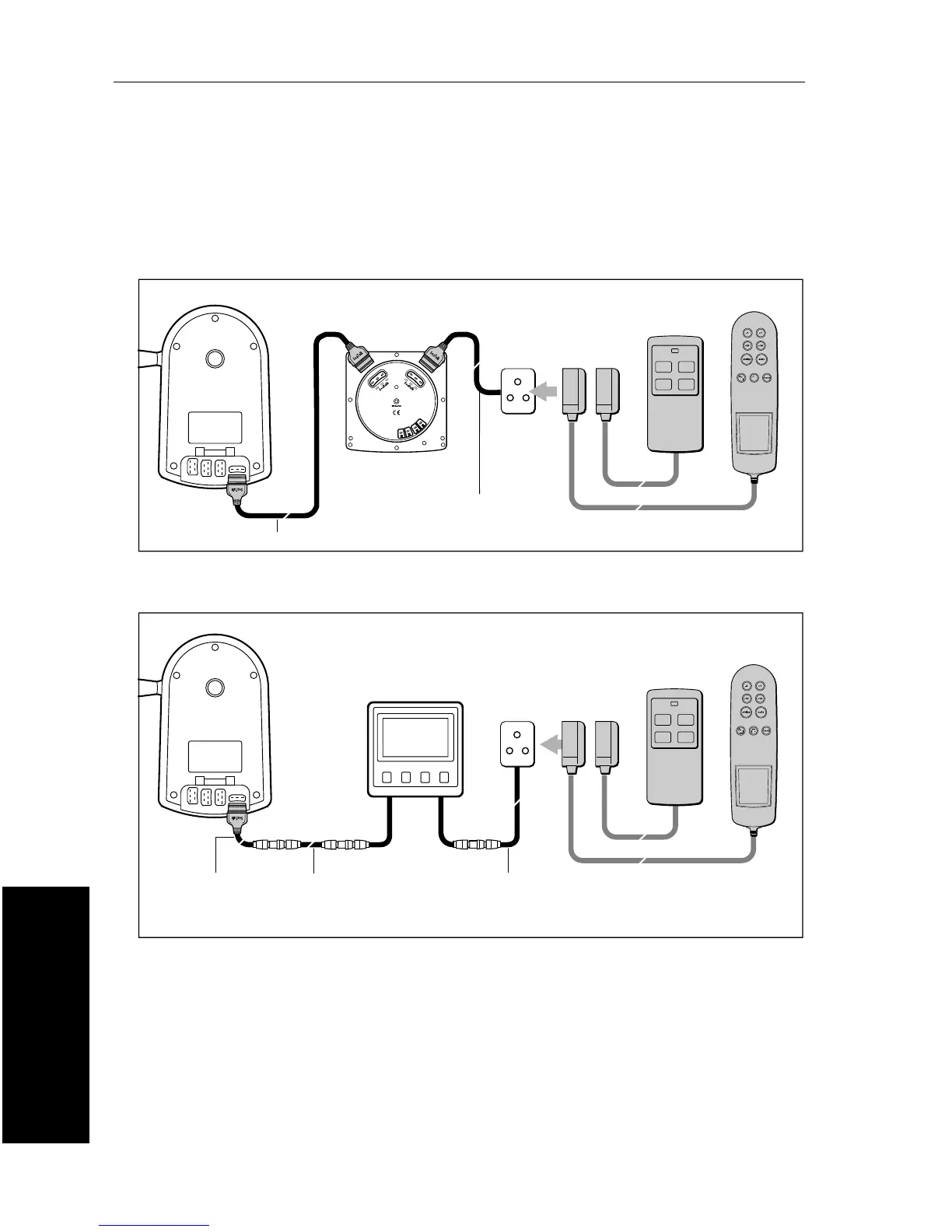

Connecting SportPilot to ST60 instrument and handheld remote
Connecting SportPilot to ST50 instrument and handheld remote
To connect just a remote to the SportPilot, either:
• use an interface cable (D229 – see page 39) and a 3-pin SeaTalk
socket and plug (deck connector), or
• use a 3-pin deck connector and the yellow and green cores of the
power cable: a positive (+) connection from the power source to
the deck connector will be required
D1524-2
Extension cable
Interface cable*
SeaTalk
socket
Z101 remote
ST600R remote
or
*If you only need to connect a remote, plug
the interface cable into the SportPilot socket
SportPilot (rear)
SeaTalk unit (rear)
D1523-2
Interface cable*
SeaTalk
socket
Z101 remote
ST600R remote
or
*If you only have a remote, use a flat plugged interface cable
and connect it directly into the SportPilot socket
SportPilot (rear)
ST50 instrument
Extension
cable
Conversion
cable
