Chapter 4: Installing the SportPilot 45
4 Installing the SportPilot

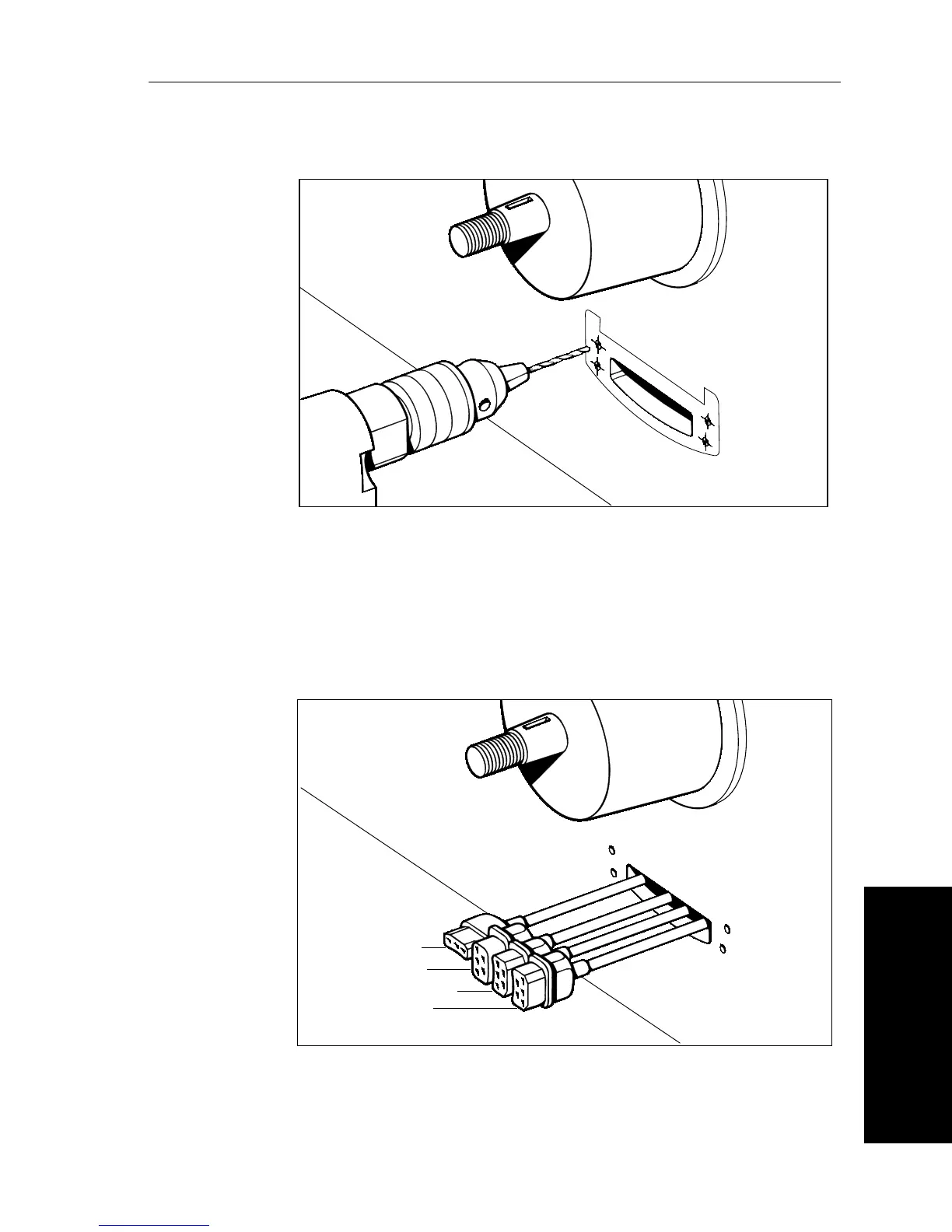

15. Drill 4 pilot holes using the drill bit (supplied) and then cut out the
shaded cable aperture.
16. Remove the template and smooth any rough edges.
Step 3 – Plug the cables into the SportPilot
1. Pass the plugged ends of the power, compass, rudder position
sensor (if fitted) and SeaTalk cables (if required) through the
aperture.
Note: Reposition the suppression ferrites so that they are located
behind the bulkhead. In certain situations you need to remove the
ferrites from the cable and re-fit them at the end of installation.
D1366-2
D1367-2
SeaTalk cable (3-core)
Power cable (5-core)
Rudder reference cable
Compass cable
Note: basic installations will only have power and compass cables
