Chapter 4: Installing the SportPilot 47
4 Installing the SportPilot

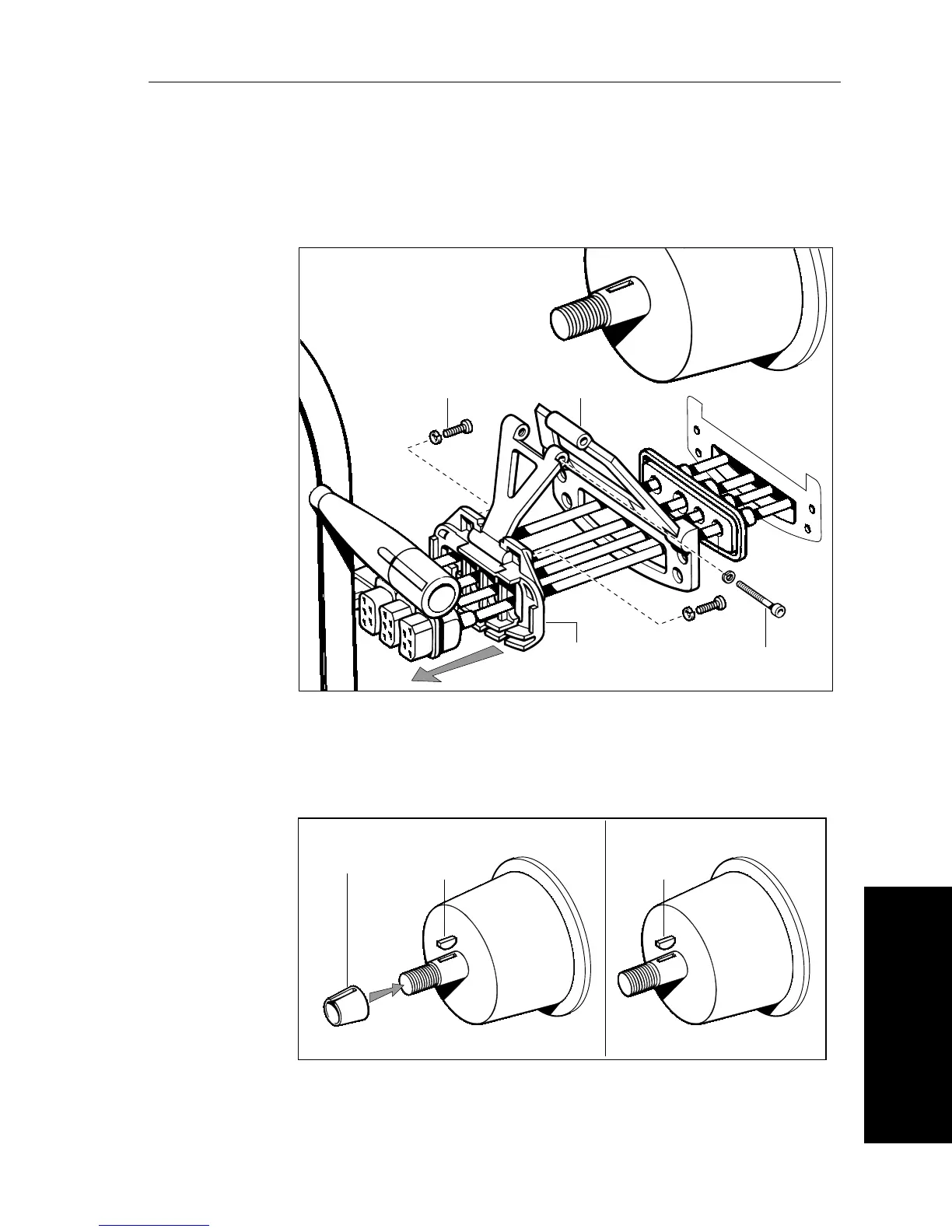

Step 4 – Assemble and secure the SportPilot
1. Assemble the free end of the torque restraint to the cable holder.
2. Fit the cable holder to the SportPilot using the washers
and screws.
3.
3
/
4
inch (19 mm) taper: Assemble the adaptor collar and the
Raymarine woodruff key to the steering shaft.
1 inch (25 mm) taper: Fit the original woodruff key to the
steering shaft.
D1370-2
Cable
holder
Cable holder
screw and washer (x2)
Torque
restraint
Torque restraint
bolt and washer
D1364-3a
Adaptor collar
Raymarine
woodruff key
Original
woodruff key
3/4 inch taper 1 inch taper
