Renishaw ATOM User Manual

40
ATOM linear encoder system
Side mount bracket
Shoulder
‘ L’ mount bracket

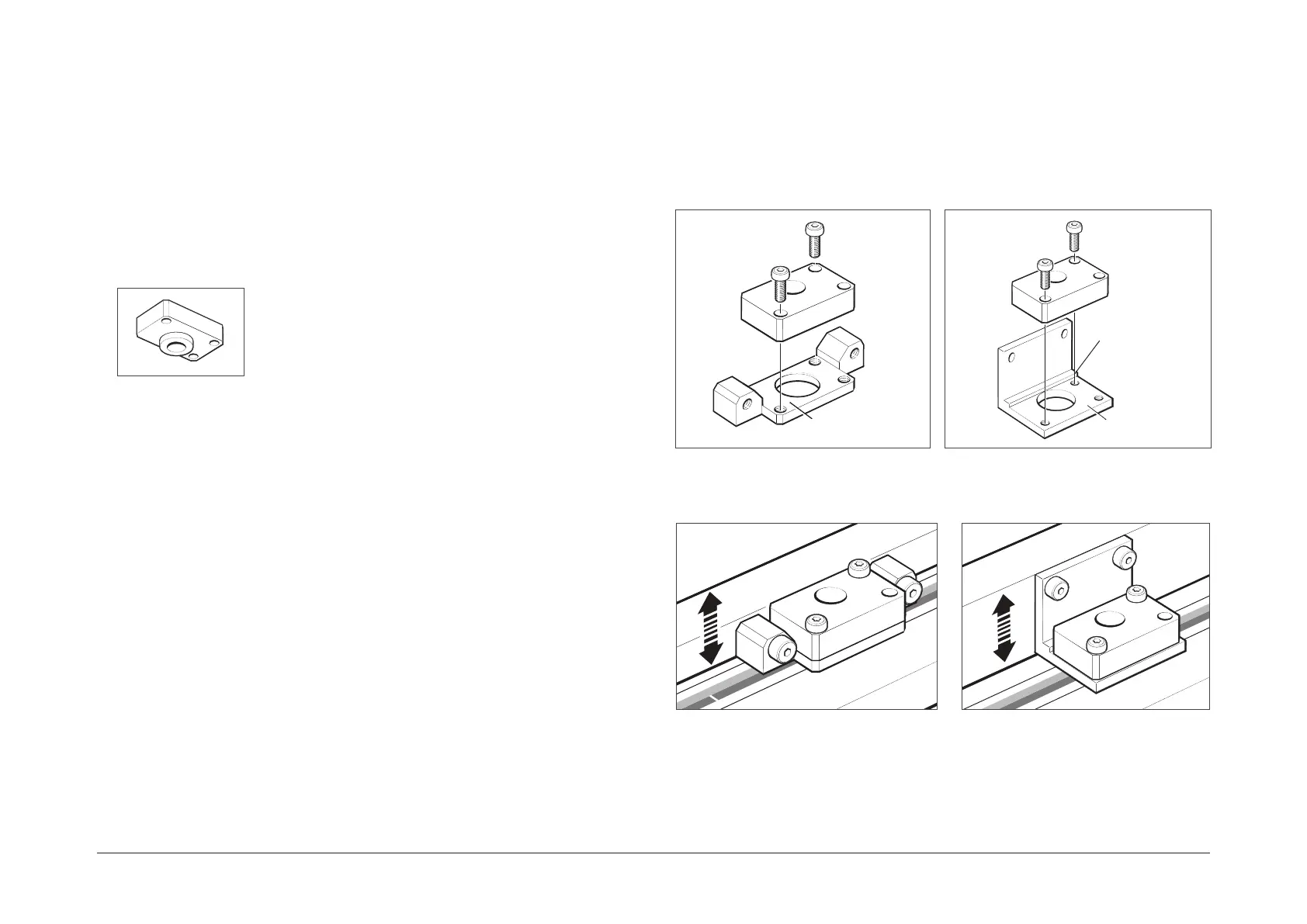

1. Mount the dummy head onto the bracket using two screws.
• Applications where the readhead mounting bracket allows adjustment of rideheight
The reusable dummy head is mounted directly onto the bracketin place of the readhead. It
has the same dimensions as the ATOM readhead with a longer ‘nose’ that is machined to
the optimum rideheight (2.5mm ±0.02mm).
Required parts:
• Dummy head (A-9401-0072)
• 2 × M2 × 6 screws
• Side mount bracket (A-9401-0103) , ‘ L ’ mount bracket (A-9402-0037) or customer designed bracket
1
• 2 × bracket mounting screws
• ATOM readhead
Dummy kit
Suitable for:
1
The bracket should have a shoulder to control readhead yaw. Contact your local Renishaw representative for more information on bracket design.
2. Loosely mount the readhead bracket onto the axis.
