Renishaw ATOM User Manual

65
www.renishaw.com
CAL button operation
Push and release (<2seconds) - Calibration (CAL) routine initiation / exit.
Push and release (>3seconds) - Automatic Gain Control (AGC) initiation / exit.
Push and hold during power ‘Off / On’ cycle - Restore factory defaults.
Refer to ‘Readhead LED diagnostics’ and ‘Ti LED diagnostics’ for LED indications.
8
15
1
8
9
16
4-40 UNC × 2
40
6 min
62
67
CAL button access hole Ø2.4
33.3
Interface set-up LED
(digital interface only)
Cover plate
R>20 Dynamic bend radius
R>10 Static bend radius

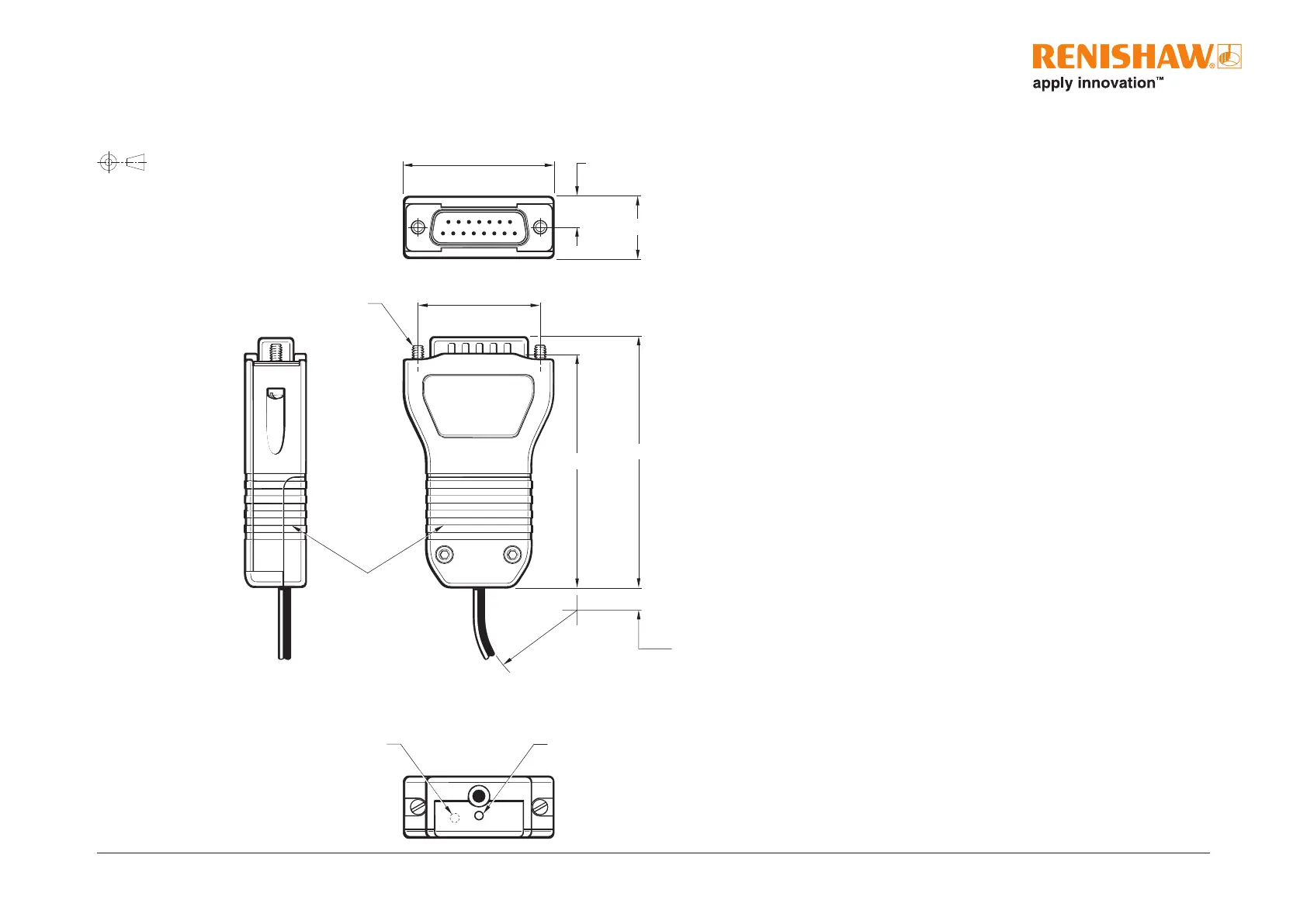

Ti interface drawing
Dimensions and tolerances in mm
