ATOM readhead

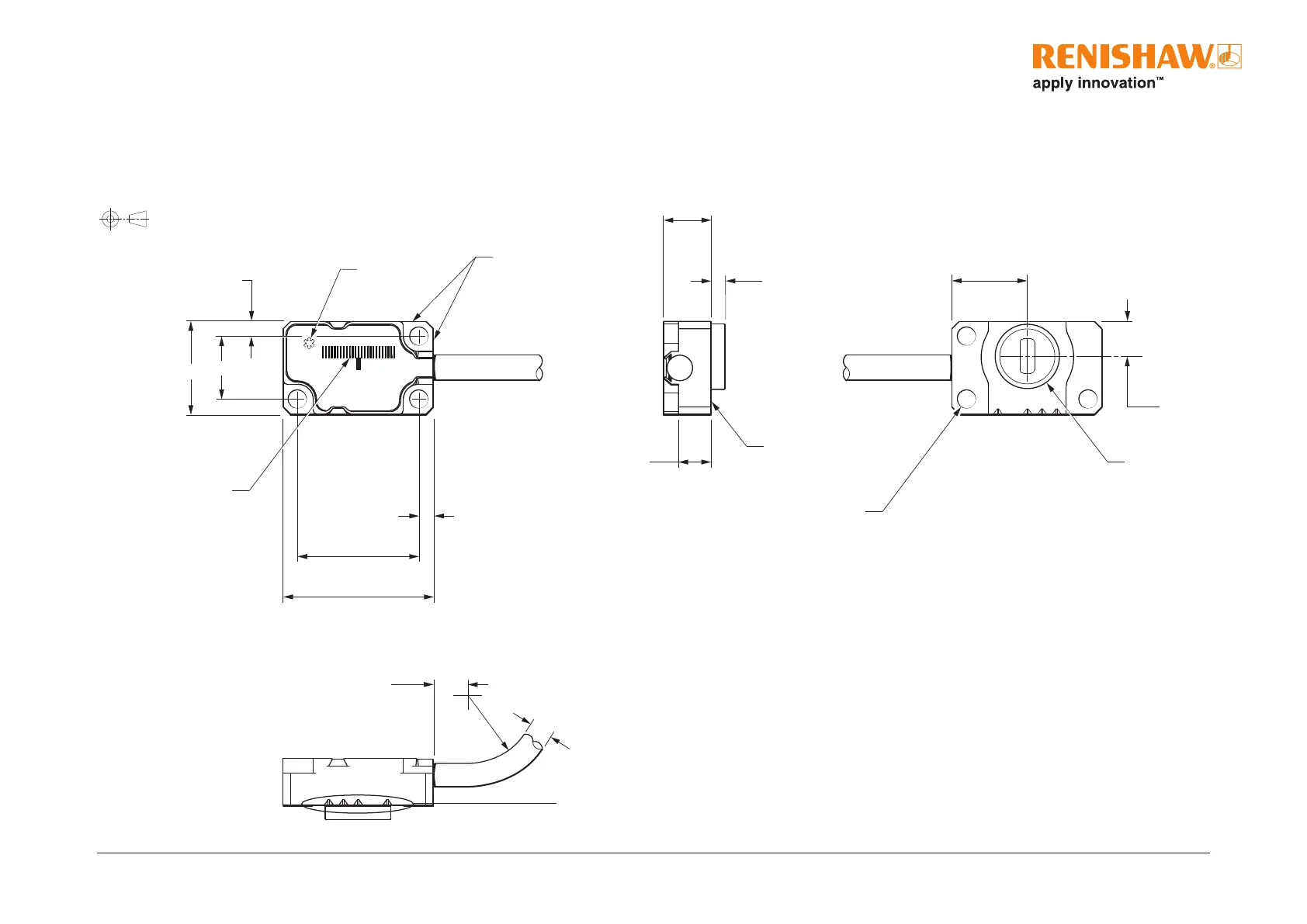

Cabled readhead dimensions
6.45
1.4 (40µm version)
1.9 (20µm version)
20.5
16.5
10.25
12.7
8.7
2
4.15
4.85
1
3mounting holes
Ø2.5min through
Ø9 max.
Set-up
LED
Mounting face
Readhead
datum faces
5 min
Ø3.5 max
R> 20 Dynamic bend radius
R> 10 Static bend radius
2
Readhead / scale
orientation
Identication marks for readhead manufacture only.
Notches will vary depending on readhead type.
For detailed installation drawings, refer to
www.renishaw.com/atomdownloads
1
Not optical centreline
Dimensions and tolerances in mm
