Reznor SCE Series User Manual

7
I-SCE (09-18) PN207697R9

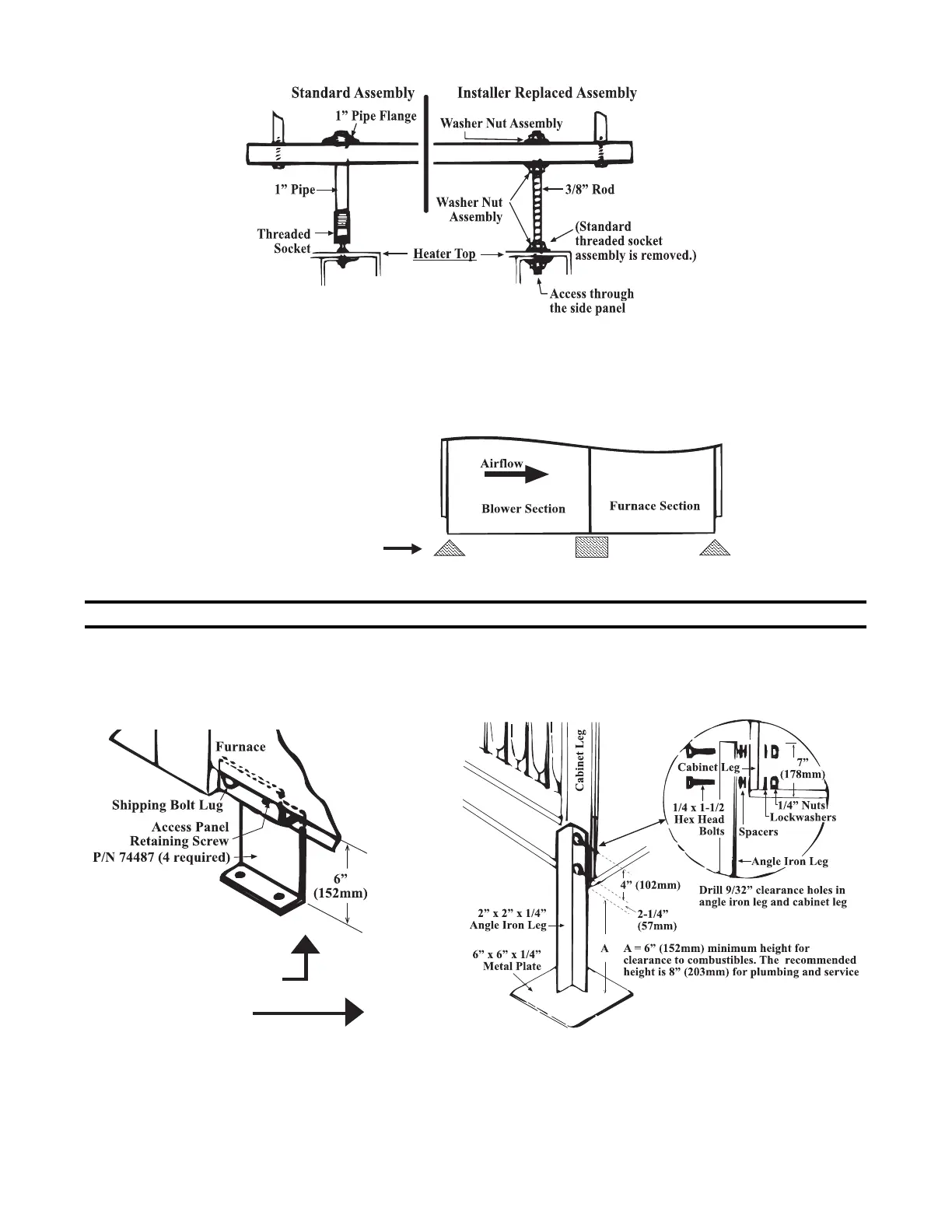

Figure 3. Suspension Methods
MOUNTING
Model SCE requires six mounting support locations—three on each side—as shown in Figure 4.
Figure 4. Support Locations
NOTE: Support is required where furnace and blower cabinets meet.
Supports (PN 74487) available from the manufacturer or field-fabricated legs, as shown in Figure 5, may be used at
the four corner support locations. Do not use this type of support at the center support locations between the furnace
and the blower section. At the center locations, a field-fabricated angle-iron brace support must extend horizontally,
jointly supporting a portion of both the furnace and the blower cabinet. All supports must be noncombustible.
Figure 5. Corner Mounting Supports
Field-supplied supports between
the blower cabinet and the furnace
must extend horizontally support-
ing both sections.
Support Locations
FIELD-FABRICATED
AVAILABLE AS A PART
