Ricoh PJ S2240 User Manual

English
45
English
User Settings
“H. Position” and
“V. Position” functions
are only supported
under Computer Signal
source.
N
o
t
e

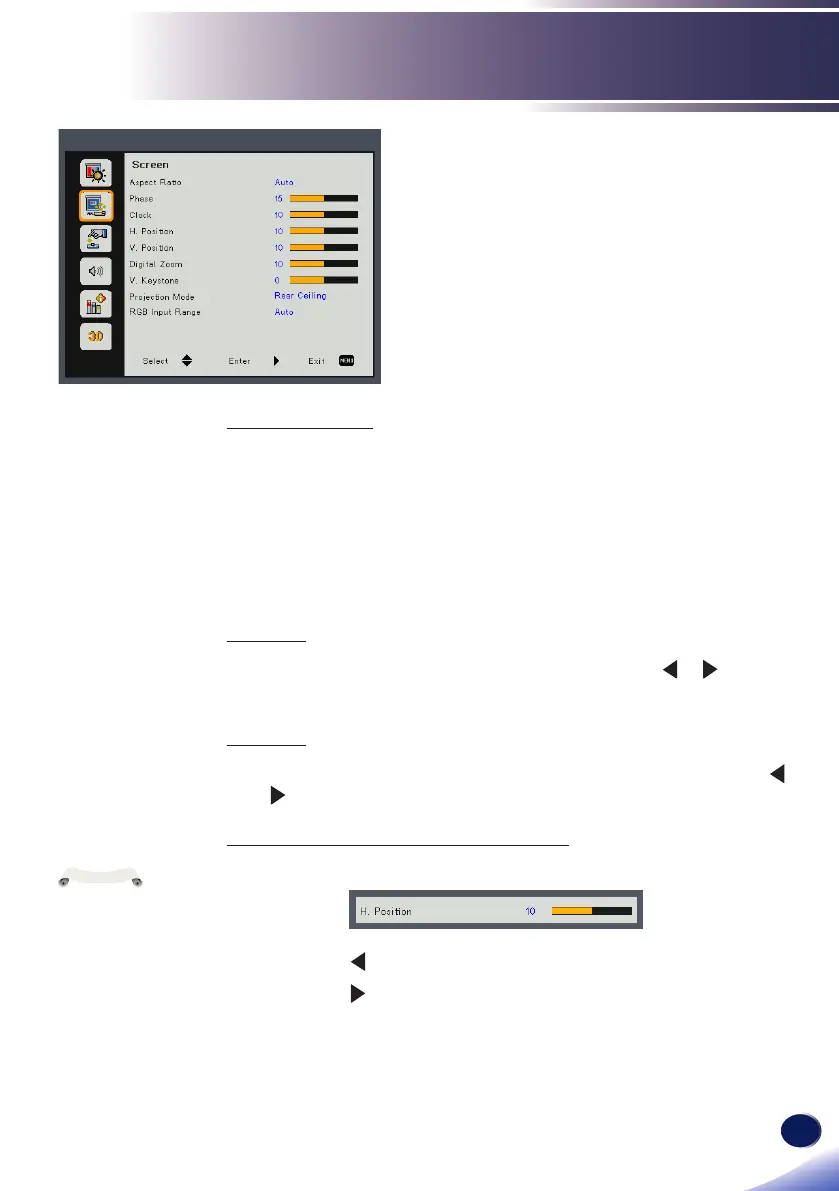

Screen
Aspect Ratio
Use this function to choose your desired aspect ratio.

Auto: Automatically selects the appropriate display format.
When input is 4:3, the image is displayed as 4:3. When input is
16:9 above, the image is displayed as 16:9.

4:3: Displays 4:3 aspect ratio.

16:9: Displays 16:9 aspect ratio.
Phase
Eliminate icker from the image displayed. Use the or key to
adjust the value.
Clock
Adjust the number of total dots in one horizontal period. Use the
or key to adjust number to match your PC image.
H. Position (Horizontal Position)
Shift the projected image position horizontally.

Press the key to move the image left.

Press the key to move the image right.

Ricoh PJ S2240 Specifications

General

Weight	2.6 kg
Zoom Ratio	1.1x
Projection System	DLP
Lamp Type	UHP
Image Size	30 - 300 inches
Lamp Life	5000 hours (Eco Mode)
Connectivity	HDMI, VGA, USB, Audio In/Out
Throw Ratio	1.95 - 2.15:1
Keystone Correction	Vertical ±30°
Output Connectors	Audio out
Noise Level	29 dB (Eco Mode)
Operating Temperature	5°C - 35°C
Storage Temperature	-10°C - 60°C
