Rigol DS6062-DEMO User Manual

RIGOL 4 To Set the Sample System
4-8 DS6000 User’s Guide

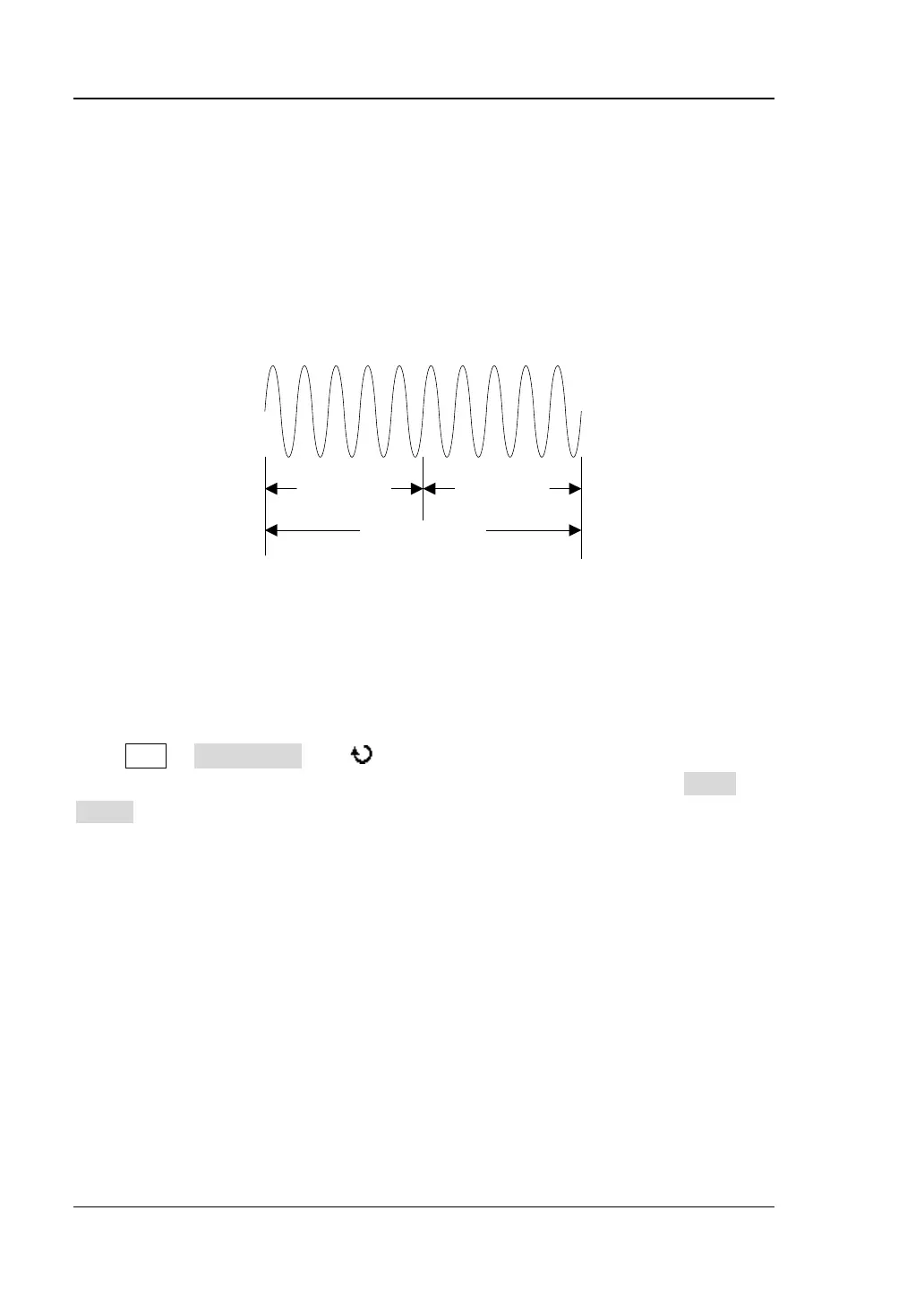

Memory Depth
Memory depth refers to the number of waveform points that the oscilloscope can
store in a single trigger sample and it reflects the storage ability of the acquisition
memory. DS6000 provides a memory depth up to 140 M points.
T
Trigger Point
Pre-sample
Delayed Sample
Memory Depth
The relationship of memory depth, sample rate and waveform length fulfills the
following equation:
Memory Depth = Sample Rate (Sa/s) × Waveform Length (s/div × div)
Press ACQ  Mem Depth, use to select the desired memory depth (the default
is auto) and then press the knob to select the option. You can also press Mem
Depth continuously to switch the memory depth.
When a single channel (CH1 or CH2, CH3 or CH4) is turned on, the memory depth
can be set to Auto, 14kPoints, 140kPoints, 1.4MPoints, 14MPoints or 140MPoints. In
"Auto" mode, the oscilloscope selects the memory depth automatically according to
the current sample rate.
When two channels are turned on (CH1 and CH2, CH3 and CH4), the memory depth
can be set to Auto, 7kPoints, 70kPoints, 700kPoints, 7MPoints and 70MPoints. In
"Auto" mode, the oscilloscope selects the memory depth automatically according to
the current sample rate.
