1 Quick Start RIGOL

DS6000 User’s Guide 1-5

To Adjust the Supporting Legs

Adjust the supporting legs properly to use them as stands to tilt the oscilloscope

upwards for stable placement of the oscilloscope as well as better operation and

observation of the display. Unfold or fold the supporting legs in the arrow directions

as shown in the figures below.

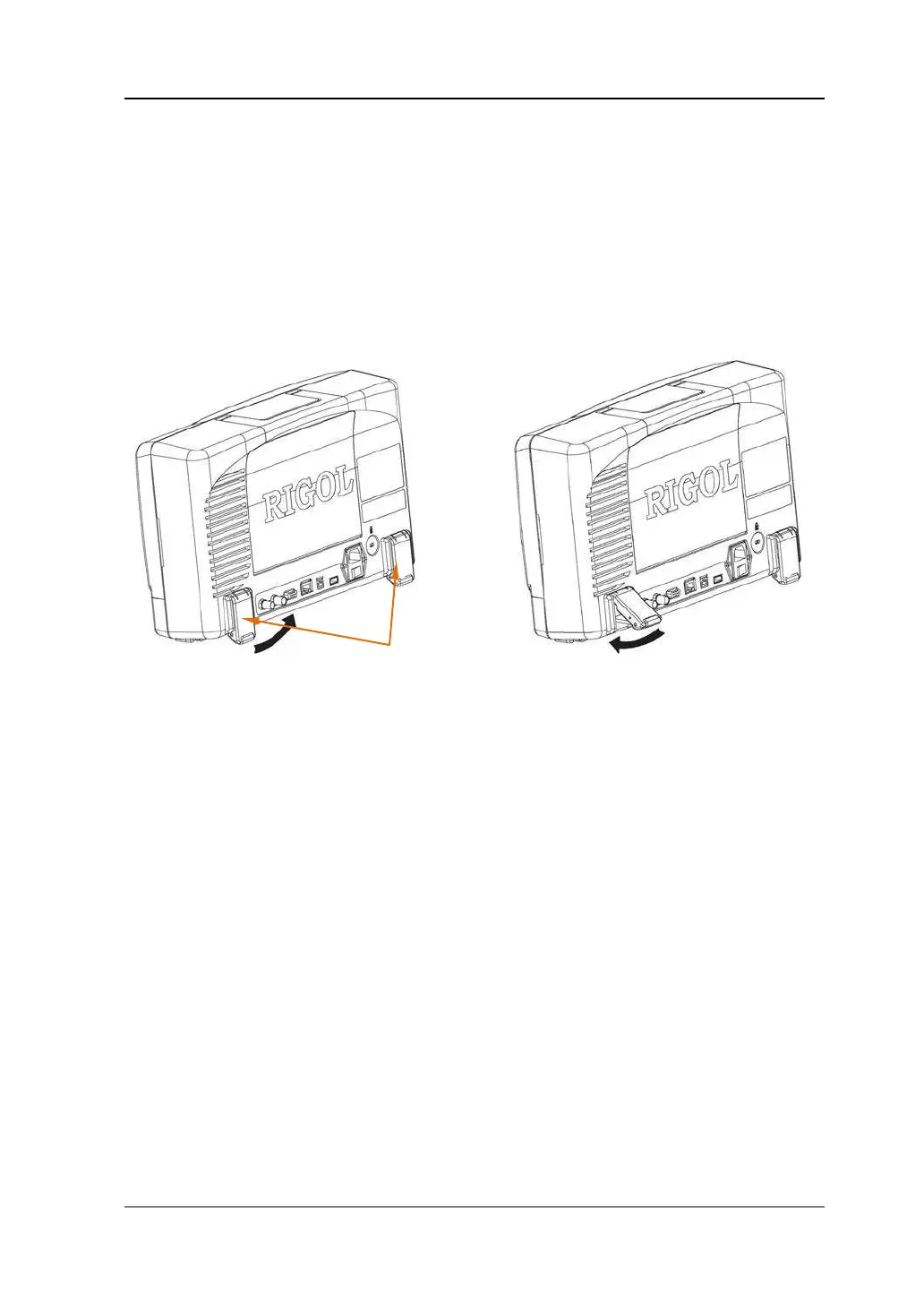

Figure 1-4 To Adjust the Supporting Legs

Supporting Legs
