Rigol DS6062-DEMO User Manual

RIGOL 2 To Set the Vertical System
2-2 DS6000 User’s Guide
To Enable the Channel

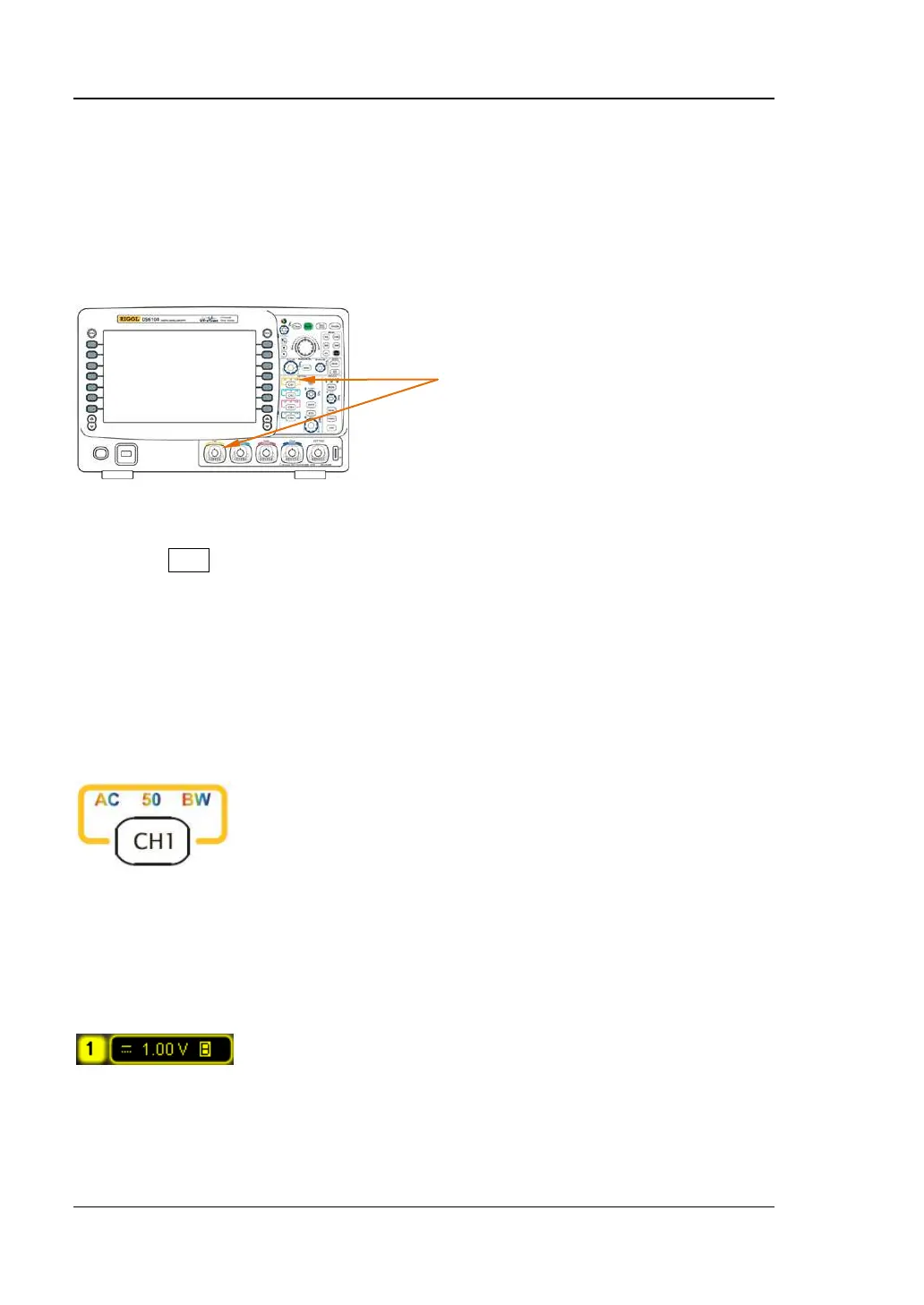

DS6000 provides four analog input channels (CH1-CH4) and each channel can be
controlled independently.
Connect a signal to the channel connector of any channel (for example, CH1) and
then press CH1 in the vertical control area (VERTICAL) on the front panel to enable
CH1. At this point:
Panel:
The backlight of this key turns on. If the corresponding function in this menu has
been turned on, the characters "AC", "50" or "BW" might also be illuminated. Note:
The on/off state of the key light of "AC", "50" or "BW" is not limited by the on/off
state of the channel.
Screen:
The channel setting menu is displayed at the right side of the screen and the channel
label at the bottom of the screen (as shown in the figure below) is highlighted. The
information displayed in the channel label is related to the current channel setting.
After the channel is turned on, modify the parameters such as the vertical scale, the
horizontal time base and the trigger mode according to the input signal to make the
waveform display easy to observe and measure.
CH1
