Rittal Liquid Cooling Package 19
5 Assembly and siting
5
ment points for the baying connectors are accessible
and are not covered by a door edge.
Proceed as follows to dismantle a server enclosure door:
 Remove the sealing bungs from the four door hinges
using an appropriate tool (e.g. screwdriver).
 Release and open the server enclosure door.
 Loosen the hinge bolts from the four door hinges by
raising them with an appropriate tool (e.g. screwdriv-
er). Pull the bolts out of the hinge pin holding fixture as
far as they will go (see fig. 16, step A).
Begin with the lowest door hinge.

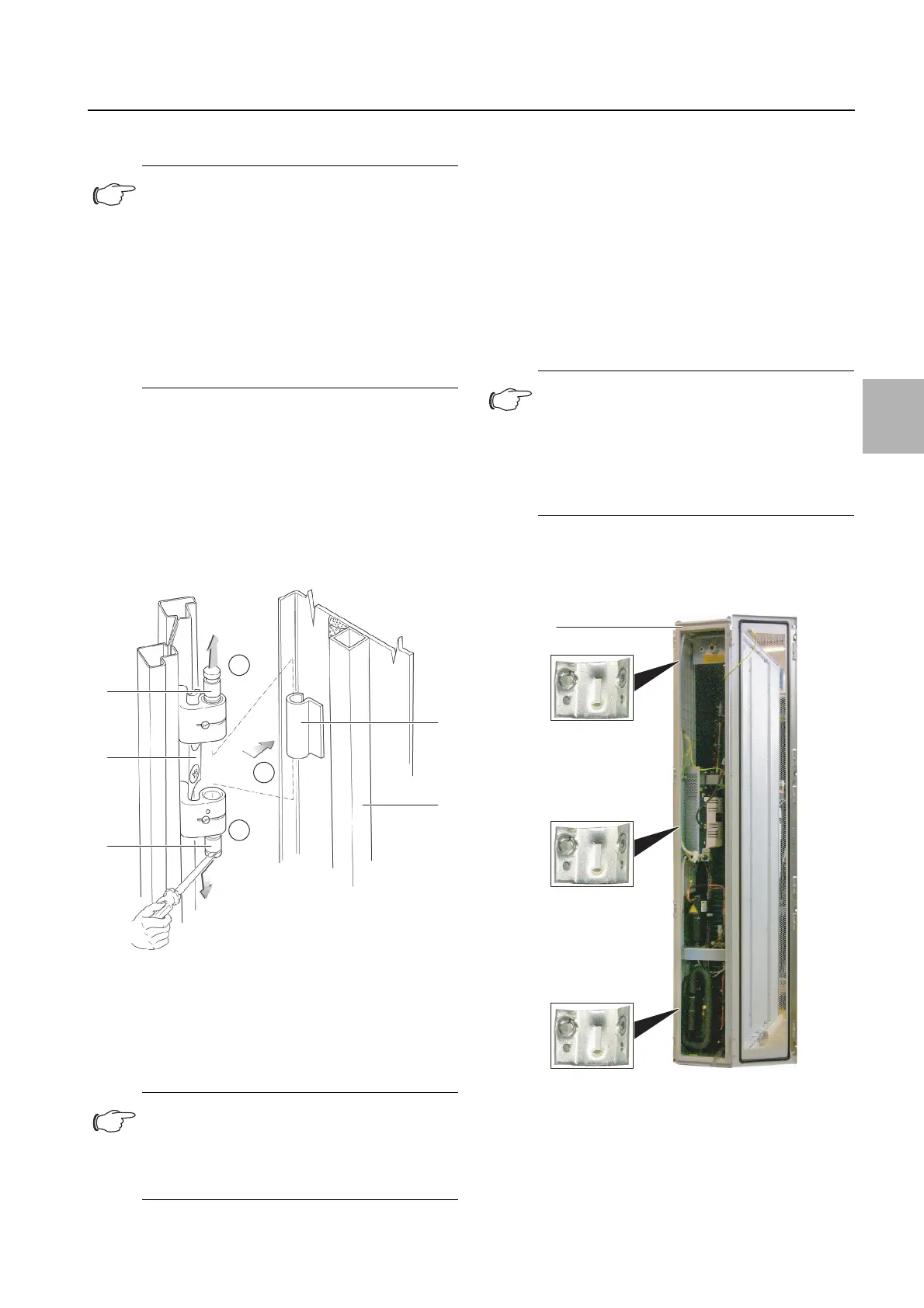

Fig. 16: Removing a door hinge
Key
1 Door hinge
2 Hinge pin holding fixture
3 Hinge joint
4 Server enclosure door

Remove the server enclosure door (fig. 16, step B).
5.2.6 Installation and baying of the LCP DX
 Position the LCP DX on the side of the server enclo-
sure to which it is to be bayed.
 Align the LCP DX with the server enclosure. Ensure
that the LCP DX is aligned horizontally and that both
enclosures are adjusted to the same height and are
vertically aligned to each other.
 Dismantle the door of the LCP DX whose hinges are
on the side on which the server enclosure is to be
bayed. Proceed as described in section 5.2.5 "Dis-
mantle the server enclosure door".
 Using the corresponding assembly screws, fasten
three baying connectors each (fig.17, item 2) onto the
attachment points provided in the mounting strips on
the front and rear of the LCP DX (fig.17, item 1).
Fig. 17: LCP Rack DX – rear
Key
1LCP RackDX
2 Baying connector
Note:
It is only necessary to dismantle a server en-
closure door when the LCP DX is to be bayed
onto a previously erected server enclosure.
Otherwise, this work is not necessary.
If the LCP DX is to be installed together with
a new server enclosure, proceed according
to the enclosure's assembly instructions and
bay the LCP DX onto the server enclosure
before assembling the server enclosure
doors.
Note:
Support the server enclosure door so that it
will not fall as the door hinge pins are loos-
ened. If necessary, work with a second per-
son.
1
2
1
3
A
A
B
4
Note:
If the LCP DX is to be bayed between two
server enclosures, both doors of the LCP DX
must be dismantled before the baying con-
nectors are installed, so that the attachment
points for the baying connectors are accessi-
ble.
1
2
2
2
