Rittal Liquid Cooling Package 53
14 SNMP card
14
14 SNMP card
To incorporate the device into a building management
system, a pCO Web card is installed in the electronics
box.
Then the LCP DX website provides all essential informa-
tion on the homepage. For example, it depicts a collec-
tive alarm. The name and location of the LCP DX may
also be configured on this website. A second operating
level allows you to set the server air injection tempera-
ture.
Logging on to the LCP DX website
 Open the browser and enter the IP address of the
LCP DX (or the pCO Web card) in the address line.
Example of a static IP address:
http://172.16.0.1
A dialogue will appear for logging onto the LCP DX.
 Enter rittal as the user and 1234 as the password.
The LCP DX website will appear.

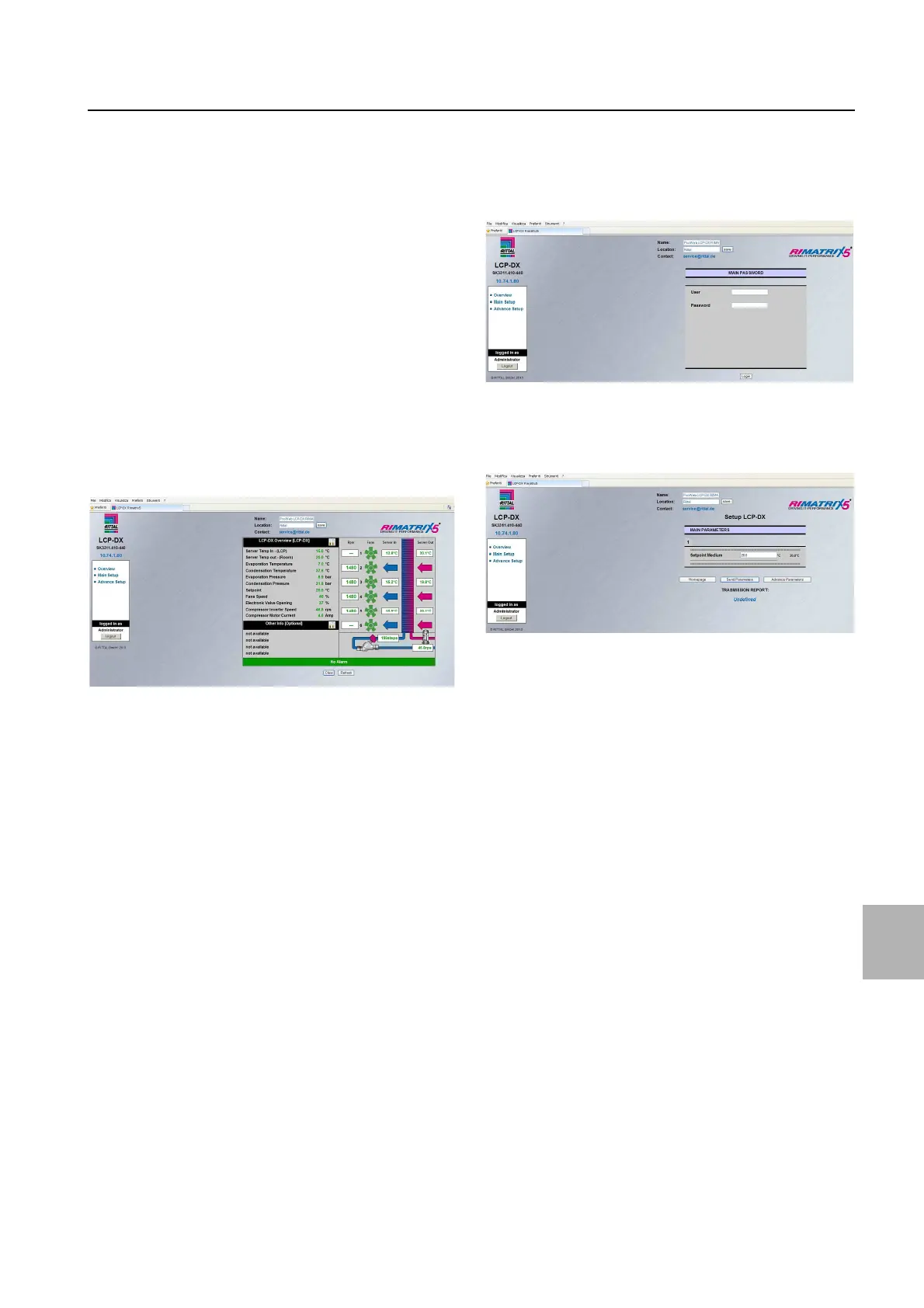

Fig. 46: LCP DX homepage
The following parameters are displayed in tabular form
on the LCP DX homepage.
– Server Temp In (average)
– Server Temp Out (average)
– Evaporation Temperature
– Condensation Temperature
– Evaporation Pressure
– Condensation Pressure
–Setpoint
– Fans Speed
– Electronic Valve Opening
– Compressor Inverter Speed
– Compressor Motor Current
The following parameters are displayed in diagrammatic
form on the LCP DX homepage.
– Setpoint speed for the fans
– Server-in temperature (top, middle, bottom)
– Server-out temperature (top, middle, bottom)
– Position of the electronic expansion valve
– Compressor speed
The 2nd menu level, Main Setup, is password-protect-
ed. The server air injection temperature of the LCP DX
may be set here.
 Click on the Main Setup entry in the left-hand section
of the website.
Alternatively, click on the stylised Allen key in the cen-
tral section of the website, under LCP-DX Overview.
A further dialogue will appear for authentication.
Fig. 47: Logging on to the 2nd menu level (Main Setup)
 Once again, enter rittal as the user and 1234 as the
password.
The following screen will appear:
Fig. 48: Setting the server air injection temperature
 Set the server air injection temperature to the required
value between 7°C and 25°C.
 Confirm your entry by clicking on the Send Parame-
ters button.
 Clicking on the Homepage button will take you back
to the LCP DX homepage.
