Rockwell Automation ARMORSTART User Manual

Rockwell Automation Publication 280E-PM001A-EN-P – August 2011 31
Chapter 4
ArmorStart Bulletin 280E: Full Voltage Starter

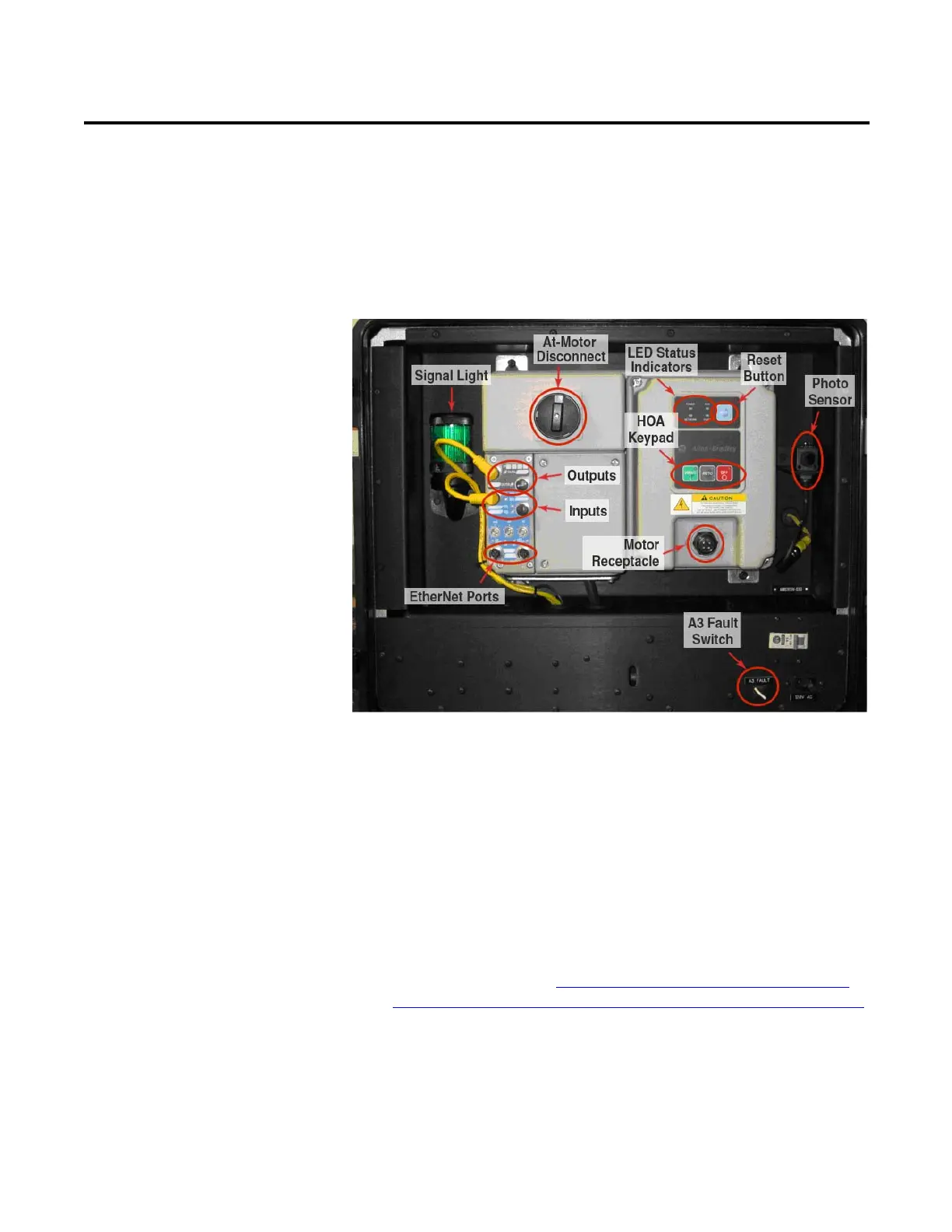

Overview of the ArmorStart Bulletin 280E Demo Unit
Control via RSLogix™ 5000
Ladder Logic
This section shows the user how to control the ArmorStart EtherNet/IP unit
using Ladder Logic in RSLogix 5000. This method of control occurs over the
EtherNet network using a Programmable Logic Controller (PLC).
Note: This section does not focus on showing the user how to use RSLogix 5000
or create Ladder Logic, instead the focus is on the concept of control over the
network.
1. Download the ArmorStart_280E_Communications_and_Control
_QS_ACD file from the Rockwell Automation Sample Code Library or
access the following link: http://samplecode.rockwellautomation.com/
idc/groups/public/documents/webassets/sc_legal_info.hcst?dID=80368.
Click I Accept, to accept the terms and conditions of using the Sample
Code Library and extract the ArmorStart_QuickStart_280E.ACD file
from the zip file. Once downloaded on your computer, double click the
ACD file to open it.
