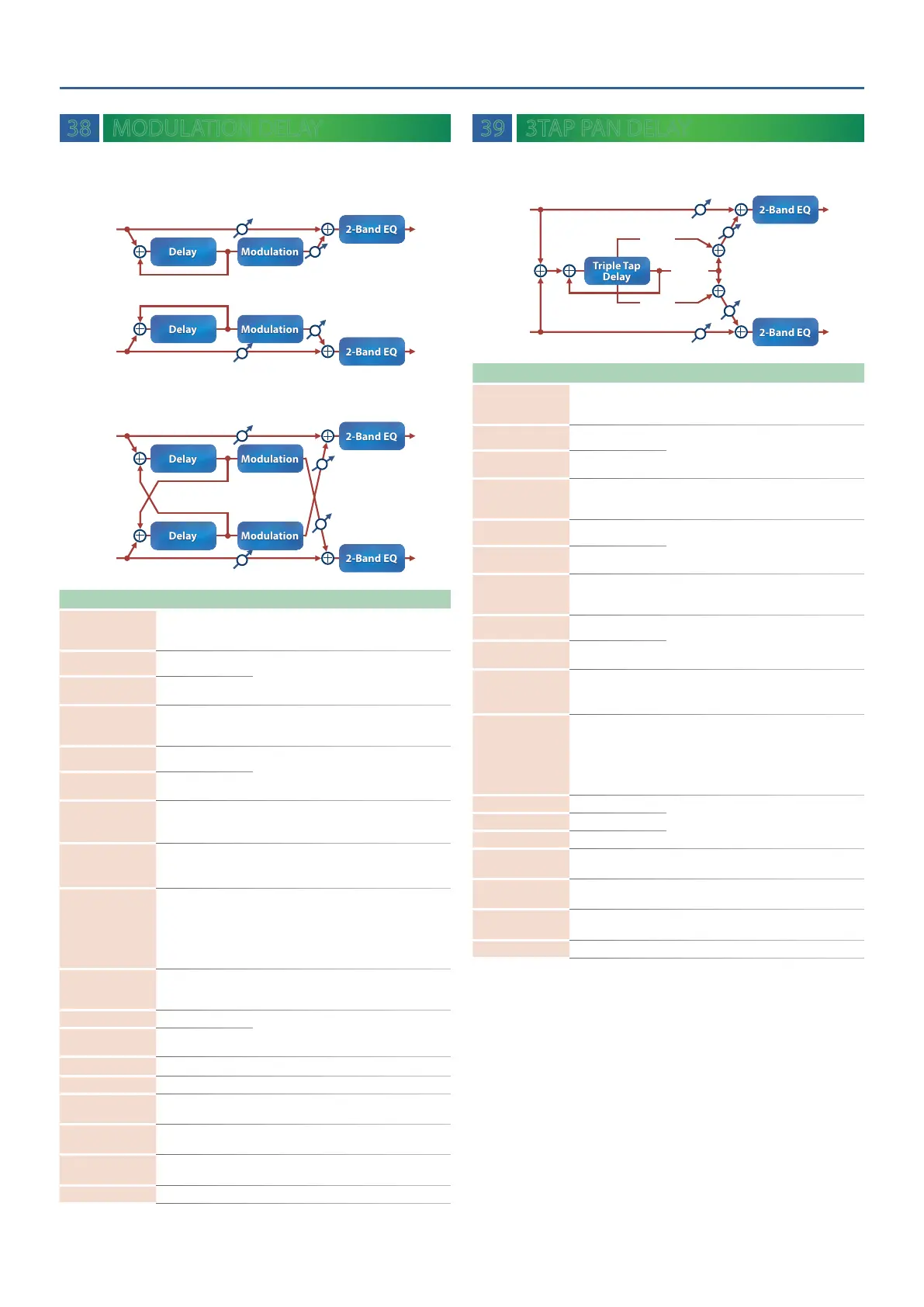

38 MODULATION DELAY
Adds modulation to the delayed sound.
When Feedback Mode is NORMAL:
R out
L out
Balance W
Balance W
Feedback
Feedback
Balance D
Balance D
L in
R in
When Feedback Mode is CROSS:
R out
L out
Balance W
Feedback
Feedback
Balance D
Balance D
L in
R in
Balance W
Parameter Value Explanation
Dly L Sync
(Delay Left
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly L Msec
(Delay Left (msec))
1–1300 [msec]
Adjusts the time until the left delay sound
is heard.
Dly L Note
(Delay Left (note))
Note
& “Note” (p. 72)
Dly R Sync (Delay
Right (sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly R Msec
(Delay Right (msec))
1–1300 [msec]
Adjusts the time until the right delay
sound is heard.
Dly R Note
(Delay Right (note))
Note
& “Note” (p. 72)
Fbk Mode
(Feedback Mode)
NORMAL, CROSS
Selects the way in which delay sound is
fed back into the effect. (See the figures
above.)
Feedback -98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the effect.
Negative (-) settings will invert the phase.
HF Damp
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000, BYPASS [Hz]
Adjusts the frequency above which
sound fed back to the effect is filtered
out. If you don’t want to filter out any
high frequencies, set this parameter to
BYPASS.
Rate Sync
(Rate (sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Rate Hz (Rate (Hz)) 0.05–10.00 [Hz]
Frequency of modulation
Rate Note
(Rate (note))
Note
& “Note” (p. 72)
Depth 0–127 Depth of modulation
Phase 0–180 [deg] Spatial spread of the sound
Low Gain -15–+15 [dB]
Amount of boost/cut for the low-
frequency range
High Gain -15–+15 [dB]
Amount of boost/cut for the high-
frequency range
Balance
D100: 0W–D0:
100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0–127 Output Level
39 3TAP PAN DELAY
Produces three delay sounds; center, left and right.
R out
L out
Balance W
Center Tap
Balance W
Feedback
Balance D
Balance D
L in
Triple Tap
Delay
Triple Tap
Delay
R in
Left Tap
Right Tap
Parameter Value Explanation
Dly L Sync
(Delay Left
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly L Msec
(Delay Left (msec))
1–2600 [msec]
Adjusts the time until the left delay sound
is heard.
Dly L Note
(Delay Left (note))
Note
& “Note” (p. 72)
Dly R Sync (Delay
Right (sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly R Msec
(Delay Right (msec))
1–2600 [msec]
Adjusts the time until the right delay
sound is heard.
Dly R Note
(Delay Right (note))
Note
& “Note” (p. 72)
Dly C Sync (Delay
Center (sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly C Msec
(Delay Center (msec))
1–2600 [msec]
Adjusts the time until the center delay
sound is heard.
Dly C Note
(Delay Center (note))
Note
& “Note” (p. 72)
C Feedback
(Center Feedback)
-98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the effect.
Negative (-) settings will invert the phase.
HF Damp
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000, BYPASS [Hz]
Adjusts the frequency above which
sound fed back to the effect is filtered
out. If you don’t want to filter out any
high frequencies, set this parameter to
BYPASS.
Left Level 0–127
Volume of each delay soundRight Level 0–127
Center Level 0–127
Low Gain -15–+15 [dB]
Amount of boost/cut for the low-
frequency range
High Gain -15–+15 [dB]
Amount of boost/cut for the high-
frequency range
Balance
D100: 0W–D0:
100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0–127 Output Level
