Roland AX-EDGE Parameter Guide

MFX/IFX Parameters
65

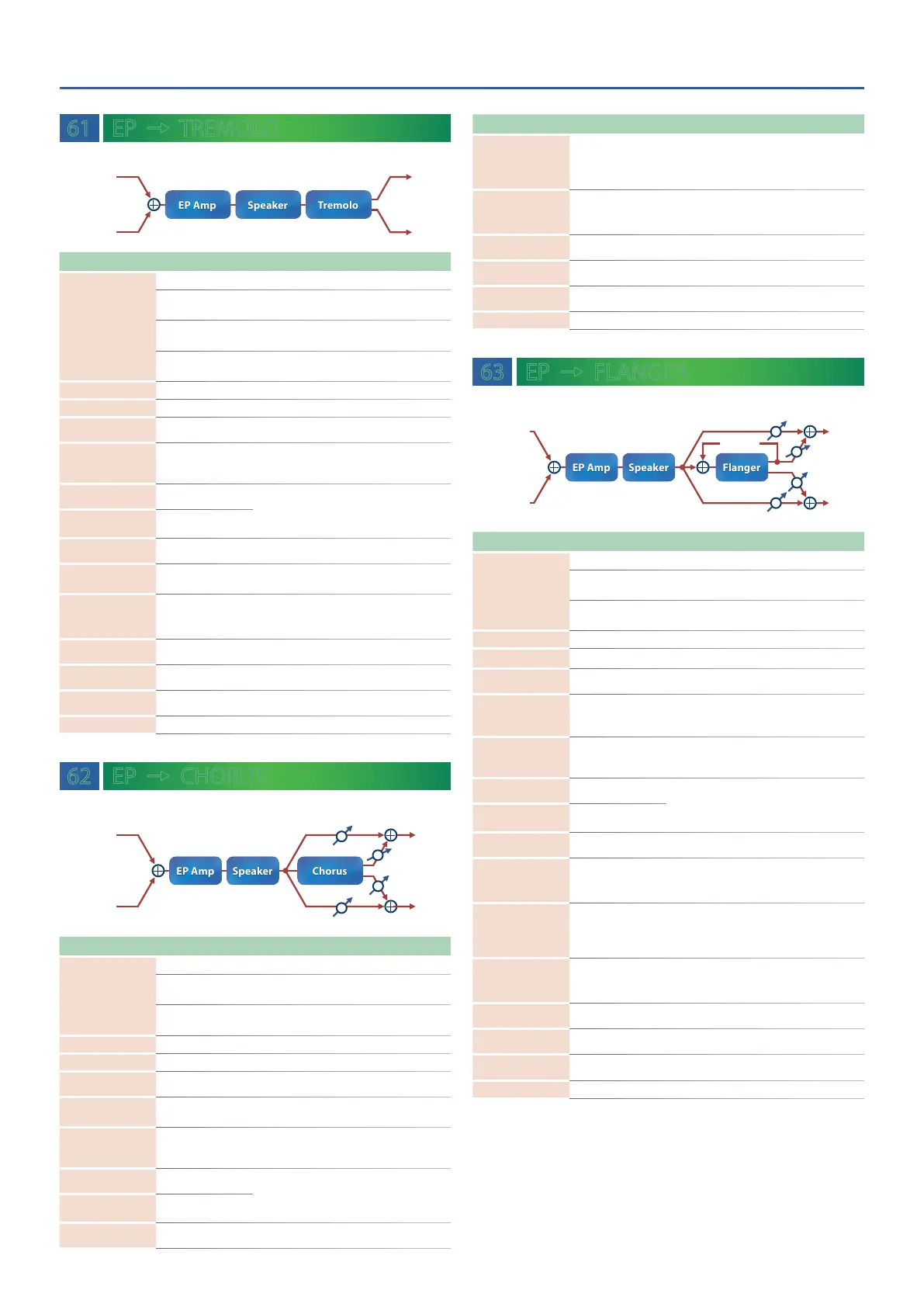

61 EP 0 TREMOLO
L in
R in
SpeakerSpeaker
EP AmpEP Amp
TremoloTremolo
L out
R out
Parameter Value Explanation
Type
Type of amp
OLDCASE
A standard electric piano sound of the
early 70s
NEWCASE
A standard electric piano sound of the
late 70s and early 80s
WURLY
A standard electric piano sound of the
60s
Bass -50–+50 Amount of low-frequency boost/cut
Treble -50–+50 Amount of high-frequency boost/cut
Trm Switch
(Tremolo Switch)
OFF, ON Tremolo on/off
Trm Sync
(Tremolo
Speed (sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Trm Hz
(Tremolo Speed (Hz))
0.05–10.00 [Hz]
Rate of the tremolo effect
Trm Note
(Tremolo Speed (note))
Note
& “Note” (p. 72)
Trm Depth
(Tremolo Depth)
0–127 Depth of the tremolo effect
Trm Duty
(Tremolo Duty)
-10–+10
Adjusts the duty cycle of the LFO
waveform used to apply tremolo.
Sp Type
(Speaker Type)
LINE, OLD, NEW,
WURLY, TWIN
Type of speaker
If LINE is selected, the sound will not be
sent through the speaker simulation.
OD Switch
(Overdrive Switch)
OFF, ON Overdrive on/off
OD Gain
(Overdrive Gain)
0–127 Overdrive input level
OD Drive
(Overdrive Drive)
0–127 Degree of distortion
Level 0–127 Output Level
62 EP 0 CHORUS
L outL in
R in
SpeakerSpeaker
EP AmpEP Amp
ChorusChorus
R out
Balance W
Balance W
Balance D
Balance D
Parameter Value Explanation
Type
Type of amp
OLDCASE
A standard electric piano sound of the
early 70s
NEWCASE
A standard electric piano sound of the
late 70s and early 80s
Bass -50–+50 Amount of low-frequency boost/cut
Treble -50–+50 Amount of high-frequency boost/cut
Cho Switch
(Chorus Switch)
OFF, ON Chorus on/off
Cho PreDly
(Chorus Pre Delay)
0.0–100 [msec]
Adjusts the delay time from the direct
sound until the chorus sound is heard.
Cho Sync
(Chorus Rate (sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Cho Hz
(Chorus Rate (Hz))
0.05–10.00 [Hz]
Frequency of modulation
Cho Note
(Chorus Rate (note))
Note
& “Note” (p. 72)
Cho Depth
(Chorus Depth)
0–127 Depth of modulation
Parameter Value Explanation
Cho Bal
(Chorus Balance)
D100: 0W–D0:
100W
Adjusts the volume balance between the
sound that is sent through the chorus (W)
and the sound that is not sent through
the chorus (D).
Sp Type
(Speaker Type)
LINE, OLD, NEW,
WURLY, TWIN
Type of speaker
If LINE is selected, the sound will not be
sent through the speaker simulation.
OD Switch
(Overdrive Switch)
OFF, ON Overdrive on/off
OD Gain
(Overdrive Gain)
0–127 Overdrive input level
OD Drive
(Overdrive Drive)
0–127 Degree of distortion
Level 0–127 Output Level
63 EP 0 FLANGER
L out
R out
FlangerFlanger
Balance W
Feedback
Balance W
Balance D
Balance D
EP AmpEP Amp
SpeakerSpeaker
L in
R in
Parameter Value Explanation
Type
Type of amp
OLDCASE
A standard electric piano sound of the
early 70s
NEWCASE
A standard electric piano sound of the
late 70s and early 80s
Bass -50–+50 Amount of low-frequency boost/cut
Treble -50–+50 Amount of high-frequency boost/cut
Flg Switch
(Flanger Switch)
OFF, ON Flanger on/off
Flg PreDly
(Flanger Pre Delay)
0.0–100 [msec]
Adjusts the delay time from when the
direct sound begins until the flanger
sound is heard.
Flg Sync
(Flanger Rate
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Flg Hz
(Flanger Rate (Hz))
0.05–10.00 [Hz]
Frequency of modulation
Flg Note
(Flanger Rate (note))
Note
& “Note” (p. 72)
Flg Depth
(Flanger Depth)
0–127 Depth of modulation
Flg Fbk
(Flanger Feedback)
-98–+98 [%]
Adjusts the proportion of the flanger
sound that is fed back into the effect.
Negative (-) settings will invert the phase.
Flg Bal
(Flanger Balance)
D100: 0W–D0:
100W
Adjusts the volume balance between the
sound that is sent through the flanger
(W) and the sound that is not sent
through the flanger (D).
Sp Type
(Speaker Type)
LINE, OLD, NEW,
WURLY, TWIN
Type of speaker
If LINE is selected, the sound will not be
sent through the speaker simulation.
OD Switch
(Overdrive Switch)
OFF, ON Overdrive on/off
OD Gain
(Overdrive Gain)
0–127 Overdrive input level
OD Drive
(Overdrive Drive)
0–127 Degree of distortion
Level 0–127 Output Level
