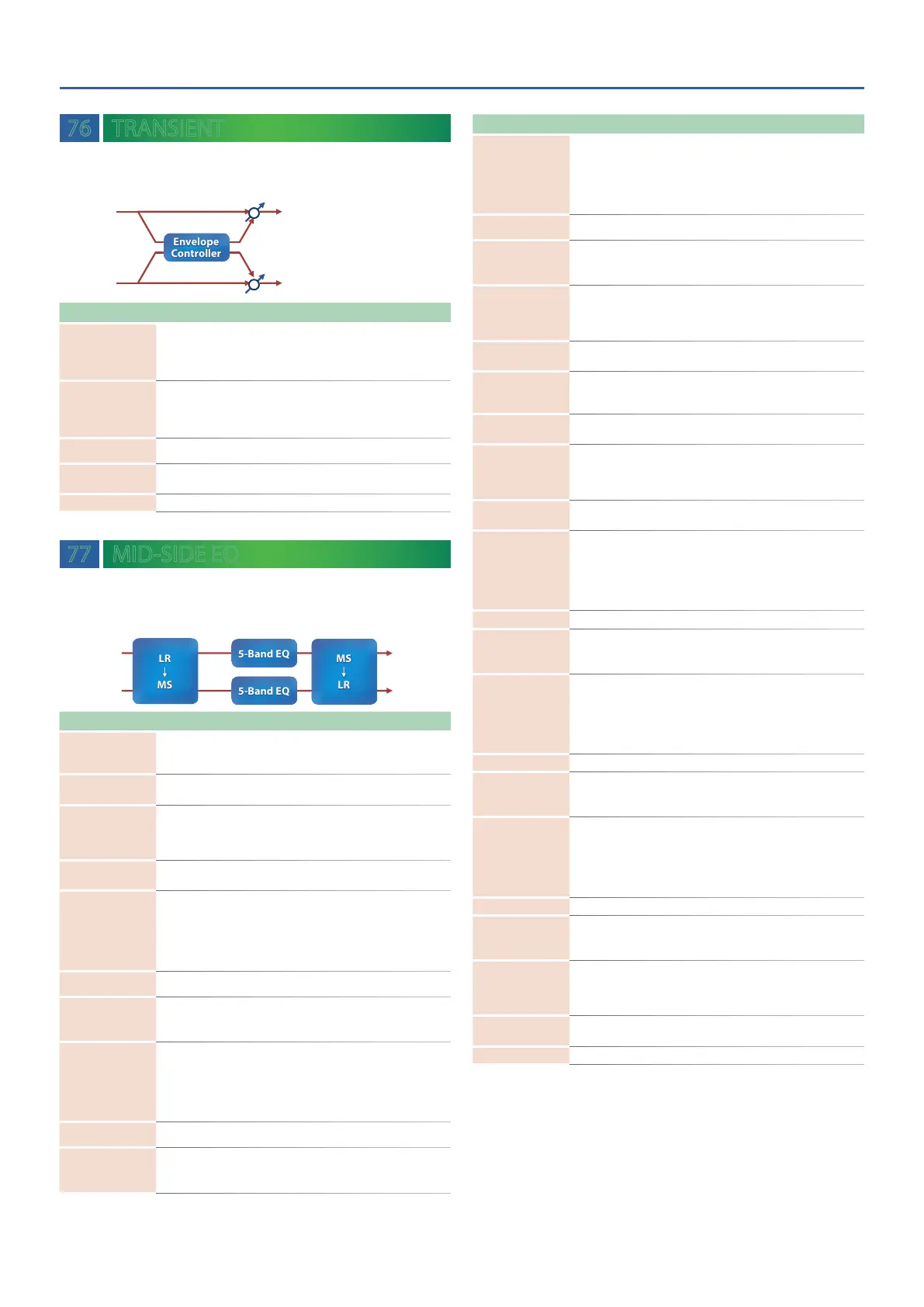

Roland AX-EDGE Parameter Guide

MFX/IFX Parameters
70
76 TRANSIENT
This effect lets you control the way in which the sound attacks and
decays.
L outL in
R in
Envelope
Controller
Envelope
Controller
R out
Parameter Value Explanation
Attack -50–+50
Character of the attack.
Higher values make the attack more
aggressive; lower values make the attack
milder.
Release -50–+50
Character of the decay.
Higher values make the sound linger;
lower values make the sound cutoff
quickly.
Out Gain
(Output Gain)
-24–+12 [dB] Output gain
Sens
(Sense) LOW, MID, HIGH
Quickness with which the attack is
detected
Level 0–127 Output Level
77 MID-SIDE EQ
This effect allows the left/right signals that have similar phase to be
tonally adjusted in a different way than the left/right signals that
have different phase.
L in L out
R outR in
LR
/
MS
LR
/
MS
MS
/
LR
MS
/
LR
5-Band EQ5-Band EQ
5-Band EQ5-Band EQ
Mid
Side
Parameter Value Explanation
M EQ Switch OFF, ON
Switches whether to apply tonal
adjustment to left/right input signals
whose phase is similar (in phase).
M In G
(M Input Gain) -12.00–+12.00 [dB]
Volume of left/right input signals whose
phase is similar (in phase)
M Low F
(M Low Frequency)
20, 25, 31, 40, 50,
63, 80, 100, 125,
160, 200, 250, 315,
400 [Hz]
Frequency of the low range
M Low G
(M Low Gain) -12.00–+12.00 [dB]
Amount of boost/cut for the low-
frequency range
M Mid1 F
(M Mid1 Frequency)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000 [Hz]
Frequency of the middle range 1
M Mid1G
(M Mid1 Gain)
-12.00–+12.00 [dB] Gain of the middle range 1
M Mid1 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 1
Set a higher value for Q to narrow the
range to be affected.
M Mid2 F
(M Mid2 Frequency)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000 [Hz]
Frequency of the middle range 2
M Mid2G
(M Mid2 Gain)
-12.00–+12.00 [dB] Gain of the middle range 2
M Mid2 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 2
Set a higher value for Q to narrow the
range to be affected.
Parameter Value Explanation
M Mid3 F
(M Mid3 Frequency)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000 [Hz]
Frequency of the middle range 3
M Mid3G
(M Mid3 Gain)
-12.00–+12.00 [dB] Gain of the middle range 3
M Mid3 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 3
Set a higher value for Q to narrow the
range to be affected.
M High F
(M High Frequency)
2000, 2500, 3150,
4000, 5000, 6300,
8000, 10000,
12500, 16000 [Hz]
Frequency of the high range
M HighG
(M High Gain) -12.00–+12.00 [dB]
Amount of boost/cut for the high-
frequency range
S EQ Switch OFF, ON
Switches whether to apply tonal
adjustment to left/right input signals
whose phase is distant (opposite phase).
S In G
(S Input Gain) -12.00–+12.00 [dB]
Volume of left/right signals whose phase
is distant (opposite phase)
S Low F
(S Low Frequency)
20, 25, 31, 40, 50,
63, 80, 100, 125,
160, 200, 250, 315,
400 [Hz]
Frequency of the low range
S Low G
(S Low Gain) -12.00–+12.00 [dB]
Amount of boost/cut for the low-
frequency range
S Mid1 F
(S Mid1 Frequency)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000 [Hz]
Frequency of the middle range 1
S Mid1G
(S Mid1 Gain) -12.00–+12.00 [dB] Gain of the middle range 1
S Mid1 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 1
Set a higher value for Q to narrow the
range to be affected.
S Mid2 F
(S Mid2 Frequency)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000 [Hz]
Frequency of the middle range 2
S Mid2G
(S Mid2 Gain) -12.00–+12.00 [dB] Gain of the middle range 2
S Mid2 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 2
Set a higher value for Q to narrow the
range to be affected.
S Mid3 F
(S Mid3 Frequency)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000 [Hz]
Frequency of the middle range 3
S Mid3G
(S Mid3 Gain) -12.00–+12.00 [dB] Gain of the middle range 3
S Mid3 Q 0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 3
Set a higher value for Q to narrow the
range to be affected.
S High F
(S High Frequency)
2000, 2500, 3150,
4000, 5000, 6300,
8000, 10000,
12500, 16000 [Hz]
Frequency of the high range
S HighG
(S High Gain) -12.00–+12.00 [dB]
Amount of boost/cut for the high-
frequency range
Level 0–127 Output Level
