Roland AX-EDGE Parameter Guide

MFX/IFX Parameters
59

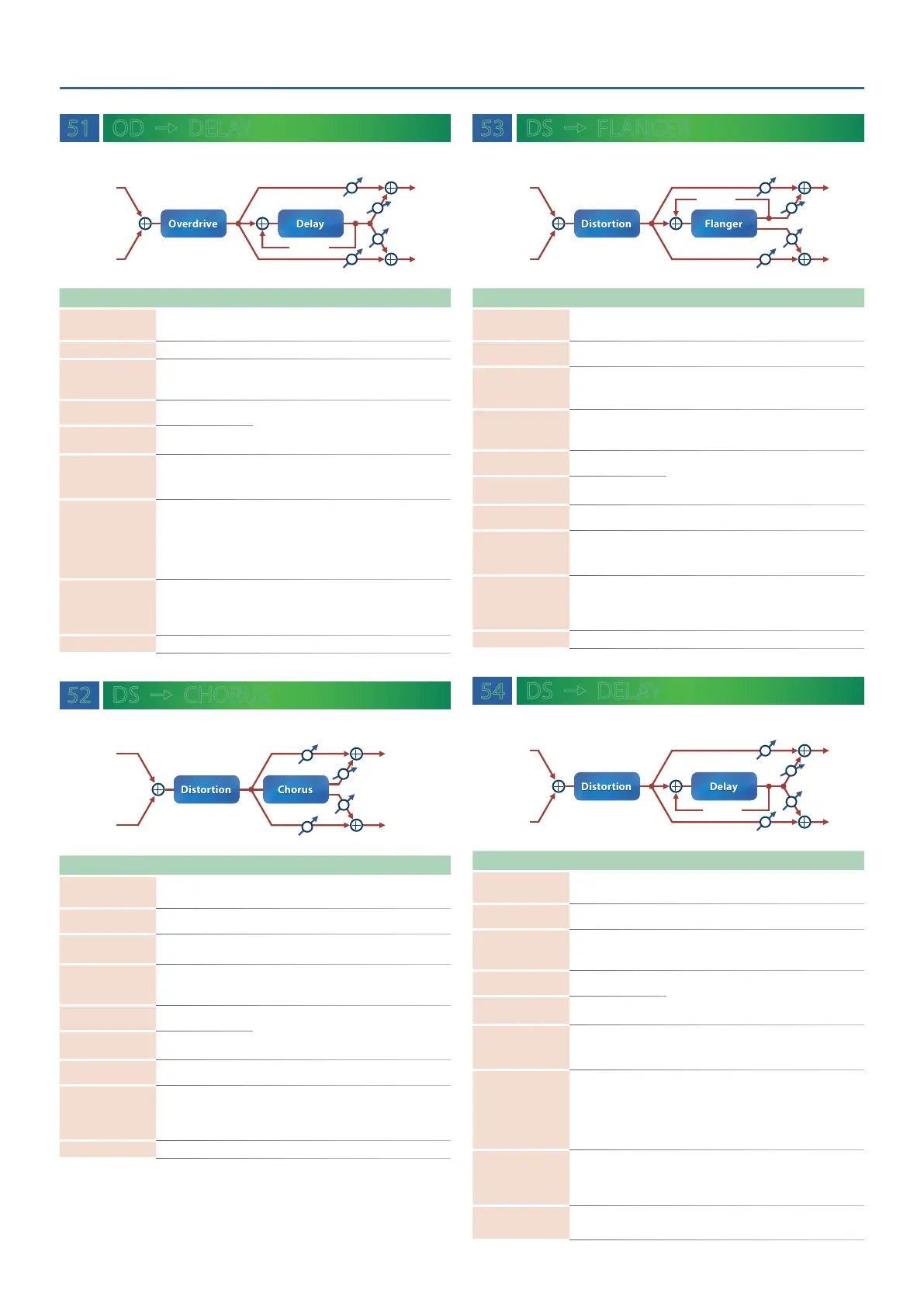

51 OD 0 DELAY
L out
R out
DelayDelay
Balance W
Feedback
Balance W
Balance D
Balance D
OverdriveOverdrive
L in
R in
Parameter Value Explanation
OD Drive
(Overdrive Drive)
0–127
Degree of distortion
Also changes the volume.
OD Pan
(Overdrive Pan) L64–63R Stereo location of the overdrive sound
Dly Sync
(Delay Time
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly Msec
(Delay Time (msec))
1–2600 [msec]
Adjusts the delay time from the direct
sound until the delay sound is heard.
Dly Note
(Delay Time (note))
Note
& “Note” (p. 72)
Dly Fbk
(Delay Feedback)
-98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the effect.
Negative (-) settings will invert the phase.
Dly HF
(Delay HF Damp)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000, BYPASS [Hz]
Adjusts the frequency above which sound
fed back to the effect will be cut. If you do
not want to cut the high frequencies, set
this parameter to BYPASS.
Dly Bal
(Delay Balance)
D100: 0W–D0:
100W
Adjusts the volume balance between the
sound that is sent through the delay (W)
and the sound that is not sent through
the delay (D).
Level 0–127 Output Level
52 DS 0 CHORUS
L in
R in
DistortionDistortion
ChorusChorus
L out
R out
Balance W
Balance W
Balance D
Balance D
Parameter Value Explanation
Dist Drive
(Distortion Drive)
0–127
Degree of distortion
Also changes the volume.
Dist Pan
(Distortion Pan)
L64–63R Stereo location of the overdrive sound
Cho PreDly
(Chorus Pre Delay)
0.0–100 [msec]
Adjusts the delay time from the direct
sound until the chorus sound is heard.
Cho Sync
(Chorus Rate
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Cho Hz
(Chorus Rate (Hz))
0.05–10.00 [Hz]
Frequency of modulation
Cho Note
(Chorus Rate (note))
Note
& “Note” (p. 72)
Cho Depth
(Chorus Depth)
0–127 Depth of modulation
Cho Bal
(Chorus Balance)
D100: 0W–D0:
100W
Adjusts the volume balance between the
sound that is sent through the chorus (W)
and the sound that is not sent through
the chorus (D).
Level 0–127 Output Level
53 DS 0 FLANGER
L out
R out
FlangerFlanger
Balance W
Feedback
Balance W
Balance D
Balance D
DistortionDistortion
L in
R in
Parameter Value Explanation
Dist Drive
(Distortion Drive)
0–127
Degree of distortion
Also changes the volume.
Dist Pan
(Distortion Pan)
L64–63R Stereo location of the overdrive sound
Flg PreDly
(Flanger Pre Delay)
0.0–100 [msec]
Adjusts the delay time from when the
direct sound begins until the flanger
sound is heard.
Flg Sync
(Flanger Rate
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Flg Hz
(Flanger Rate (Hz))
0.05–10.00 [Hz]
Frequency of modulation
Flg Note
(Flanger Rate (note))
Note
& “Note” (p. 72)
Flg Depth
(Flanger Depth)
0–127 Depth of modulation
Flg Fbk
(Flanger Feedback)
-98–+98 [%]
Adjusts the proportion of the flanger
sound that is fed back into the effect.
Negative (-) settings will invert the phase.
Flg Bal
(Flanger Balance)
D100: 0W–D0:
100W
Adjusts the volume balance between the
sound that is sent through the flanger
(W) and the sound that is not sent
through the flanger (D).
Level 0–127 Output Level
54 DS 0 DELAY
L out
R out
DelayDelay
Balance W
Feedback
Balance W
Balance D
Balance D
DistortionDistortion
L in
R in
Parameter Value Explanation
Dist Drive
(Distortion Drive)
0–127
Degree of distortion
Also changes the volume.
Dist Pan
(Distortion Pan)
L64–63R Stereo location of the overdrive sound
Dly Sync
(Delay Time
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly Msec
(Delay Time (msec))
1–2600 [msec]
Adjusts the delay time from the direct
sound until the delay sound is heard.
Dly Note
(Delay Time (note))
Note
& “Note” (p. 72)
Dly Fbk
(Delay Feedback)
-98–+98 [%]
Adjusts the proportion of the delay sound
that is fed back into the effect.
Negative (-) settings will invert the phase.
Dly HF
(Delay HF Damp)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000, BYPASS [Hz]
Adjusts the frequency above which sound
fed back to the effect will be cut. If you do
not want to cut the high frequencies, set
this parameter to BYPASS.
Dly Bal
(Delay Balance)
D100: 0W–D0:
100W
Adjusts the volume balance between the
sound that is sent through the delay (W)
and the sound that is not sent through
the delay (D).
Level 0–127 Output Level
