10 x Technical data
127
FA ROTEX HeatPumpSolarUnit - Part 2 - 05/2009
10.4 Circuit diagrams
10.4.1 Booster Heater (EHS)

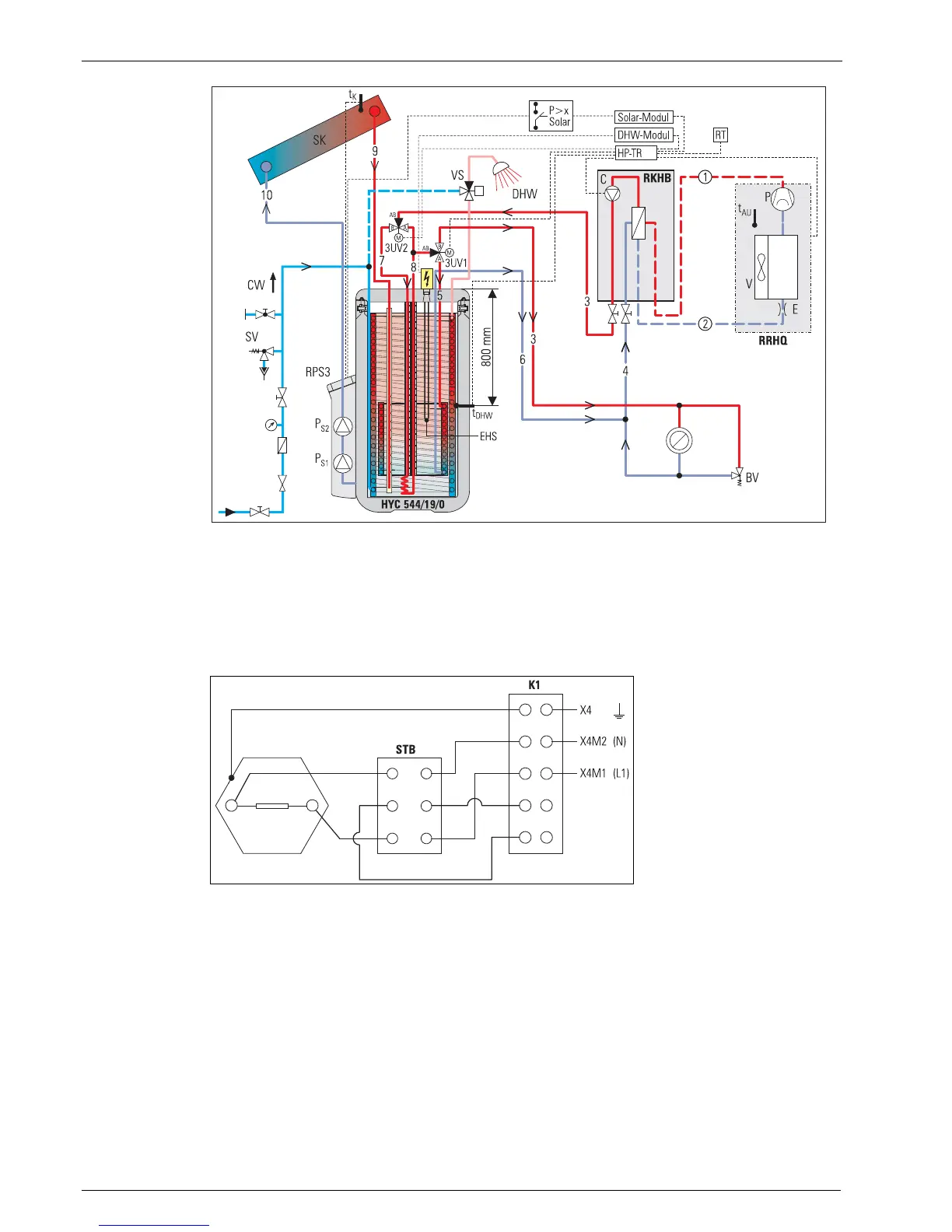

Fig.10-17 Standard connection HPSU to HybridCube 544/19/0 with Solaris support
(shown on HPSU..X with room heating and cooling function)
Fig.10-18 Electric circuit diagram Booster Heater (EHS)
