Reverse Side


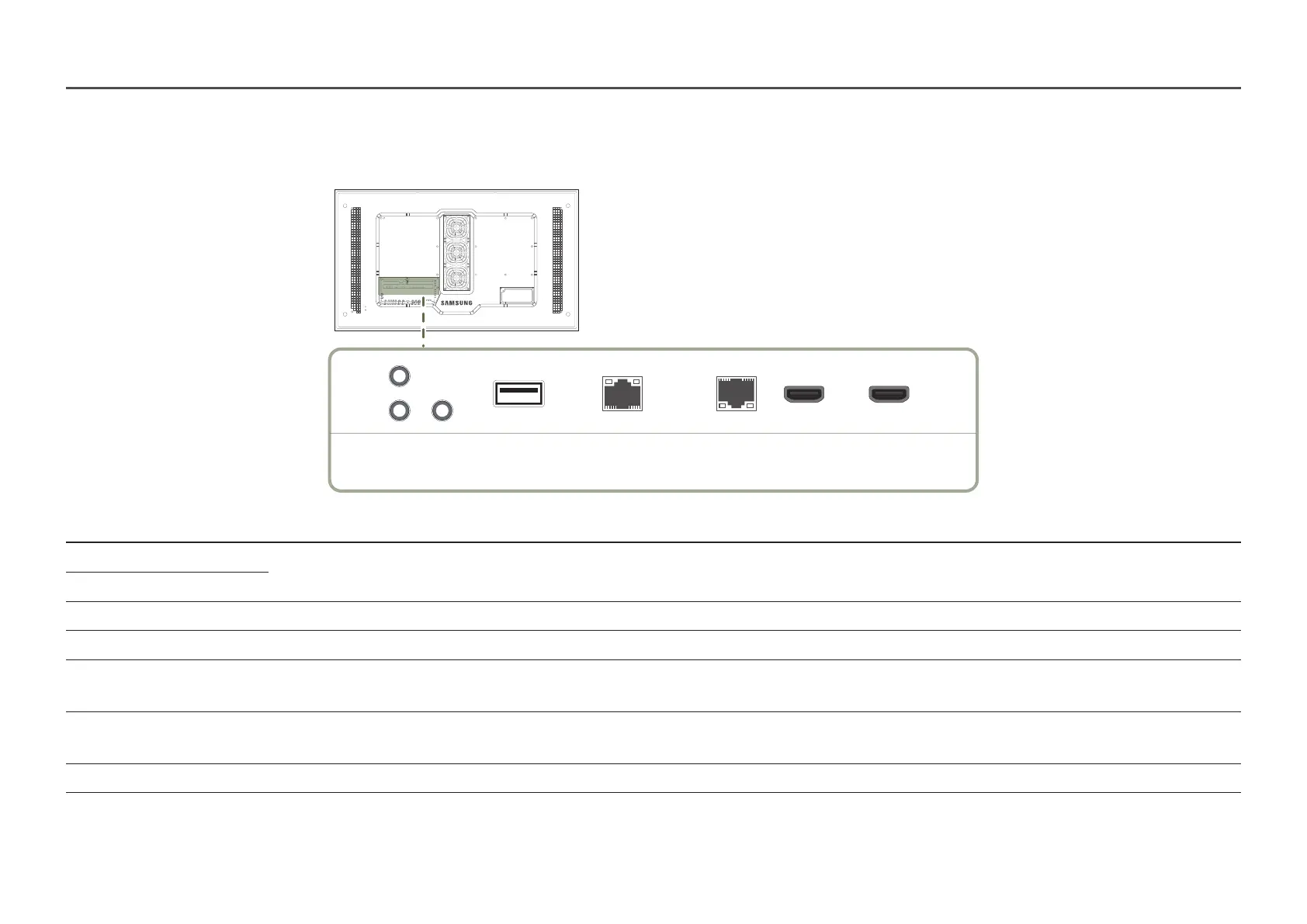

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
RS232C
IN
OUT
AUDIO
OUT
RJ45
(LAN OUT)
HDBT
(LAN IN)
HDMI IN 1 HDMI IN 2
USB
(5V 0.5A)
Port Description
RS232C IN Connects to MDC using an RS232C cable.
RS232C OUT
AUDIO OUT Outputs sound to an audio device via an audio cable.
USB (5V 0.5A) Connect to a USB memory device.
RJ45 (LAN OUT) - Wired LAN connection port used to connect an external device such as a laptop to connect to the Internet.
- Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)
HDBT (LAN IN) - Sends the HDMI signal to a connected LAN cable using an HDBaseT transmitter.
- Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)
HDMI IN 1, HDMI IN 2 Connects to a source device using a HDMI cable or HDMI-DVI cable.

Samsung OH55A Specifications

General

Cables included	AC
Purpose	Commercial
HDCP version	2.2
Operating hours (hours/days)	24/7
International Protection (IP) code	IP56
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Video formats supported	AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Outdoor
Bezel width (bottom)	24.9 mm
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 100 %
Package depth	230 mm
Package width	1358 mm
Package height	845 mm
Package weight	52600 g
AC input voltage	100 - 240 V
Heat dissipation	1809 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	274 W
Ethernet LAN (RJ-45) ports	1
Haze rate	0 %
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	3500 cd/m²
Vertical scan range	24 - 75 Hz
Horizontal scan range	23 - 136 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (dynamic)	100000:1
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm

Weight and Dimensions

Depth	85 mm
Width	1260.6 mm
Height	731.4 mm
Weight	46100 g
