Connecting to a PC
 Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
 A PC can be connected to the product in a variety of ways.
Select a connection method suitable for your PC.

Connecting parts may differ in different products.

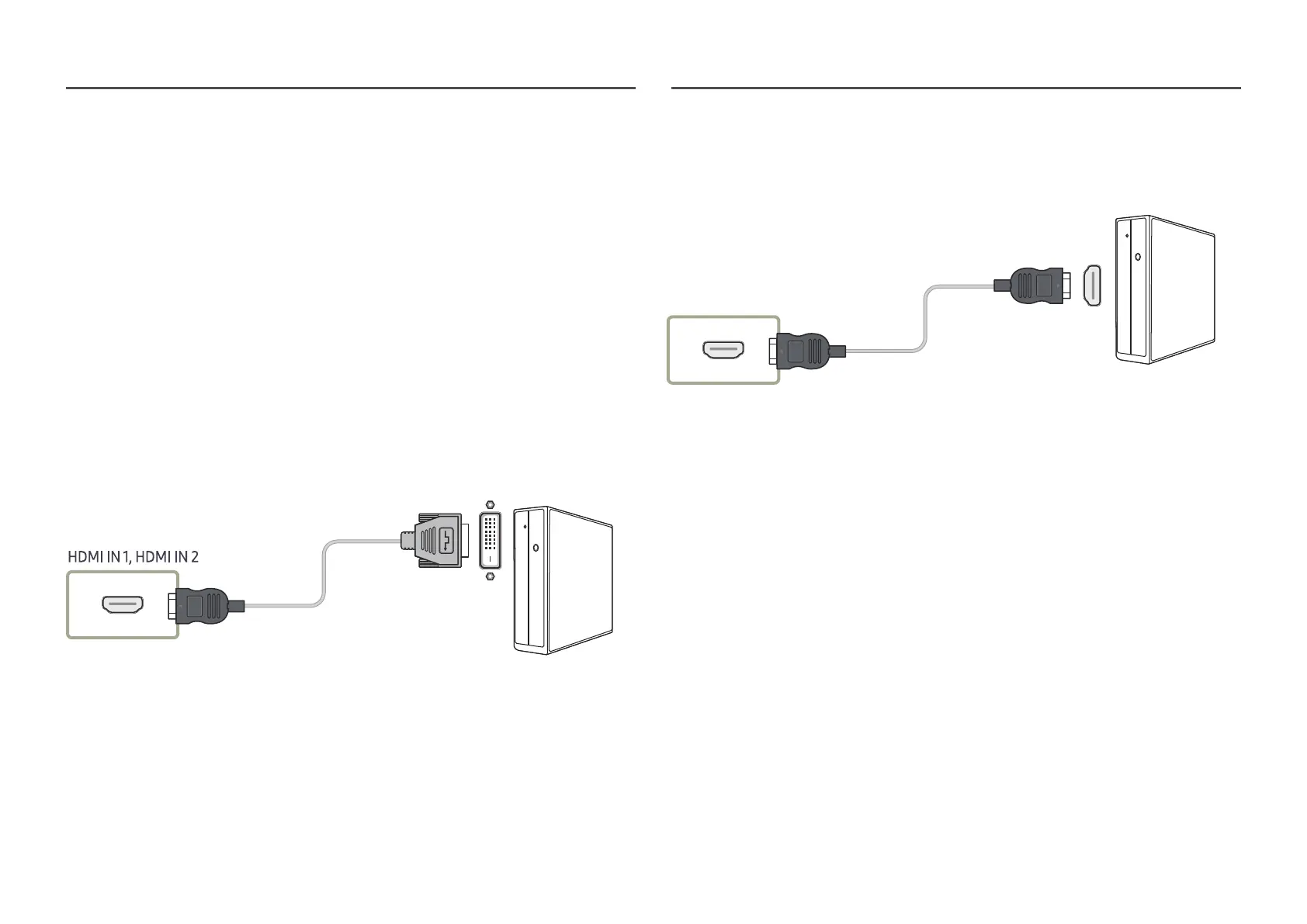

Connection Using an HDMI-DVI Cable
After connecting a computer to the product with an HDMI-DVI cable, make sure to configure the settings
as shown below to enable the video from the computer.

The appearance may differ depending on the product.

Connecting parts may differ in different products.

Audio is not available if the DVI port on the product is connected to the HDMI port on the PC using a DVI-HDMI
adapter.
Connection Using an HDMI Cable

The appearance may differ depending on the product.

Connecting parts may differ in different products.
HDMI IN 1, HDMI IN 2

Samsung OH55A Specifications

General

Cables included	AC
Purpose	Commercial
HDCP version	2.2
Operating hours (hours/days)	24/7
International Protection (IP) code	IP56
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Video formats supported	AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Outdoor
Bezel width (bottom)	24.9 mm
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 100 %
Package depth	230 mm
Package width	1358 mm
Package height	845 mm
Package weight	52600 g
AC input voltage	100 - 240 V
Heat dissipation	1809 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	274 W
Ethernet LAN (RJ-45) ports	1
Haze rate	0 %
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	3500 cd/m²
Vertical scan range	24 - 75 Hz
Horizontal scan range	23 - 136 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (dynamic)	100000:1
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm

Weight and Dimensions

Depth	85 mm
Width	1260.6 mm
Height	731.4 mm
Weight	46100 g
