Samsung OH55A User Manual

35
Connecting to a Video Device
 Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
 You can connect a video device to the product using a cable.

Connecting parts may differ in different products.

Press the SOURCE button on the remote control to change the source.
Using an HDMI cable or HDMI to DVI Cable (up to 1080p)
 For better picture and audio quality, connect to a digital device using an HDMI cable.
 An HDMI cable supports digital video and audio signals, and does not require an audio cable.
 The picture may not display normally (if at all) or the audio may not work if an external device that
uses an older version of HDMI mode is connected to the product. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
 Be sure to use an HDMI cable with a thickness of 14 mm or less.
 Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection
error may occur.
 A basic high-speed HDMI cable or one with ethernet is recommended.
This product does not support the ethernet function via HDMI.

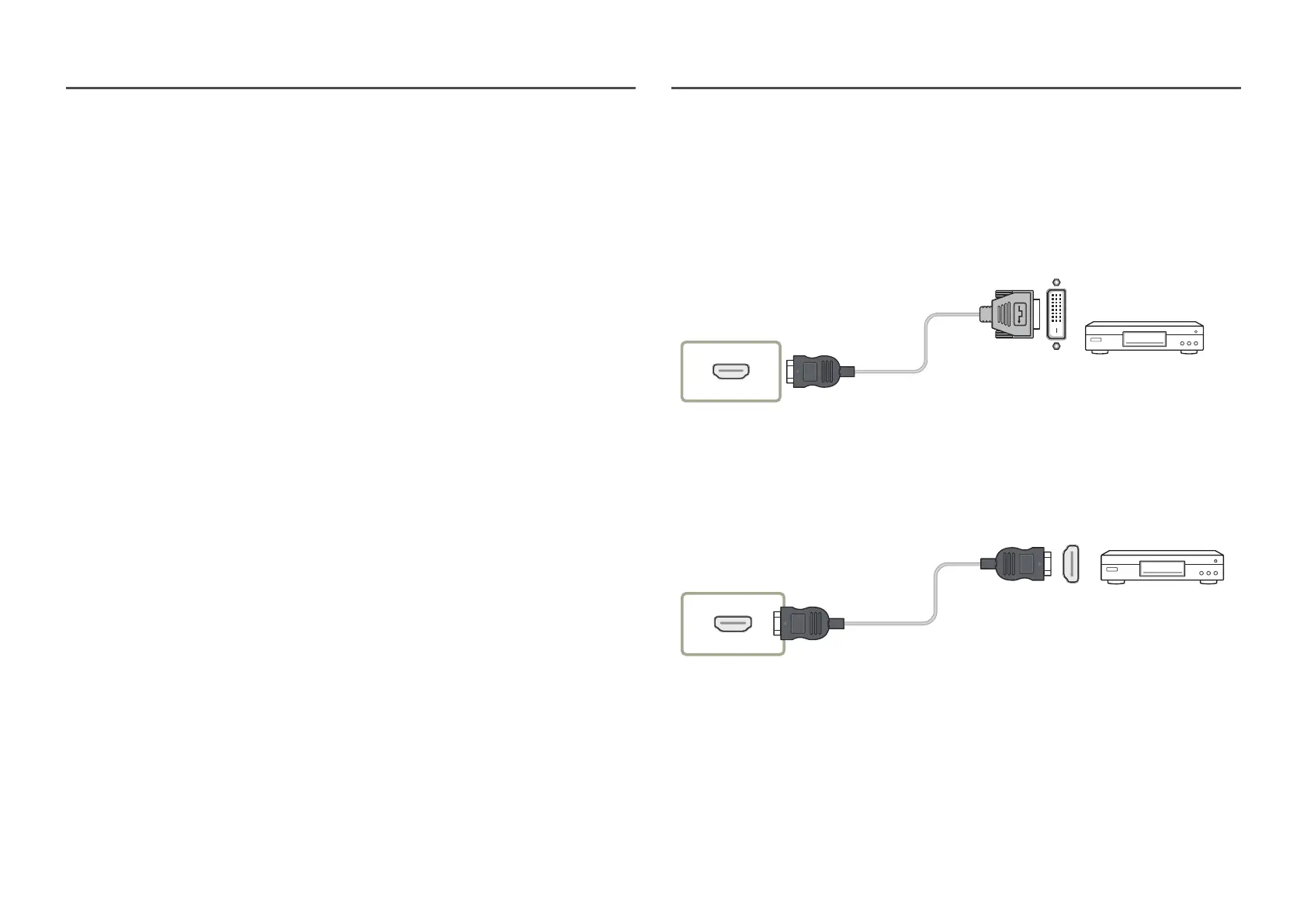

Connection Using an HDMI-DVI Cable
Supported resolutions include 1080p (50/60Hz), 720p (50/60Hz), 480p, and 576p.

The appearance may differ depending on the product.

Connecting parts may differ in different products.

Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable.
HDMI IN 1, HDMI IN 2
Connection Using an HDMI Cable

The appearance may differ depending on the product.

Connecting parts may differ in different products.
HDMI IN 1, HDMI IN 2

Samsung OH55A Specifications

General

Cables included	AC
Purpose	Commercial
HDCP version	2.2
Operating hours (hours/days)	24/7
International Protection (IP) code	IP56
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Video formats supported	AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Outdoor
Bezel width (bottom)	24.9 mm
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 100 %
Package depth	230 mm
Package width	1358 mm
Package height	845 mm
Package weight	52600 g
AC input voltage	100 - 240 V
Heat dissipation	1809 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	274 W
Ethernet LAN (RJ-45) ports	1
Haze rate	0 %
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	3500 cd/m²
Vertical scan range	24 - 75 Hz
Horizontal scan range	23 - 136 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (dynamic)	100000:1
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm

Weight and Dimensions

Depth	85 mm
Width	1260.6 mm
Height	731.4 mm
Weight	46100 g
