Network Settings (Wired)

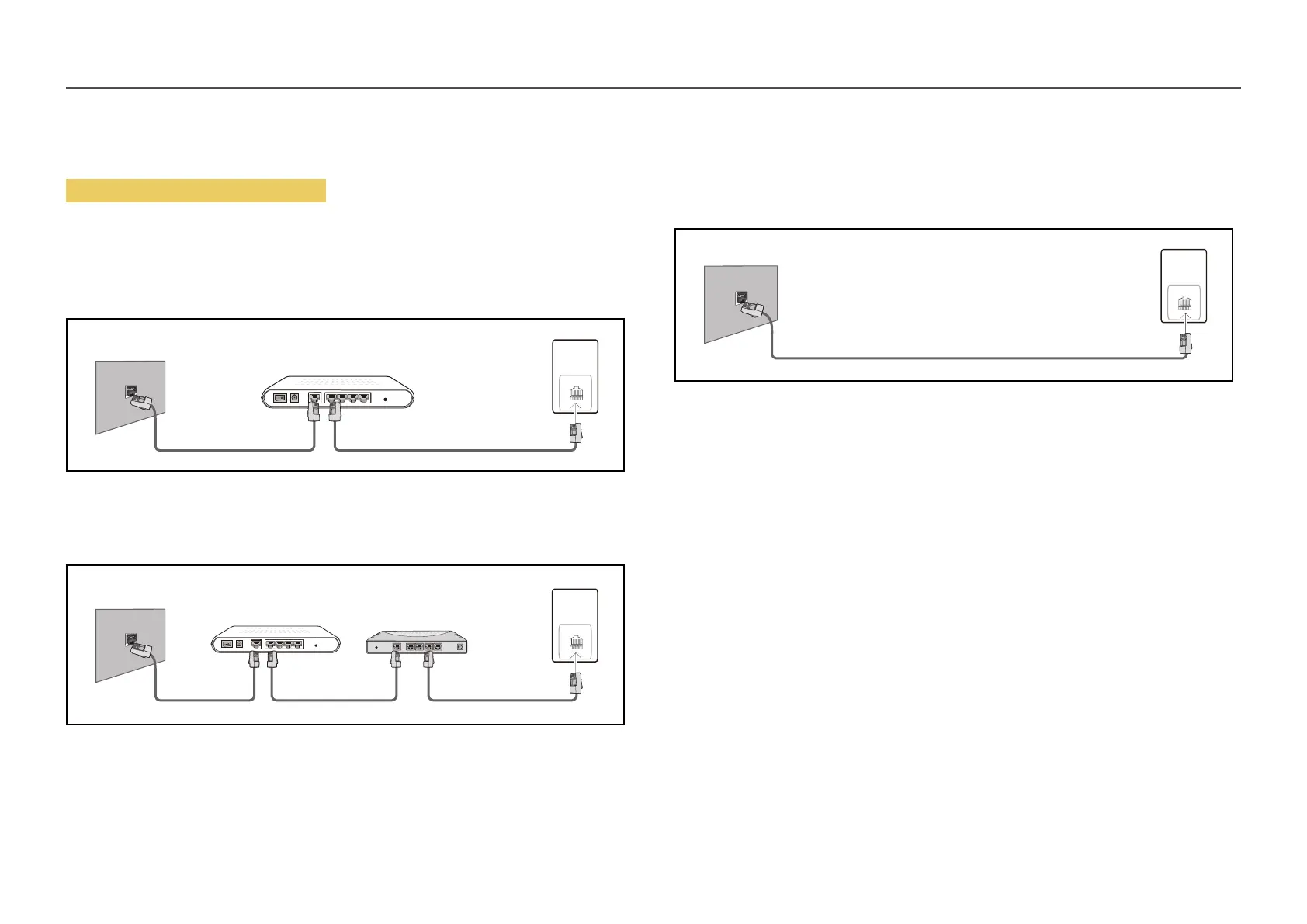

Connecting to a Wired Network
There are three ways to attach your product to your LAN using cable.
 You can attach your product to your LAN by connecting the LAN port on the back of your product to
an external modem using a LAN cable.
See the diagram below.
The Modem Port on the Wall
Modem Cable LAN Cable
External Modem
(ADSL / VDSL)
LAN
HDBT
(LAN IN)
 You can attach your product to your LAN by connecting the LAN port on the back of your product to
an IP Sharer which is connected to an external modem. Use LAN cable for the connection. See the
diagram below.
The Modem Port on the Wall
Modem Cable LAN Cable LAN Cable
External Modem
(ADSL / VDSL)
IP Sharer
(having DHCP server)
LAN
HDBT
(LAN IN)
 Depending on how your network is configured, you may be able to attach your product to your LAN
by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN
cable.
See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your
house.
The LAN Port on the Wall
LAN Cable
LAN
HDBT
(LAN IN)
If you have a Dynamic Network, you should use an ADSL modem or router that supports the Dynamic
Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the
IP Address, Subnet Mask, Gateway, and DNS values your product needs to access the Internet so you do
not have to enter them manually. Most home networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter
the IP Address, Subnet Mask, Gateway, and DNS values manually on your product IP Settings when you
set up the network connection. To get the IP Address, Subnet Mask, Gateway, and DNS values, contact
your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your computer.

You can use ADSL modems that support DHCP if your network requires a Static IP address.

ADSL modems that support DHCP also let you use Static IP addresses.

Samsung OH55A Specifications

General

Cables included	AC
Purpose	Commercial
HDCP version	2.2
Operating hours (hours/days)	24/7
International Protection (IP) code	IP56
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Video formats supported	AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Outdoor
Bezel width (bottom)	24.9 mm
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 100 %
Package depth	230 mm
Package width	1358 mm
Package height	845 mm
Package weight	52600 g
AC input voltage	100 - 240 V
Heat dissipation	1809 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	274 W
Ethernet LAN (RJ-45) ports	1
Haze rate	0 %
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	3500 cd/m²
Vertical scan range	24 - 75 Hz
Horizontal scan range	23 - 136 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (dynamic)	100000:1
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm

Weight and Dimensions

Depth	85 mm
Width	1260.6 mm
Height	731.4 mm
Weight	46100 g
