Samsung OH55A User Manual

42

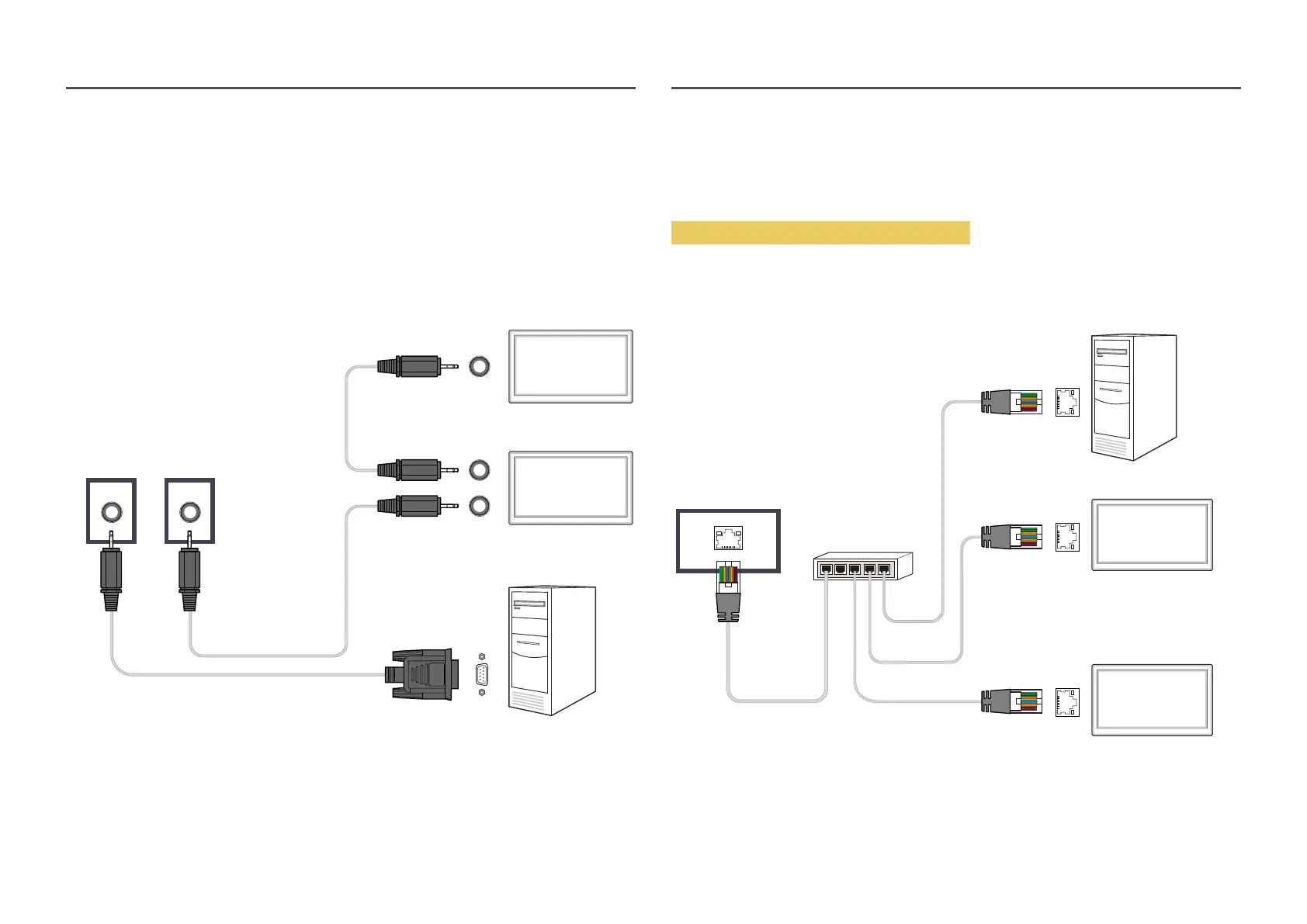

Connecting to MDC
Using MDC via RS-232C (serial data communications
standards)
An RS-232C serial cable must be connected to the serial ports on the PC and monitor.

The appearance may differ depending on the product.
RS232C OUT
RS232C IN
RS232C IN
RS232C OUTRS232C IN
Monitor 1
Monitor 2
Computer
Using MDC via Ethernet
Enter the IP for the primary display device and connect the device to the PC. Display devices can be
connected to each other using a LAN cable.
Connection using a direct LAN cable

The appearance may differ depending on the product.

Multiple products can be connected using the HDBT (LAN IN) port on the product and the LAN ports on the
HUB.
HDBT (LAN IN)
HUB
HDBT (LAN IN)
HDBT (LAN IN)
Monitor 1
Monitor 2
Computer

Samsung OH55A Specifications

General

Cables included	AC
Purpose	Commercial
HDCP version	2.2
Operating hours (hours/days)	24/7
International Protection (IP) code	IP56
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Video formats supported	AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Outdoor
Bezel width (bottom)	24.9 mm
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 100 %
Package depth	230 mm
Package width	1358 mm
Package height	845 mm
Package weight	52600 g
AC input voltage	100 - 240 V
Heat dissipation	1809 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	274 W
Ethernet LAN (RJ-45) ports	1
Haze rate	0 %
Pixel pitch	0.63 x 0.63 mm
Response time	8 ms
Display diagonal	55 \
Display brightness	3500 cd/m²
Vertical scan range	24 - 75 Hz
Horizontal scan range	23 - 136 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (dynamic)	100000:1
Contrast ratio (typical)	5000:1
Display number of colors	16.78 million colors
Active display area (W x H)	1209.6 x 680.4 mm

Weight and Dimensions

Depth	85 mm
Width	1260.6 mm
Height	731.4 mm
Weight	46100 g
