Before Installing the Product
(Installation Guide)
15 ˚
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
Ensure that an authorized installation company installs the wall mount.
Otherwise, it may fall and cause personal injury.
Make sure to install the specified wall mount.
Tilting Angle and Rotation
Contact Samsung Customer Service Center for further details.
The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.
A
B

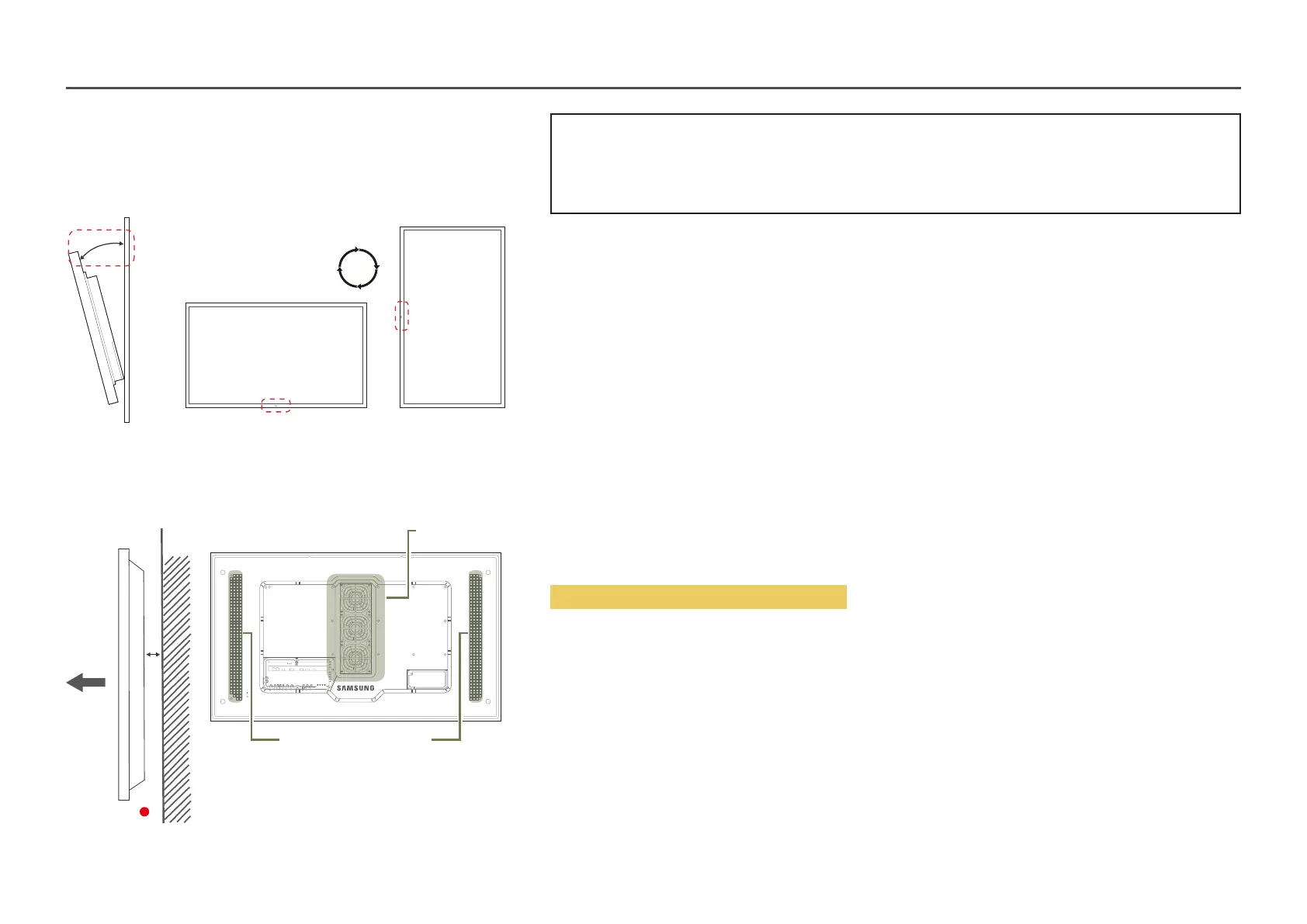

Figure 1.1 Side view
Air vent
Air intake
Ventilation
Installation on a Perpendicular Wall
A Minimum 50 mm
B Ambient temperature: Under 50°C
When installing the product on a perpendicular wall, allow at least 50 mm of space between the product and wall surface
for ventilation and ensure that the ambient temperature is kept below 50°C.
Do not block the vent on the product.
Refer to the Outdoor Installation Guide. (http://displaysolutions.samsung.com)
