11
Part Names and Functions

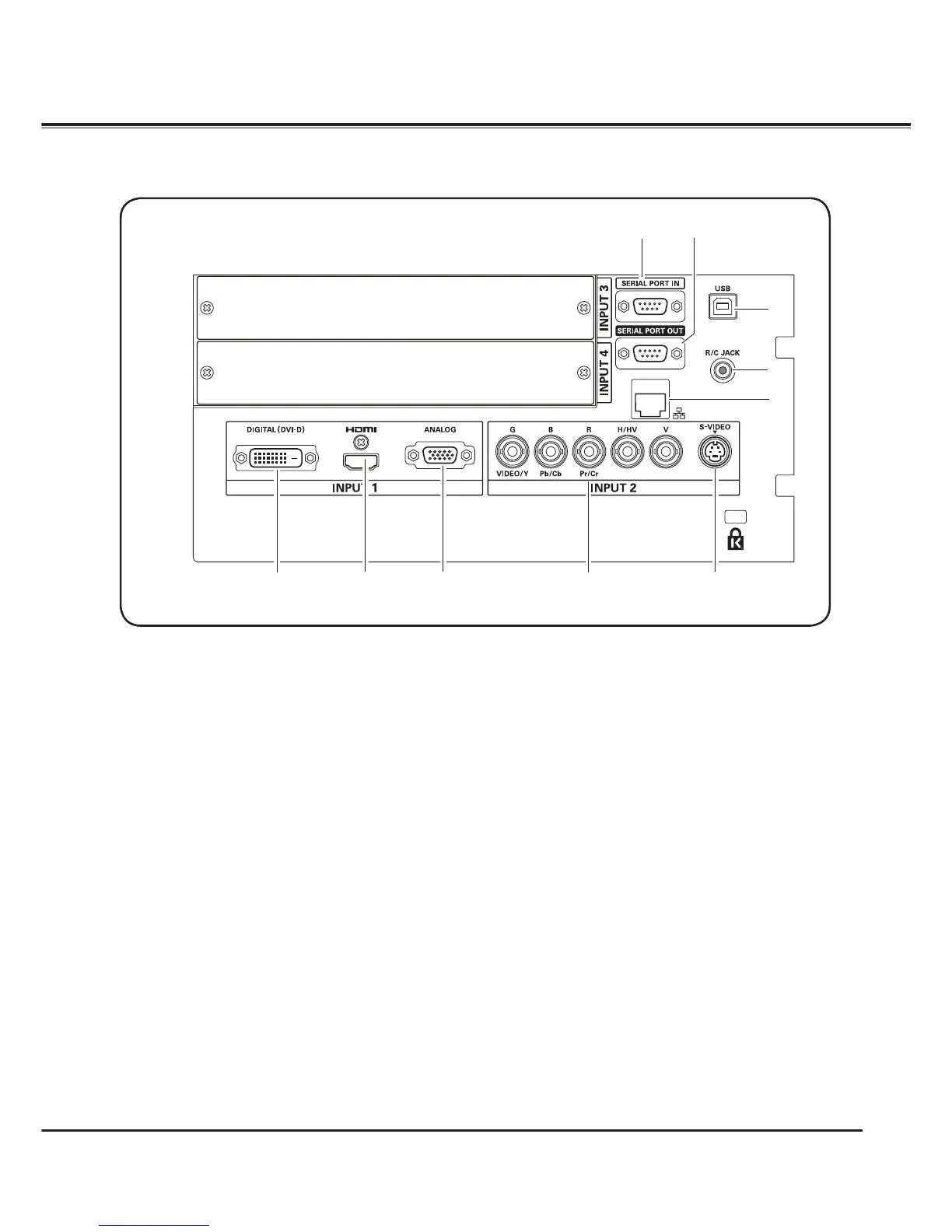

Terminals and Connectors
ER/C JACK
When using the wired remote control, connect the
wired remote control to this jack with a remote
control cable (not supplied).
8USB CONNECTOR (series B)
USB connector is to used to service the projector.
LS-VIDEO JACK
Connects the S-VIDEO output signal from video
equipment to this jack (p.21).
D
SERIAL PORT IN TERMINAL
If you control the projector from a computer, you
must connect a cable (not supplied) from your
computer to this RS-232C terminal.
J
SERIAL PORT OUT TERMINAL
This terminal outputs signal from SERIAL PORT IN.
More than two projectors can be controlled with
one computer by connecting SERIAL PORT IN of
another projector to this RS-232C terminal.
H5 BNC JACK
Connects the component or composite video
output signal from video equipment to VIDEO/Y,
Pb/Cb, and Pr/Cr jacks or connect the computer
output signal (5 BNC Type [Green, Blue, Red,
Horiz. Sync, and Vert. Sync.]) to G, B, R, H/HV, and
V jacks (pp.20–21).
DJ
L
H
DIGITAL (DVI-D) TERMINAL
Connects computer output (Digital/DVI-D type) to
this terminal (p.20).
HD (HDCP Compatible) signal can be also
connected (p.21).
<
ANALOG TERMINAL
Connects the computer (or RGB scart) output
signal to this terminal (pp.20–21).
G
E
8
G
LAN PORT
Connecting the Ethernet cable See the owner’s
manual of “Network Set-up and Operation” for
details.
BHDMI
TERMINAL
Connects the HDMI output signal from video
equipment to this terminal. (pp.20-21)
B
<
To Next Page
