17
Installation
Lens Installation
Before setting up the projector, install Projection Lens on the projector.
Before installation, check where the projector is used and prepare a suitable lens. For the specifications of
Projection Lens, contact sales dealer where you purchased the projector.
- Lens installation and replacement should be performed by the qualified service personnel.
- When setting the projector after lens installation, be sure to replace a Lens Cap to protect a
surface.
- When carrying or holding up the projector, be careful not to put your hands on lens part. It may
damage lens, cabinet, or mechanical parts.

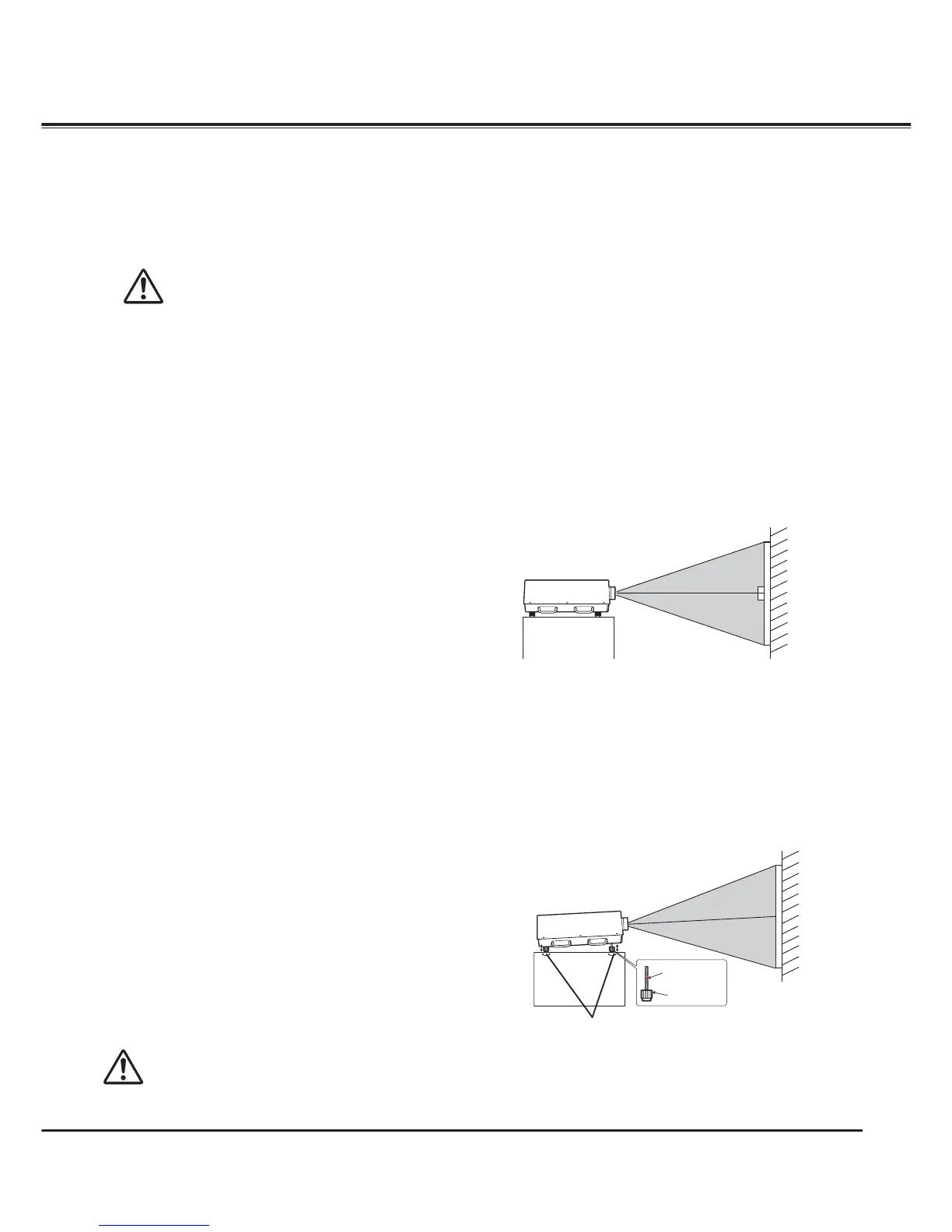

Positioning Projector
This projector is designed to project on a flat projection
surface.
Note:
•
Brightness in room has a great influence on picture
quality. It is recommended to limit ambient lighting in
order to provide the best image.
SCREEN
Picture Level and Pitch Adjustment
ADJUSTABLE
FEET
The projection angle is adjustable up to 3 degrees upward
and downward respectively by rotating front and back feet
.
To raise the projector, rotate the feet clockwise.
To lower the projector or to retract the adjustable feet,
rotate the feet counterclockwise.
To correct keystone distortion, press the KEYSTONE
button on the remote control or select Keystone from the
menu (see pages32, 46, 53).
Do not rotate the adjustable feet when you
see the red line on the adjustable feet. The
adjustable feet may fall off.
Red line
Adjustable feet
To Next Page
