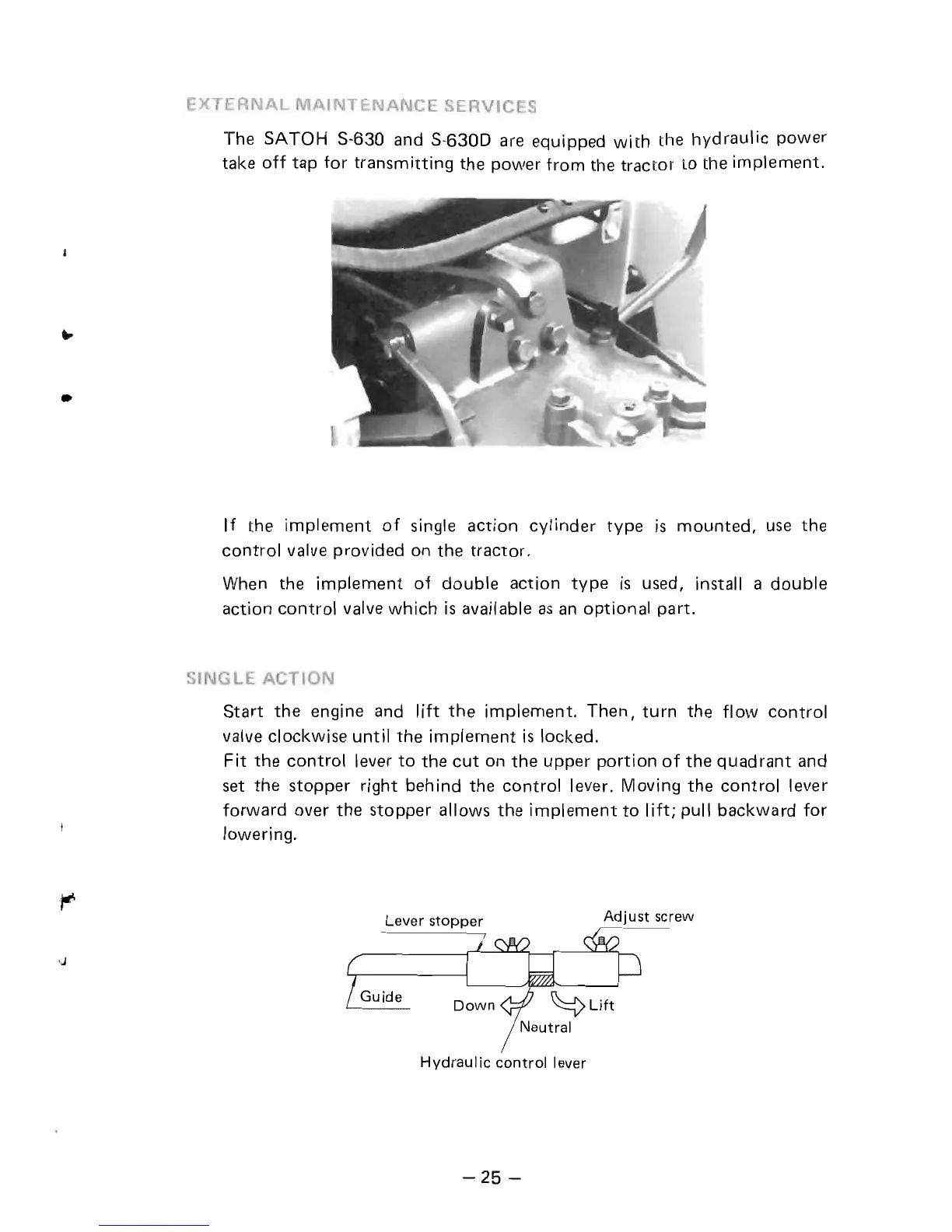

,J
The SATOH S-630 and
S-6300
are equipped with
the
hydraulic power
take off tap for transmitting
the
power from the tractor
to
the implement.
If
the implement
of
single action cylinder
type
is
mounted,
use
the
control valve provided on
the
tractor.
When
the
implement
of
double action
type
is
used, install a
double
action control valve which
is
available
as
an
optional part.
Start
the
engine and lift
the
implement.
Then,
turn
the
flow control
valve clockwise until
the
implement
is
locked.
Fit
the
control lever
to
the
cut
on
the
upper portion
of
the
quadrant
and
set
the
stopper right behind the control lever. Moving
the
control lever
forward over
the
stopper allows
the
implement
to
lift; pull backward for
lowering.
Adjust
screw
Guide
Hydraulic
control
lever
-25
-
