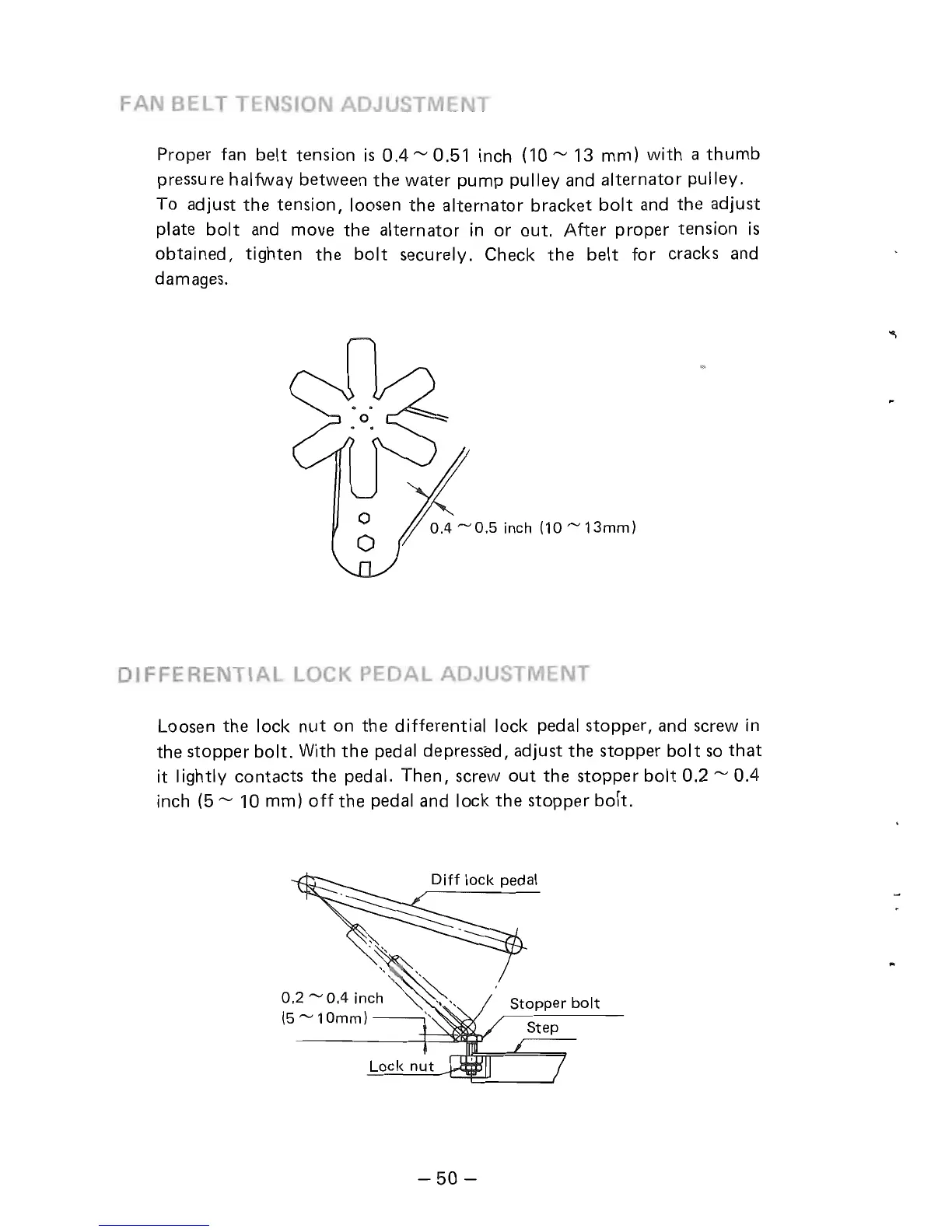

Proper fan belt tension is 0.4""" 0.51 inch (10""" 13 mm) with a thumb
pressu re halfway between the water pump pulley and alternator pulley.
To adjust
the tension, loosen the alternator bracket bolt and the adjust
plate
bolt and move the alternator in or out. After proper tension is
obtained, tighten the bolt securely. Check the belt for cracks and
damages.
Loosen
the lock nut on the differential lock pedal stopper, and screw in
the stopper bolt. With the pedal depressed, adjust the stopper bolt so that
it lightly contacts the pedal. Then, screw out the stopper bolt 0.2,...., 0.4
inch (5""" 10 mm) off the pedal and lock the stopper boft.
Diff lock pedal
-50 -
