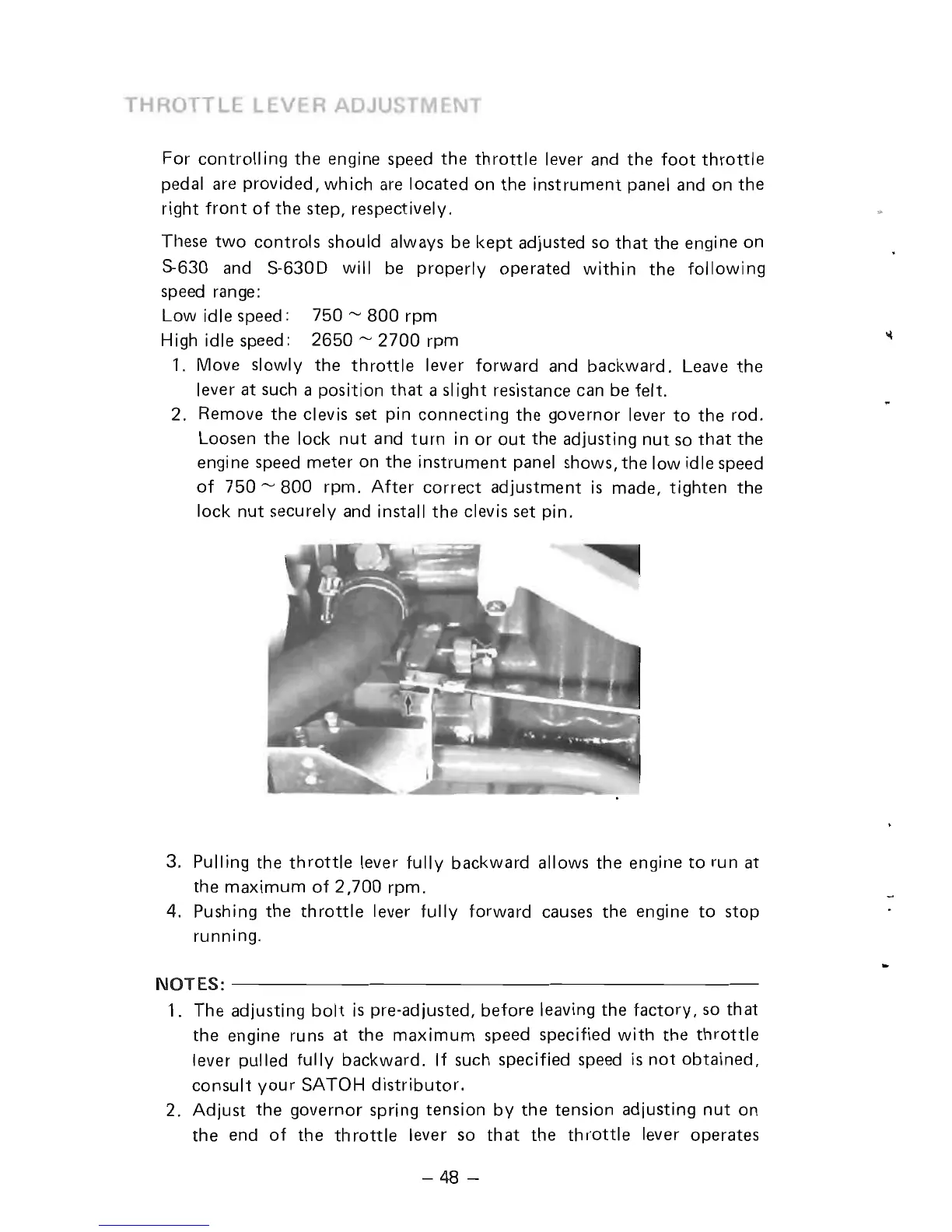

For controlling the engine speed the throttle lever and the foot throttle
pedal are provided, which are located on the instrument panel and on the
right front of the step, respectively.
These two controls should always be kept adjusted so that the engine on
S-630 and S-630D will be properly operated within the following
speed range:
Low idle speed: 750'"" 800 rpm
High idle speed: 2650 '"" 2700 rpm
1. Move slowly the throttle lever forward and backward. Leave the
lever at such a position that a sl ight resistance can be felt.
2. Remove the clevis set pin connecting the governor lever to the rod.
Loosen the lock nut and turn in or out the adjusting nut so that the
engine speed meter on the instrument panel shows, the low idle speed
of 750""' 800 rpm. After correct adjustment is made, tighten the
lock nut securely and install the clevis set pin.
3. Pulling the throttle lever fully backward allows the engine to run at
the maximum of 2,700 rpm.
4. Pushing the throttle lever fully forward causes the engine to stop
running.
NOTES:-------------------------------------------
1. The adjusting bolt is pre-adjusted, before leaving the factory, so that
the engine runs. at the maximum speed specified with the throttle
lever pulled fully backward. If such specified speed is not obtained,
consult your SATOH distributor.
2. Adjust the governor spring tension by the tension adjusting nut on
the end of the th rottle lever so that the th rottle lever operates
