Schaerer Coffee Maker User Manual

User manual SCA - EN
Version 02 09.2006
Appendix www.schaerer.com
39
Options

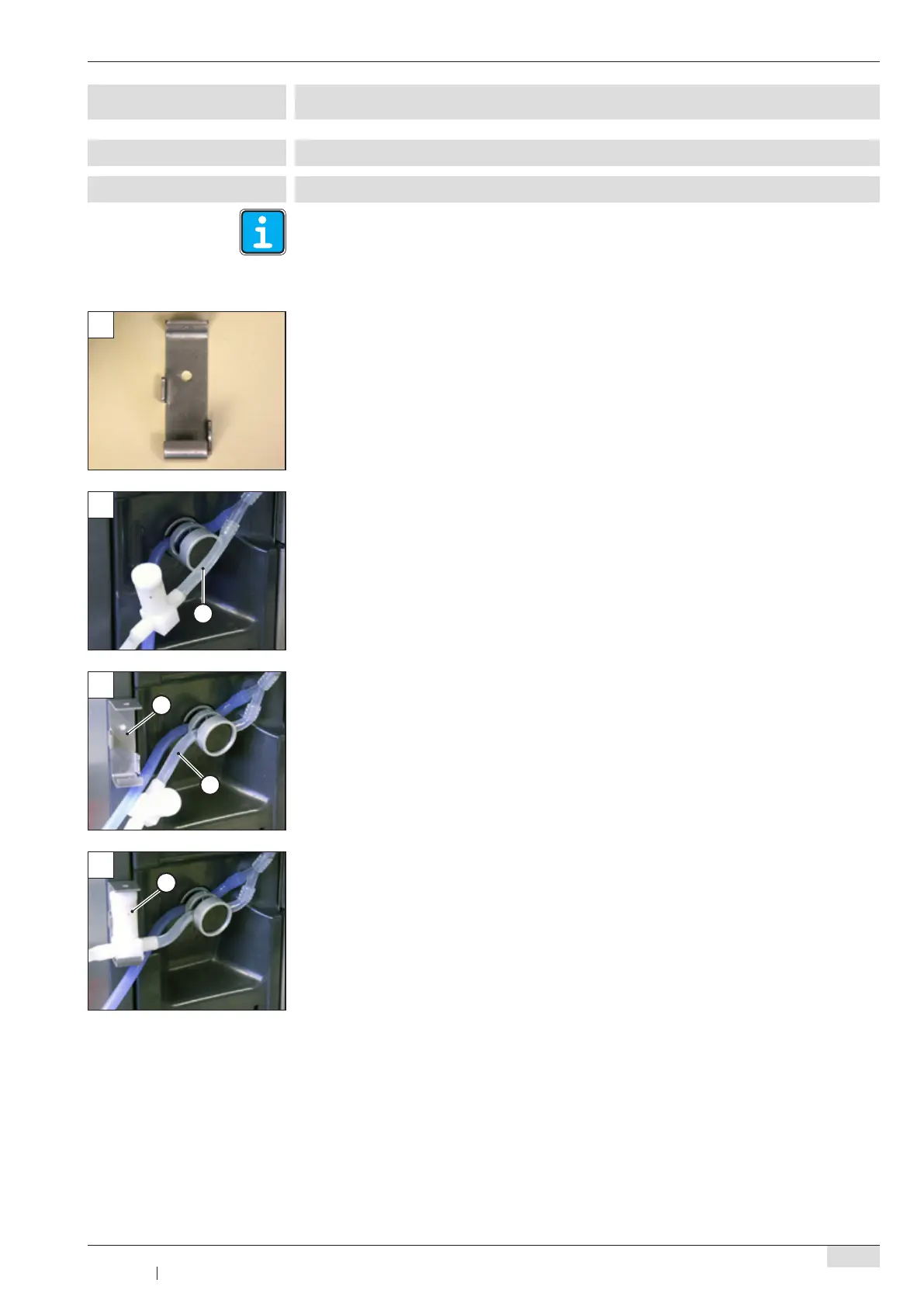

Expander bracket (069‘402)
Assembling expander bracket
The expander bracket is already mounted by machines with fridge (My Fridge, sage 40).
For machines without fridge proceed as follows:
• Attach double-sided-tabe on the backside of the expander.
• Remove the metal cover.
• Remove hose [ 1 ] from the squeezer valve.
• Cut off ± 120 mm from the supplyed hose (061‘108) ± 120 mm.
• Exchange the old hose [ 1 ] with the new hose (061‘108).
• Mount expander bracket [ 2 ] on the left side (see picture).
• Re-place the hose [ 3 ] on the squeezer valve.
• Slide expander into the expander bracket [ 4 ].
Attention: Air intake on the expander must point forwards!
• Re-place the metal cover.
1
2
3
4
1
3
2
4
