3 Basic Operation
3.9
3
.
24
FPD-2010
3.9
Setting
the Flow Rate

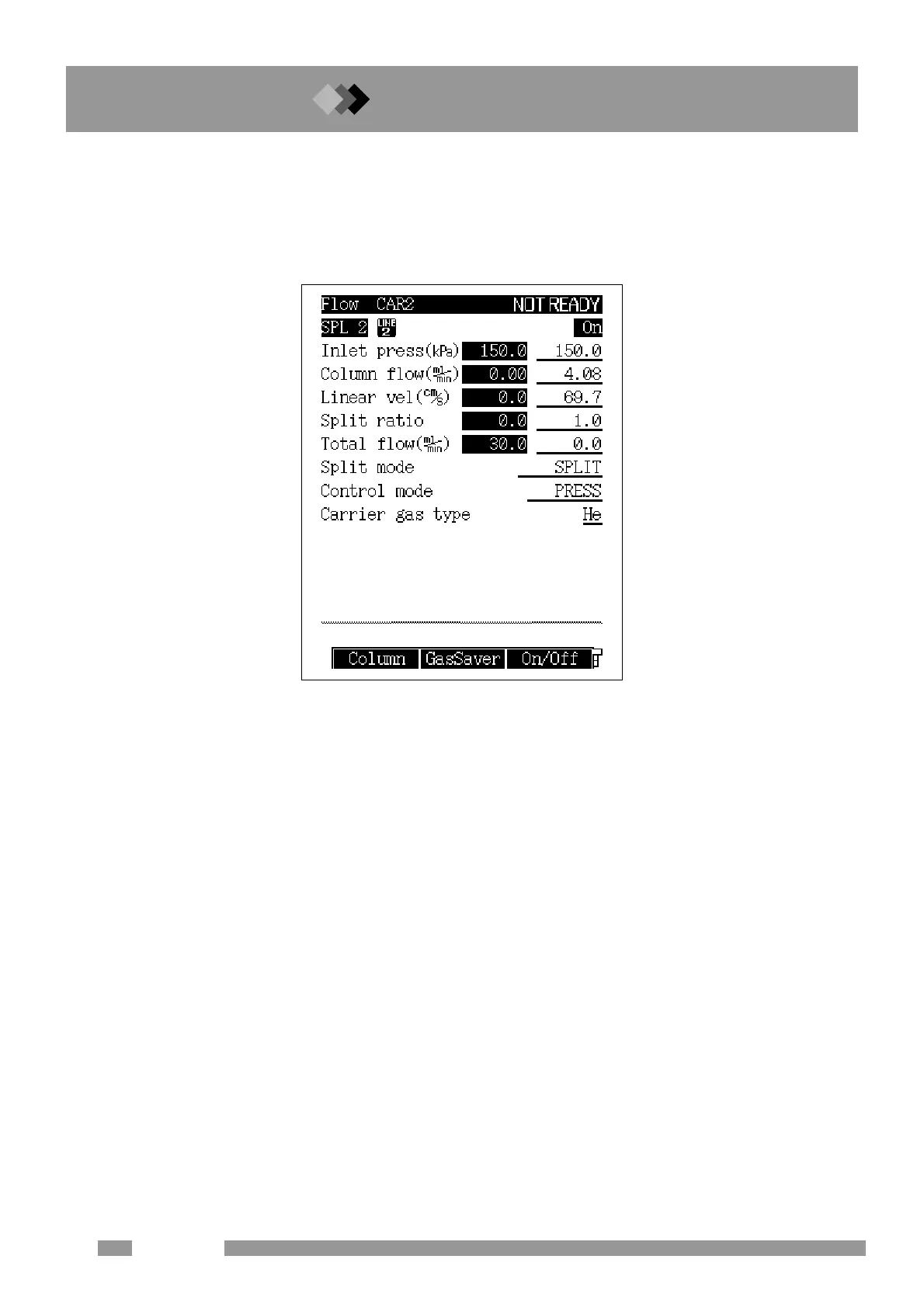

Press the [FLOW] key and set the carrier gas flow rate in the screen that appears.
For the detailed procedure, refer to
“
12. Injection Port
”
in
the GC-2010 Instruction Manual..
Fig. 3.9.1
29
31
