Determining minimum distance from reflective surfaces
T
he minimum distance can be determined as follows:
b
Determine the distance between sender and receiver D in meters (m).
b
Read the minimum distance a in millimeters (mm) in the graph or calculate using
the respective formula to determine the minimum distance to reflective surfaces:
The minimum distance is dependent on the receiver used.
When using a receiver with a low or medium sensing sensing range
500
400
300
200
100
1 2 3 4 5 6 D/m
a/mm

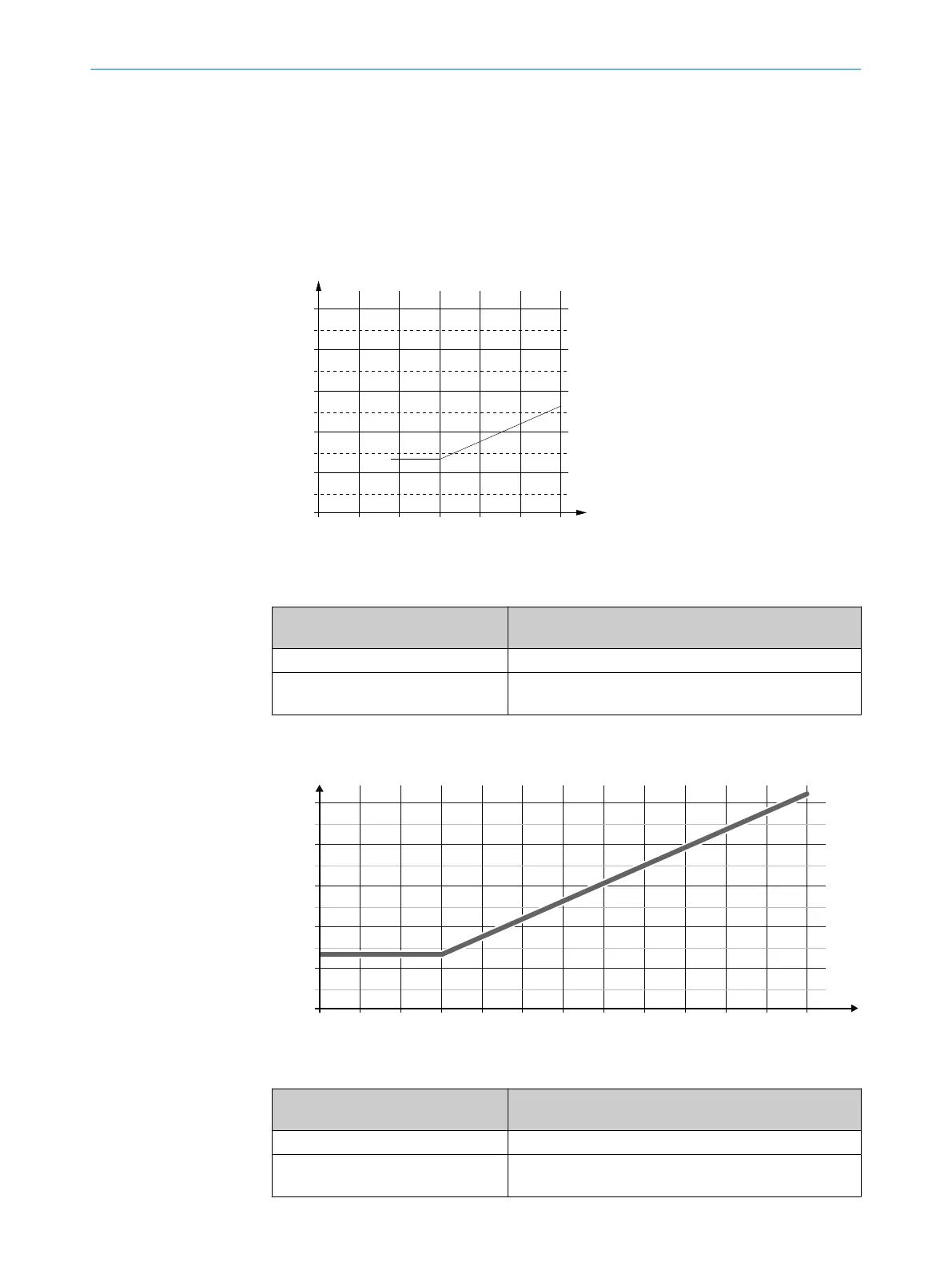

Figure 11: Graph of minimum distance from reflective surfaces
T
able 2: Formula for calculating the minimum distance from reflective surfaces
Distance (D) between sender and
r
eceiver in m
Calculation of the minimum distance (a) from reflective
surfaces in mm
D ≤3m a = 131mm
D >3m a = tan (2.5°) ×1,000mm/m × D = 43.66 ×1mm/m ×
D
When using a receiver with a high sensing sensing range
500
400
300
200
100
a/mm
10 11 12 D/m1 2 3 4 5 6 7 8 9
Table 3: Formula for calculating the minimum distance from reflective surfaces
Distance (D) between sender and
r
eceiver in m
Calculation of the minimum distance (a) from reflective
surfaces in mm
D ≤3m a = 131mm
D >3m a = tan (2.5°) ×1,000mm/m × D = 43.66 ×1mm/m ×
D
4 PROJECT PLANNING
20
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes 8024467/1GWF/2022-11-11 | SICK
Subject to change without notice
