SICK deTec4 C4C-EV03030A10000 User Manual

14 Accessories
14.1 Brackets
Table 21: Brackets ordering information
Part Type code Part number
QuickFix bracket (2x) BEF-3SHABPKU2 2066048
QuickFix bracket (4x) BEF-3SHABPKU4 2098710
QuickFix bracket
47,2
40,2
49 20
30
Ø 5,6
Ø
5,6
7,2
30
41,1
25
4,5
4,5
10,4
7,2
2
18,2

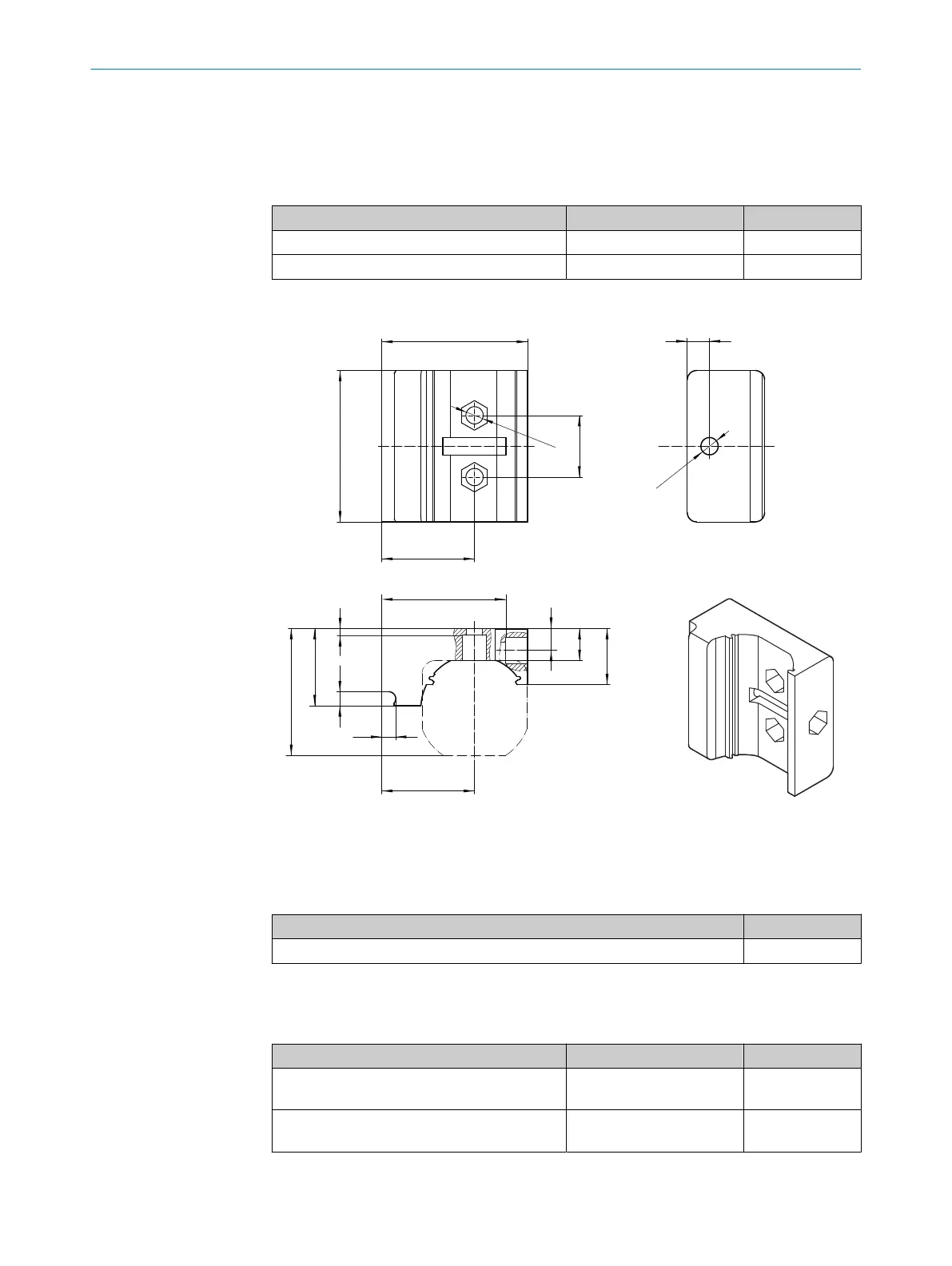

Figure 29: Dimensional drawing of the QuickFix bracket
14.2 Mounting accessories
Table 22: Mounting accessories ordering information
Part Part number
Alignment tool 4084133
14.3 Connectors
Table 23: Ordering information for M12 connecting cable, 5-pin (0.34mm
2
)
1)
Part Type code Part number
Female connector, straight, 2m c
able, flying
leads
YF2A15-020UB5XLEAX 2095617
Female connector, straight, 5m cable, flying
leads
YF2A15-050UB5XLEAX 2095618
1)
Ambient oper
ating temperature: Down to −30°C with fixed installation.
ACCESSORIES 14
8024467/1GWF/2022-11-11 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
59
Subject to change without notice
