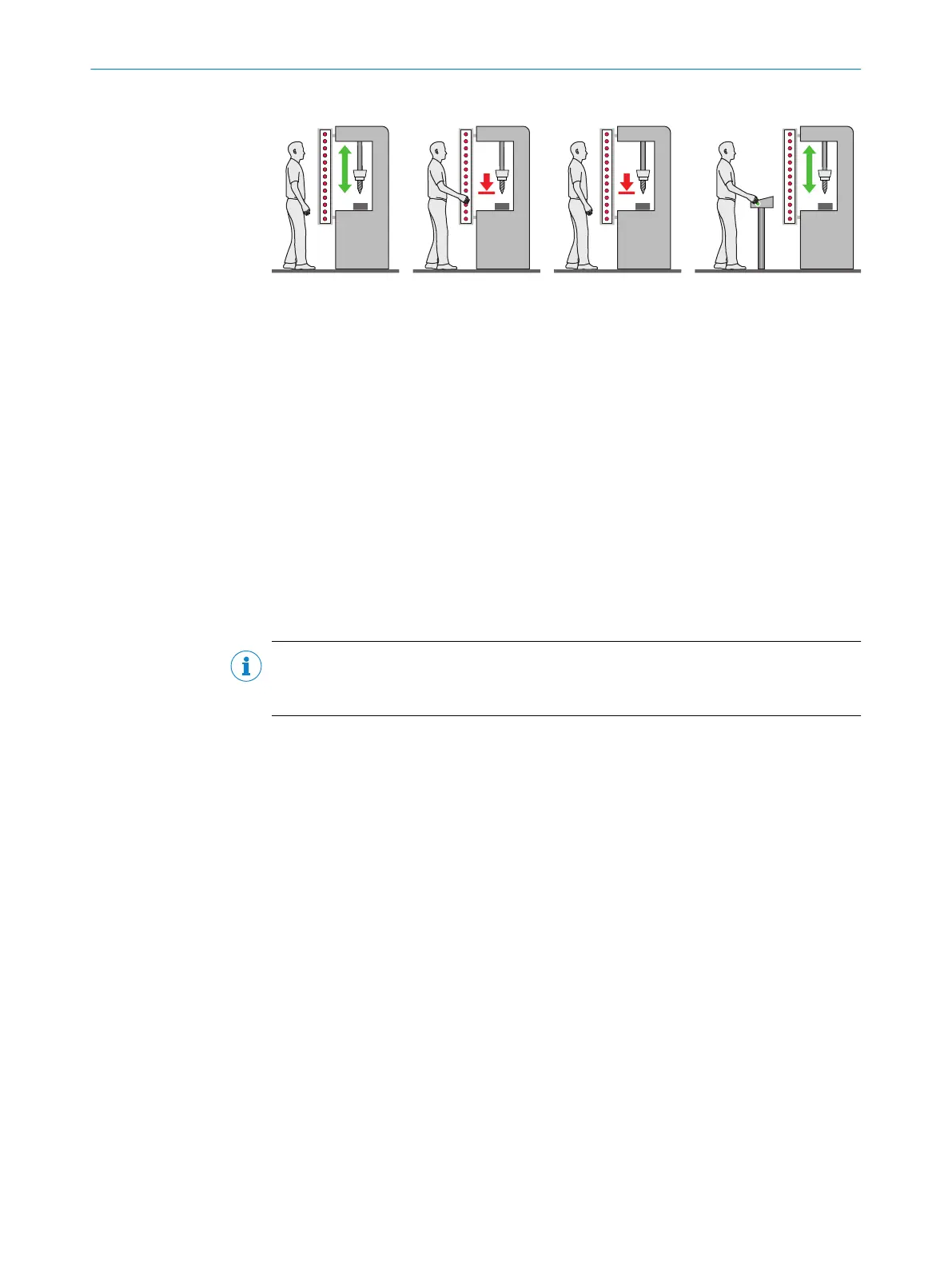

Figure 18: Schematic representation of operation with restart interlock
T
he dangerous state of the machine (1) is brought to an end if the light path is inter‐
rupted (2) and is not re-enabled (3) until the operator presses the reset pushbutton
located outside the hazardous area (4). The machine can then be restarted.
Depending on applicable national regulations, a restart interlock must be available if it
is possible to stand behind the protective device. Observe IEC60204-1.
4.4.2 External device monitoring (EDM)
Overview
T
he external switching elements (external device monitoring, EDM) must be inspected
in line with the regulations which apply at the place of installation or the required
reliability of the safety function.
External device monitoring (EDM) monitors the status of downstream contactors.
Important information
NOTE
Bec
ause the protective device does not have integrated external device monitoring, this
must be implemented in the external control, if required.
Prerequisites
•
P
ositively guided contactors are used for shutting down the machine.
4 PROJECT PLANNING
26
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes 8024467/1GWF/2022-11-11 | SICK
Subject to change without notice
