7.3.2 Alignment with the QuickFix bracket
Prerequisites
•
T
he sender and receiver are mounted with a QuickFix bracket
Alignment with the QuickFix bracket
T
he QuickFix bracket offers you the following adjustment options for aligning the sender
and receiver with each other:
•
Shift vertically

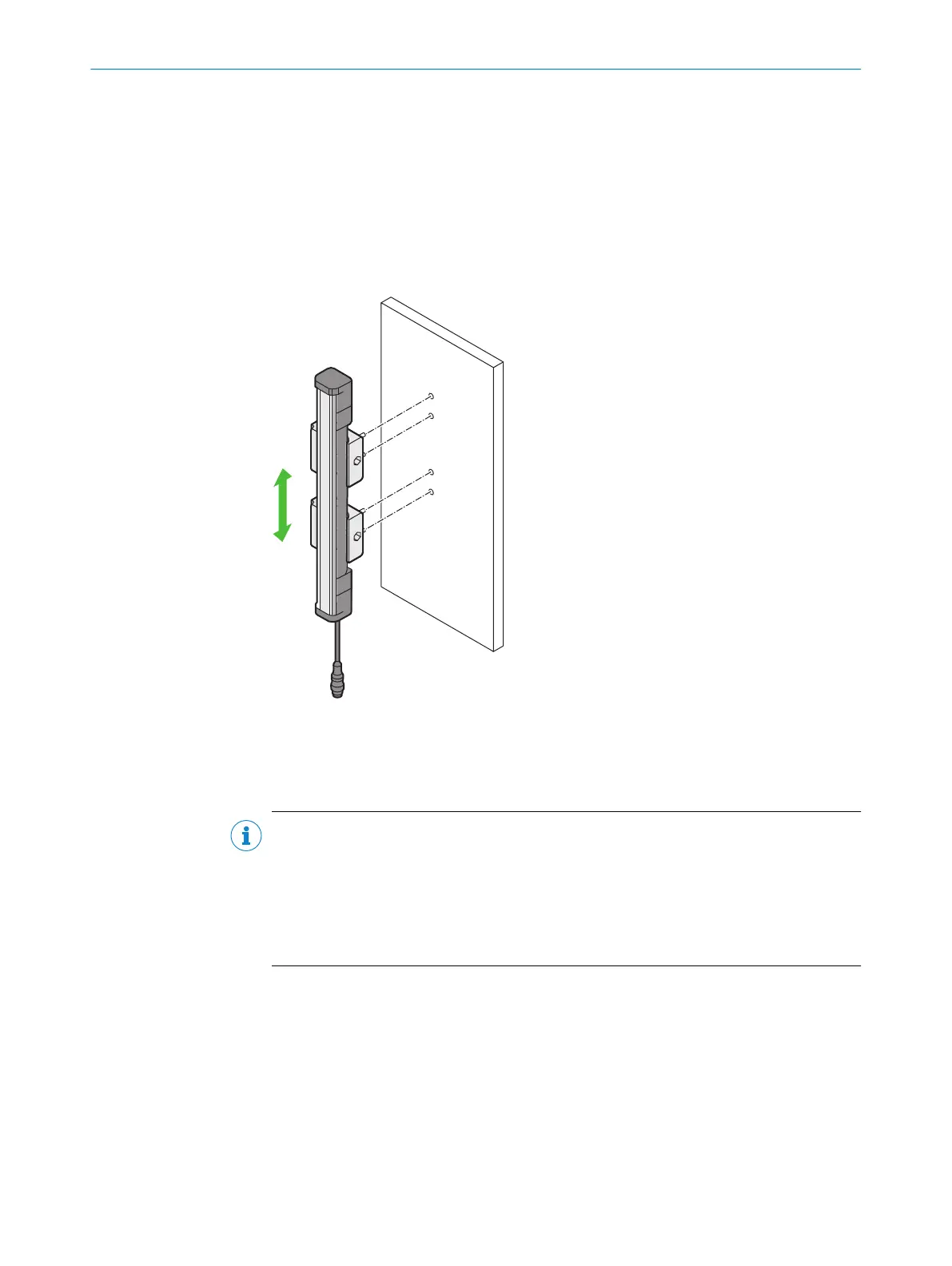

Figure 27: QuickFix bracket: adjust vertically
7.3.3 Indication of the alignment quality
Important information
NOTE
Once 3 blue ali
gnment quality light emitting diodes light up, alignment is good and
availability is stable.
Please note that body parts of objects in the protective field (e.g., hand, tool, AR60
optional laser alignment aid) may impair the function of the alignment quality LEDs.
Remove all objects from the protective field to allow the alignment quality to be
assessed.
COMMISSIONING 7
8024467/1GWF/2022-11-11 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4 Core Vibes
43
Subject to change without notice
