Protective field height in mm Weight in g
1)
s S
ender r Receiver
1650 1510 1520
1800 1650 1660
1950 1790 1800
2100 1920 1930
1)
Tolerance: ±50g.

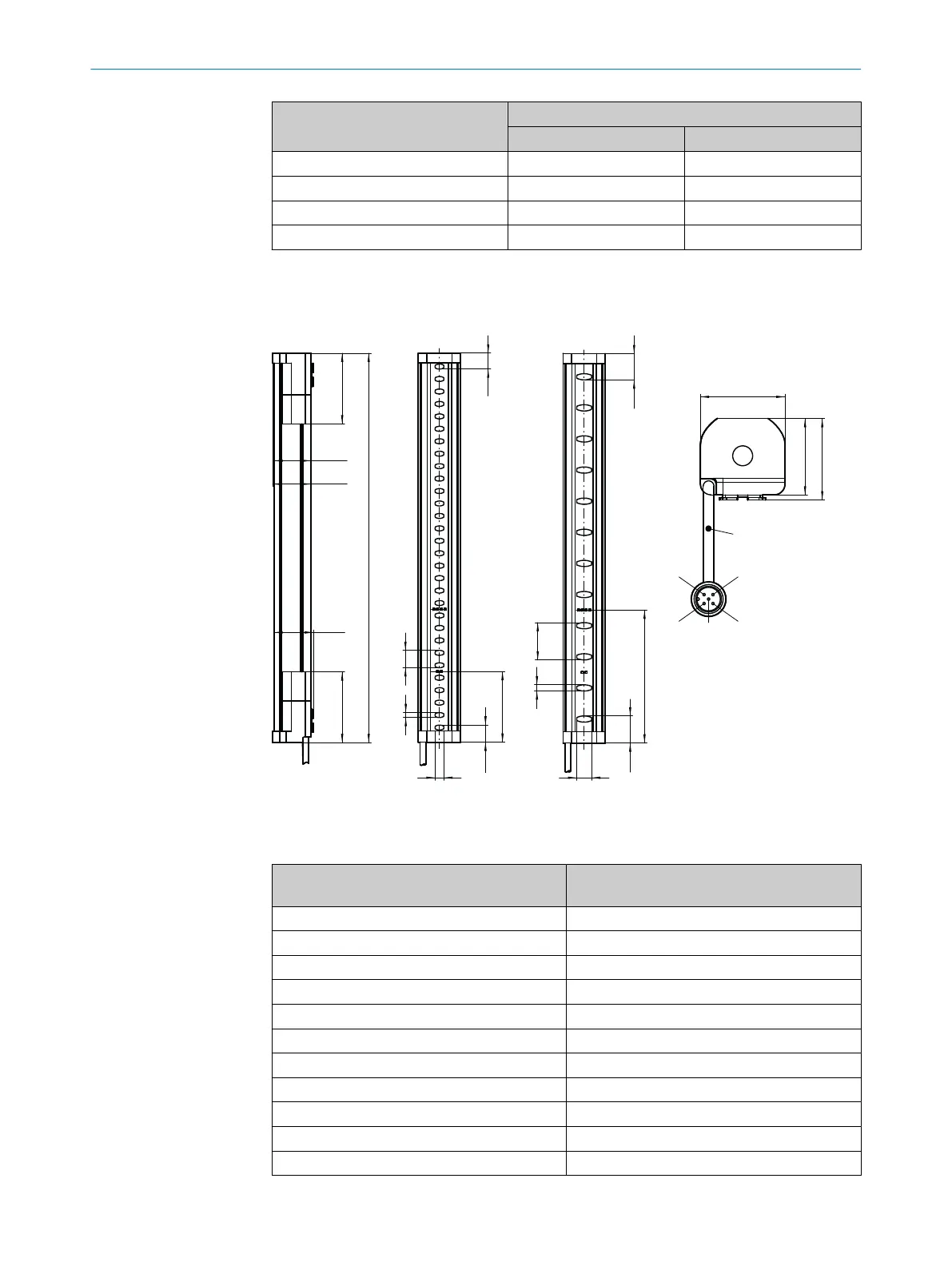

12.6 Dimensional drawings
30,7
32,8
L=150
34
1
2
5
3
4
5
30
12
<22
106,8
<22
<14
<14
56,8
4
14
7
56,8
31,6
30,7
29,5
56,8
L
Figure 28: Dimensional drawing of sender and receiver
Table 17: Dimensions based on the protective field height, sender and receiver
Protective field height, nominal in mm Protective field height, effective = dimension L
in mm
1)
300 313
450 463
600 613
750 763
900 913
1050 1063
1200 1213
1350 1362
1500 1512
1650 1662
1800 1812
TECHNICAL DATA 12
