Siemens RDG100, RDG100T, RDG110, RDG140, RDG160 Basic Documentation CE1P3181en
Building Technologies Functions 14 Dec 2011

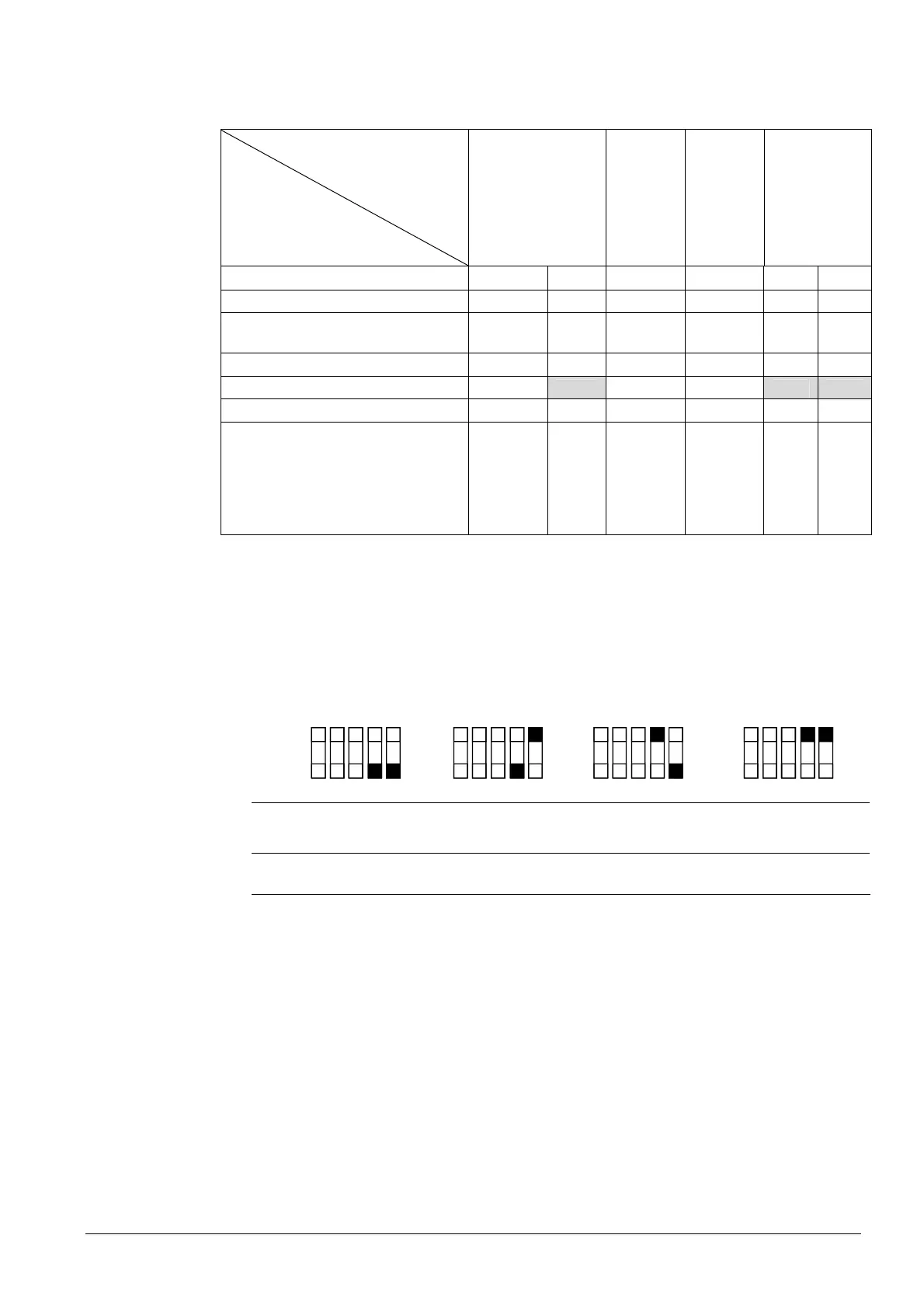

4.7.2 Control outputs configuration
(setting via DIP switches 4 / 5 and parameters P46 / P47)
Control outputs
Application

ON / OFF
(2-position)
Modulating
PWM
(2-position)
Modulating
3-position
Modulating DC 0…10 V
2-pipe
     
2-pipe and electric heater
     
2-pipe and radiator / floor
heating
     
4-pipe
     
4-pipe and electric heater


(

) *
  
2 stage, cooling or heating
     
Available with type 
RDG100
RDG100T
RDG100T/H
RDG110
RDG100
RDG100T
RDG100T/H RDG100
RDG100T
RDG100T/H
RDG140 RDG160
* (only possible for 1 actuator)
With RDG100, RDG100T and RDG100T/H, the function of the control outputs (2-
position or 3-position) is set via DIP switches 4 and 5 .
With RDG140 and RDG160, DIP switches 4 and 5 can be used to invert the
DC 0…10 V signal to 10…0 V.
The patterns of DIP switches 4 and 5 are as follows:
ON
OFF
123 45
ON
OFF
123 45
ON
OFF
123 45
ON
OFF
123 45
3181D101
RDG100, RDG100T,
Y1 / Y2 = 2-position 2-position 3-position 3-position
RDG100T/H
Y3 / Y4 = 2-position 3-position 2-position 3-position
RDG140, RDG160
Y10 = DC 0…10 V DC 0 … 10 V DC 10 … 0 V inv. 10 … 0 V inv.
Y20 = DC 0…10 V DC 10 … 0 V inv. DC 0 … 10 V 10 … 0 V inv.
RDG100, RDG100T, RDG100T/H:
If 2-position is selected, the factory setting is on/off. If you want PWM (pulse width
modulation), set parameters P46 and / or P47 to 2 = PWM.
RDG110: Only on/off available.
For details concerning connection of peripheral devices and setting of the DIP
switches, refer to the Mounting Instructions:
– [4] M3181.1 (RDG100, RDG100T)
– [5] M3181.2 (RDG110)
– [6] M3181.3 (RDG140, RDG160)
– [7] M3181.4 (RDG100T/H)
Note
