5.3 Disposal
The device is classified as waste electronic equipment in terms of the European
Directive 2002/96/EC (WEEE) and should not be disposed of as unsorted muni-
cipal waste.
The relevant national legal rules must be adhered to.
Regarding disposal, use the systems setup for collecting electronic waste.
Observe all local and applicable laws.
6 Engineering

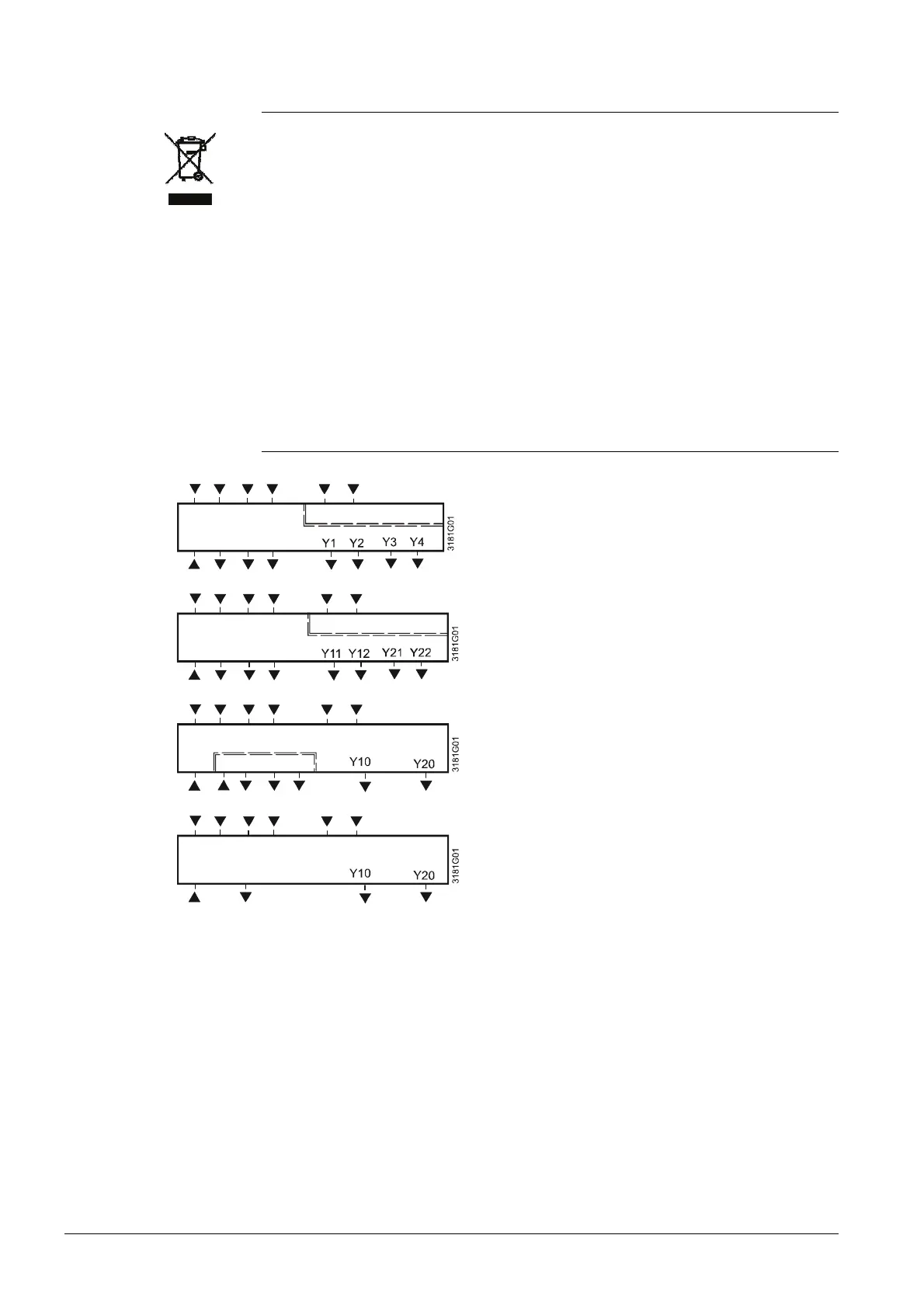

6.1 Connection terminals
RDG100,
RDG100T,
RDG100T/H
L X1 M X2 D1 GND
N Q1 Q2 Q3
SELV
RDG110
SELV
L X1 M X2 D1 GND
N Q1 Q2 Q3
RDG140
G X1 M X2 D1 GND
G0 L Q1 Q2 Q3
SELV
RDG160
G X1 M X2 D1 GND
G0 Y50
SELV
L, N Operating voltage AC 230 V
G, G0 Operating voltage AC 24 V
X1, X2 Multifunctional input for temperature sensor
(e.g. QAH11.1) or potential-free switch
Factory setting :
- X1 = external room temperature sensor
- X2 = sensor or switch for heating / cooling
changeover
Change of setting: Parameters P38, P40
M Measuring neutral for sensor and switch
D1, GND Multifunctional input for potential-free switch.
Factory setting: Operating mode switchover
contact
Change of setting: Parameter P42
Q1 Control output fan speed “low” AC 230 V
Q2 Control output fan speed “medium” AC 230 V
Q3 Control output fan speed “high” AC 230 V
Y50 Control output fan speed DC 0 … 10 V
Y1…Y4 Control output “Valve” AC 230 V
(NO, for normally closed valves),
output for electric heater via external relay
Y11, Y21 Control output “Valve” AC 230 V
(NO, for normally closed valves),
output for compressor or electric heater
Y12, Y22 Control output “Valve” AC 230 V
(NC, for normally open valves)
Y10, Y20 Control output for DC 0…10 V actuator
