4.2.5 SCALANCE XR524-8WG 24 V AC/DC
The following 󹪝gure shows an overview of the components of a 24 V AC/DC device version of the
SCALANCEXR524-8WG.






① Electrical ports with 10/100/1000Mbps without securing collar
② Slots for SFP/SFP+ plug-in transceiver with 1/10 Gbps
③ Mounting brackets for 19" rack installation
④ Grounding bolt for connecting the protective grounding, on the back of the device
⑤ 24VAC/DC power supply
⑥ USB console interface (2.0 port, Type B, serial via USB)
⑦ CLP slot with an inserted CLP
⑧ "SELECT/SET" button
⑨ LED display
• Port LEDs
• "F" LED for the fault display
• "L1/L2" LED for the power supply
• "RM" LED for the redundancy manager function
• "SB" LED for the status of the standby function
• "DM1/DM2" LED for the display mode

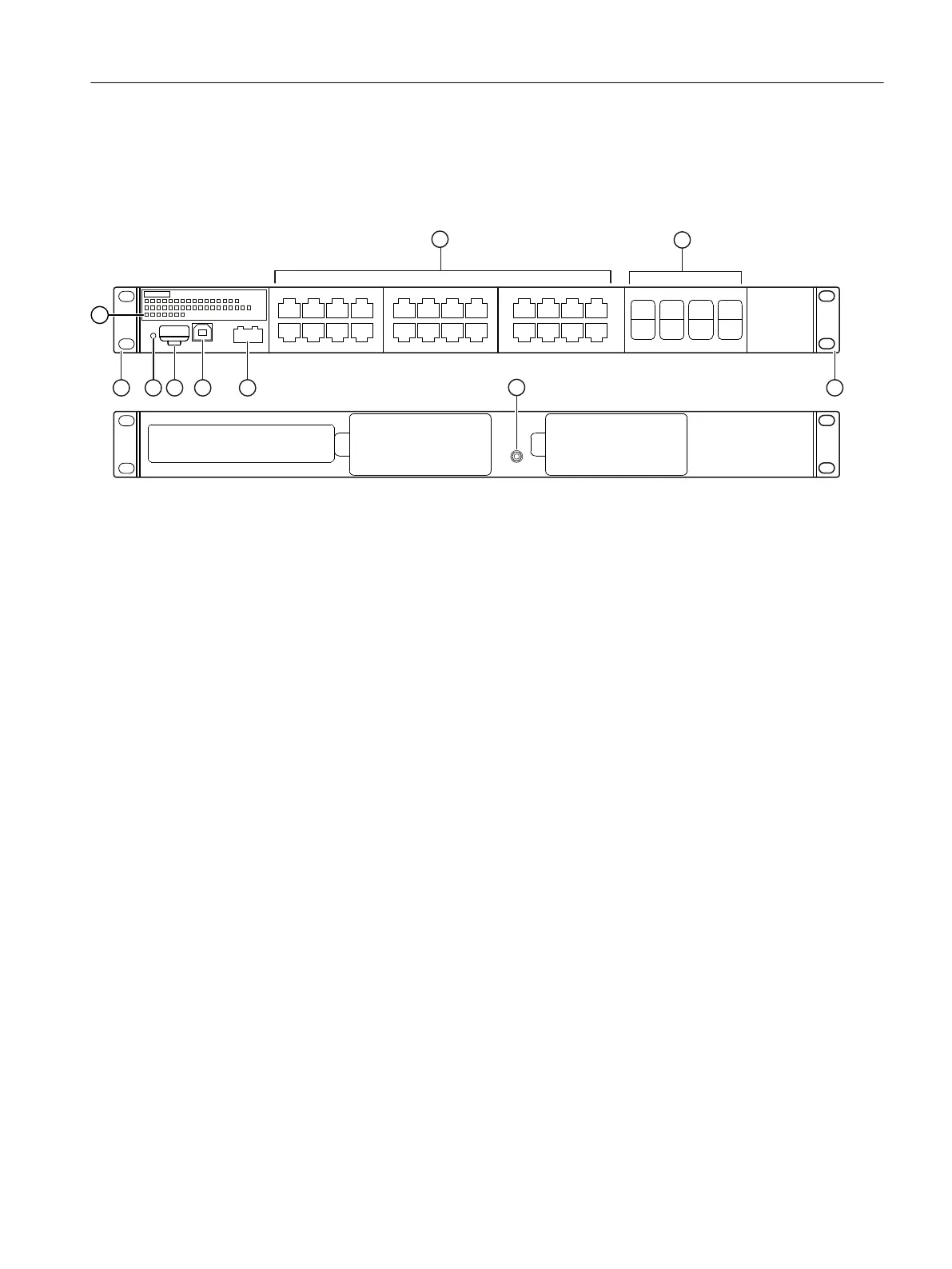

Figure4-5 SCALANCE XR524-8 24VAC/DC, front and rear
Description of the device
4.2Device views
SCALANCE XR-500
Operating Instructions, 07/2023, C79000-G8976-C692-01 31
