Introduction
2.2 Product overview
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
23
2.2.2 Designs of the IE Switch X-300 devices
Designs and variants of the IE Switch X-300
The IE switches of the SCALANCE X-300 product line can have the following designs and
variants:
Designs of the IE Switch X300
X Compact devices: IE switches X-300 (3 sizes: 60, 120, 180)
XR Rack devices (R): 19" IE switches (for 19" cabinet installation)
X-300EEC IE Switches X-300: 19"/2 devices (width: 216 mm)
Variant M of the IE Switch X-300
M Modular devices (M) are intended to accommodate media modules.
• Partially modular devices: Some of the ports (slots) are intended to accommodate media modules.
Example: X308-2M
• Fully modular devices: All ports (slots) are intended to accommodate media modules.
Example: XR324-12M

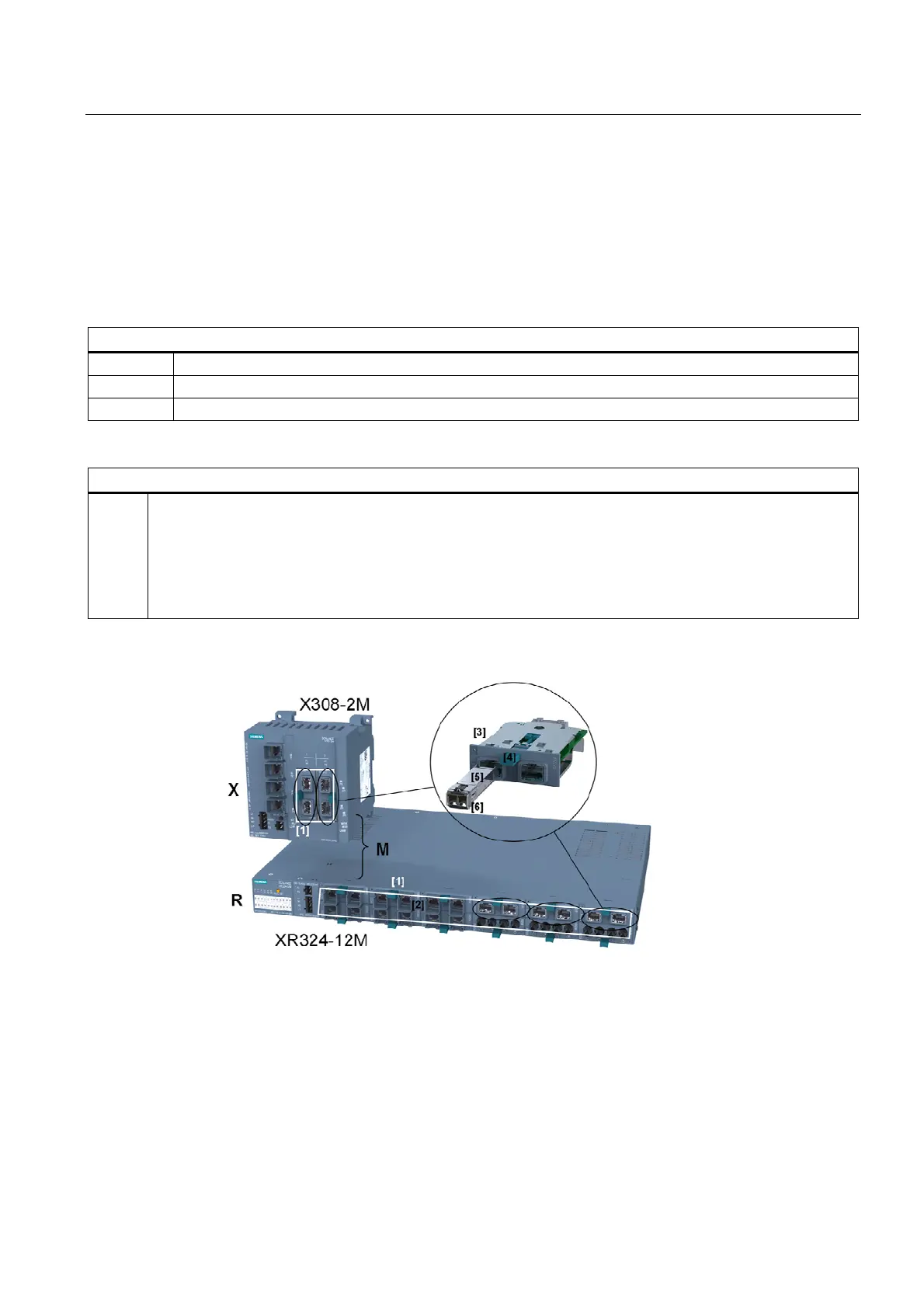

Figure 2-1 Designs of the IE Switch X-300, example with modular devices (M)
The figure shows the X308-2M and XR324-12M switches with slots for media modules
marked
