Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
53
4.2.1.7 SCALANCE X310FE product characteristics
Possible attachments
The SCALANCE X310FE has 10 RJ-45 jacks for the connection of end devices or other
network segments.

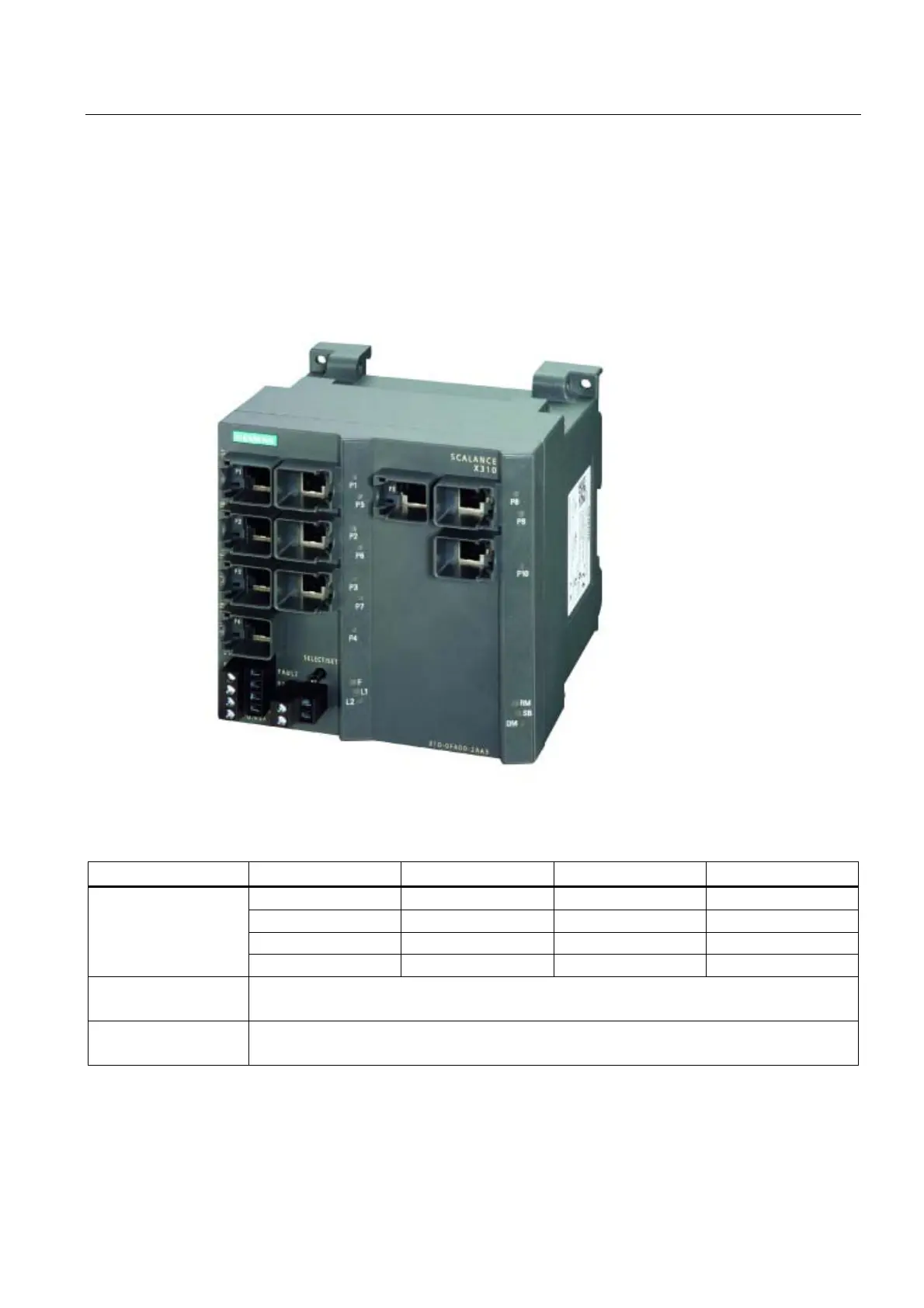

Figure 4-7 SCALANCE X310FE
Column 1 2 3 4
P1 P5 P8 P9
P2 P6 - P10
P3 P7 - -
Port number
P4 - - -
Connection type
electrical
No marking → Fast Ethernet port
*
1
) marking → gigabit Ethernet port
Connection type
optical
*
2
) marking → Fast Ethernet port
*
3
) marking → gigabit port
