Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
55
4.2.1.9 SCALANCE X308-2LD product characteristics
Possible attachments
The SCALANCE X308-2LD has 8 RJ-45 jacks and 2 FO ports (for single mode fiber) for the
connection of end devices or other network segments.

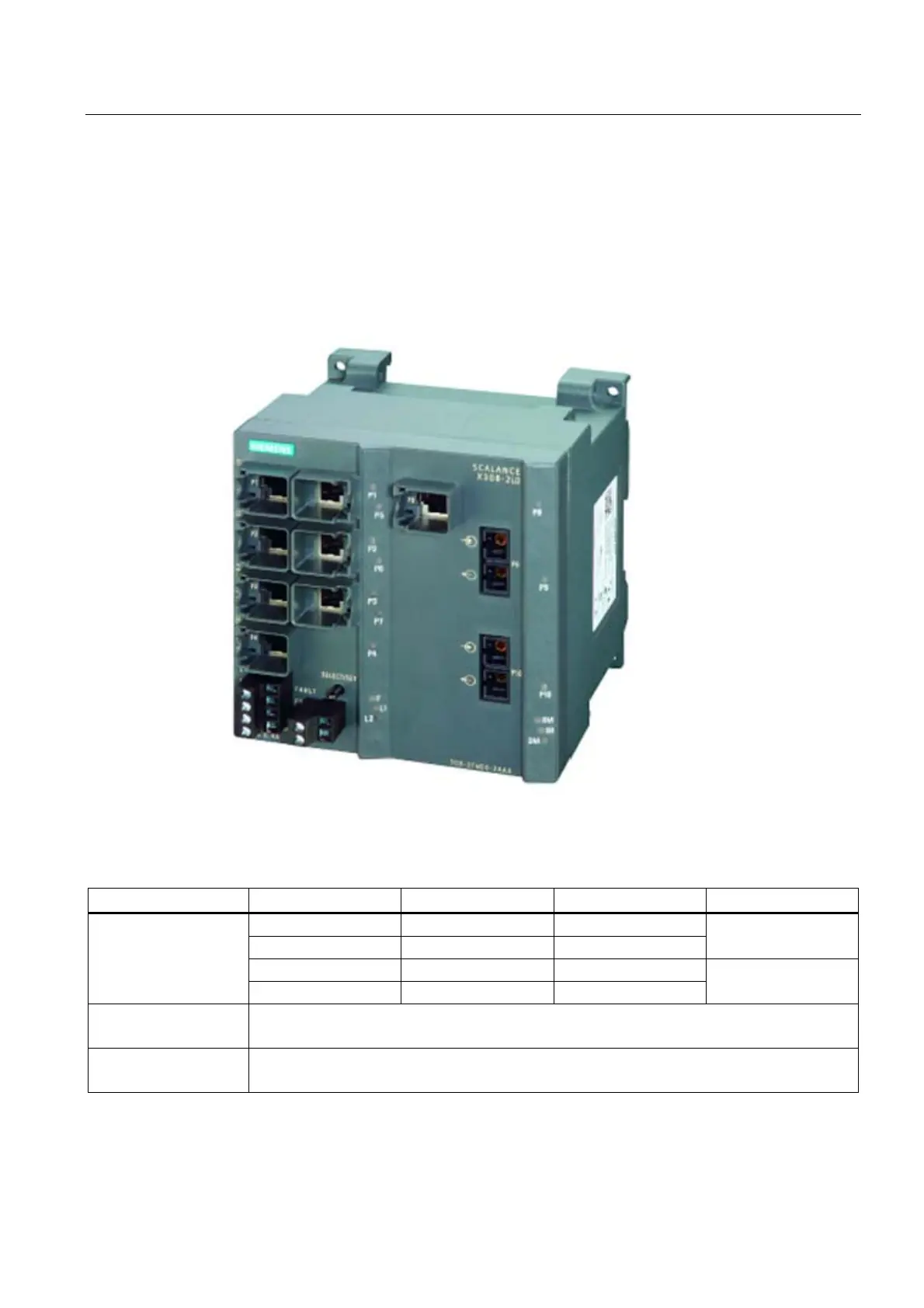

Figure 4-9 SCALANCE X308-2LD
Column 1 2 3 4
P1 P5 P8 *
1
)
P2 P6 -
P9 *
3
)
P3 P7 -
Port number
P4 - -
P10 *
3
)
Connection type
electrical
No marking → Fast Ethernet port
*
1
) marking → gigabit Ethernet port
Connection type
optical
*
2
) marking → Fast Ethernet port
*
3
) marking → gigabit port
