Description of the device
4.2 Product groups
SCALANCE X-300
82 Operating Instructions, 02/2012, A5E01113043-12

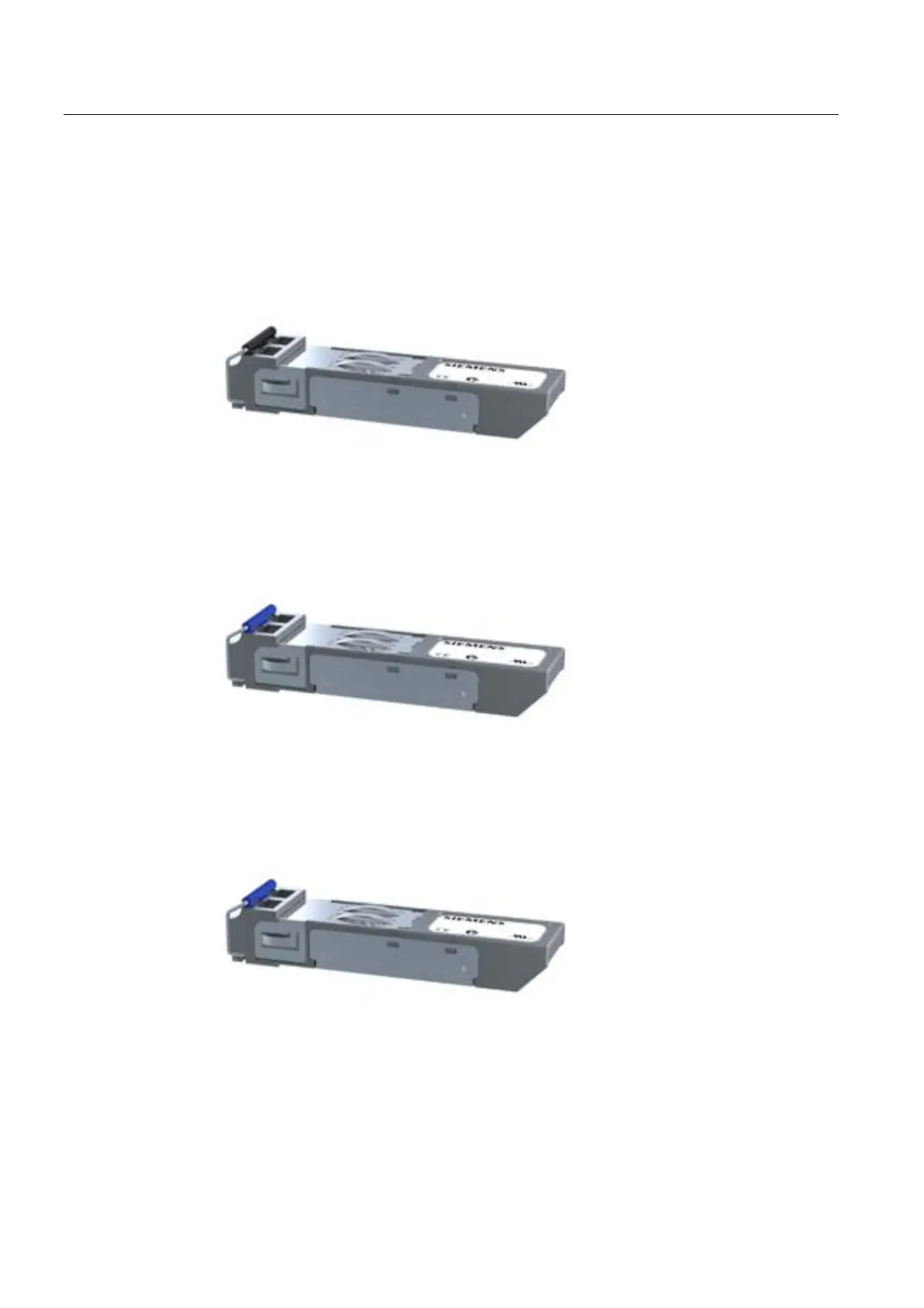

4.2.9 SFP transceiver
Possible attachments
The SFP991-1 transceiver has the following:
● 1 x 100 Mbps, LC port optical (multimode, glass) up to max. 3 km
Figure 4-39 SFP991-1
Possible attachments
The SFP991-1LD transceiver has the following:
● 1 x 100 Mbps, LC port optical (single mode, glass) up to max. 26 km
Figure 4-40 SFP991-1LD
Possible attachments
The SFP991-1LH+ transceiver has the following:
● 1 x 100 Mbps, LC port optical (single mode, glass) up to max. 70 km
Figure 4-41 SFP991-1LH+
