Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
57
4.2.1.11 SCALANCE X320-1FE product characteristics
Possible attachments
The SCALANCE X320-1 FE has 20 RJ-45 jacks and 1 FO port (for multimode fiber) for the
connection of end devices or other network segments.

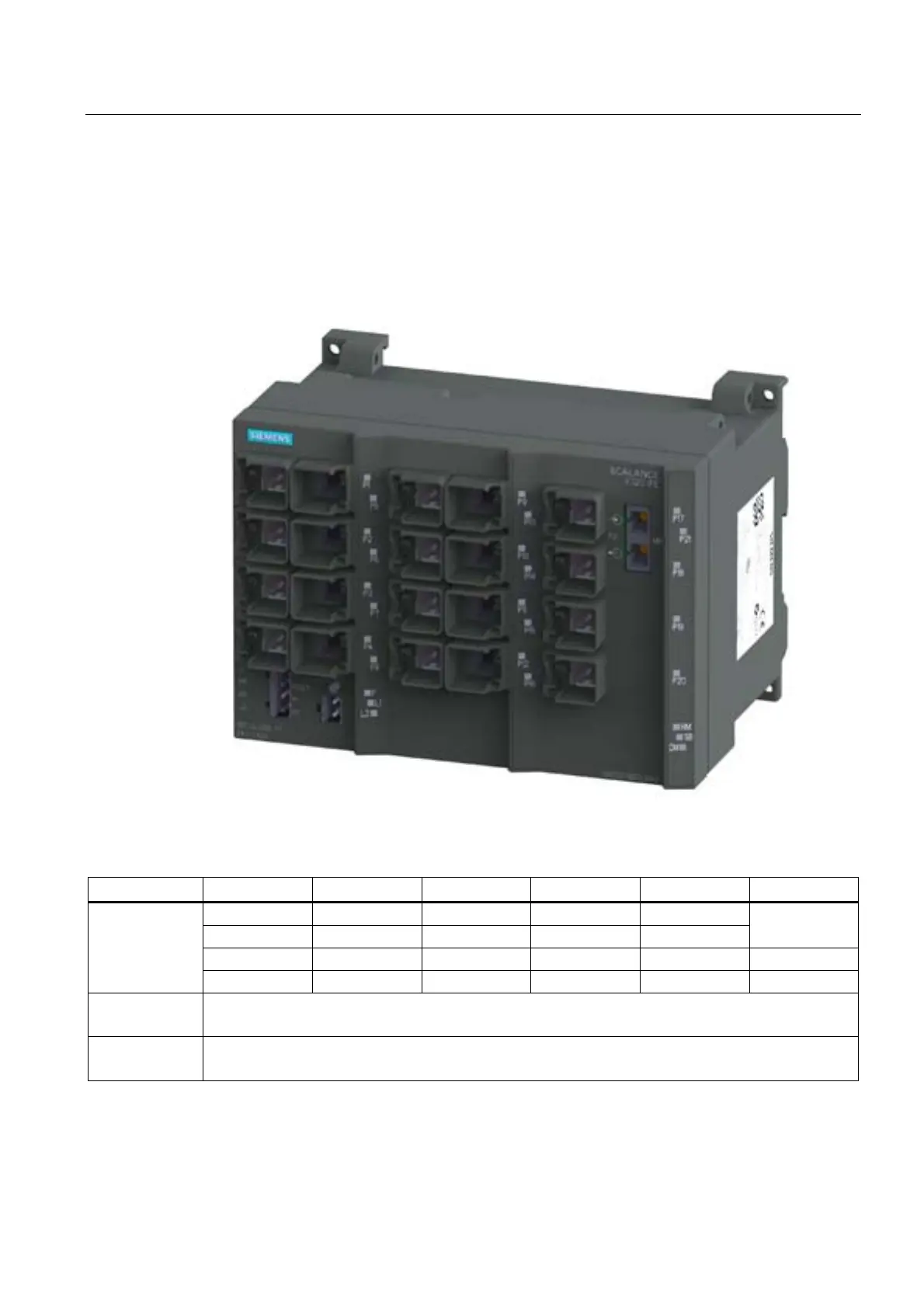

Figure 4-11 SCALANCE X320-1 FE
Column 1 2 3 4 5 6
P1 P5 P9 P13 P17
P2 P6 P10 P14 P18
P21 *
2
)
P3 P7 P11 P15 P19 -
Port number
P4 P8 P12 P16 P20 -
Connection type
electrical
No marking → Fast Ethernet port
*
1
) marking → gigabit Ethernet port
Connection type
optical
*
2
) marking → Fast Ethernet port
*
3
) marking → gigabit port
