32
3.10 Loading audiograms from internal memory

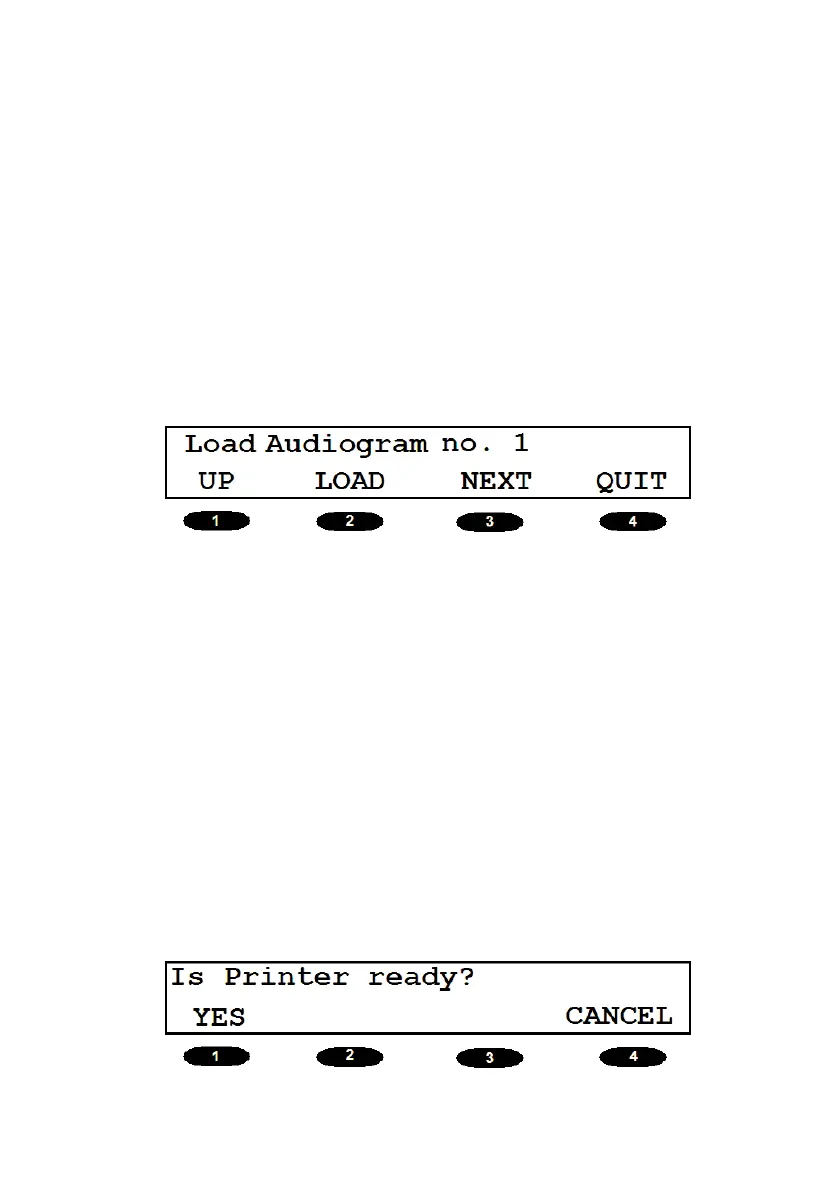

Press the OPTIONS key, press NEXT repeatedly until “Load Audio-
gram no.” appears on screen. Select the required audiogram (1-12),
using the UP key then press the LOAD key. Press the QUIT key once
confirmation that the thresholds have been retrieved appears on
screen.
3.11 Printing audiograms
Connect the audiometer to the printer with supplied printer cable
(refer to Section 2.5 of this operating manual for printer set-up).
Insert the 6-pin mini DIN into the DATA socket on the back of the
audiometer. Insert the terminal plug into the socket at the back
of the printer.
Ensure the printer is switched on and ready to print.
Load the desired audiogram as described in 3.10; to print the
current audiogram ignore this instruction.
Press the PRINT key. On the prompt “Is printer ready?” press the
YES key. The audiogram will then print.
