Siemens SIMATIC ET 200SP HA User Manual

6.3 Application case 1a: SIL3/Cat.3/PLd, 2-wire transmitter, 1oo1 (high
availability)
De󹪝nition
In the following, you can 󹪝nd the wiring diagram and the con󹪝guration of the I/O module F-AI
8xI 2-/4-wire HART HA for application case 1a:
• SIL3/Cat.3/PLd
• 1oo1 evaluation
• 2-wire transmitter
• Redundant I/O module
You can 󹪝nd possible diagnostic messages, their causes and remedies in the "Diagnostic
messages" section.
Wiring
You perform the wiring on the appropriate terminal block. You can 󹪝nd additional information
on this in the section "Terminal assignment (Page 17)".
Sensor supply
The sensor supply is internal for a 2-wire transmitter.
The sensor supply UVn is provided by the F-module for 8 channels.

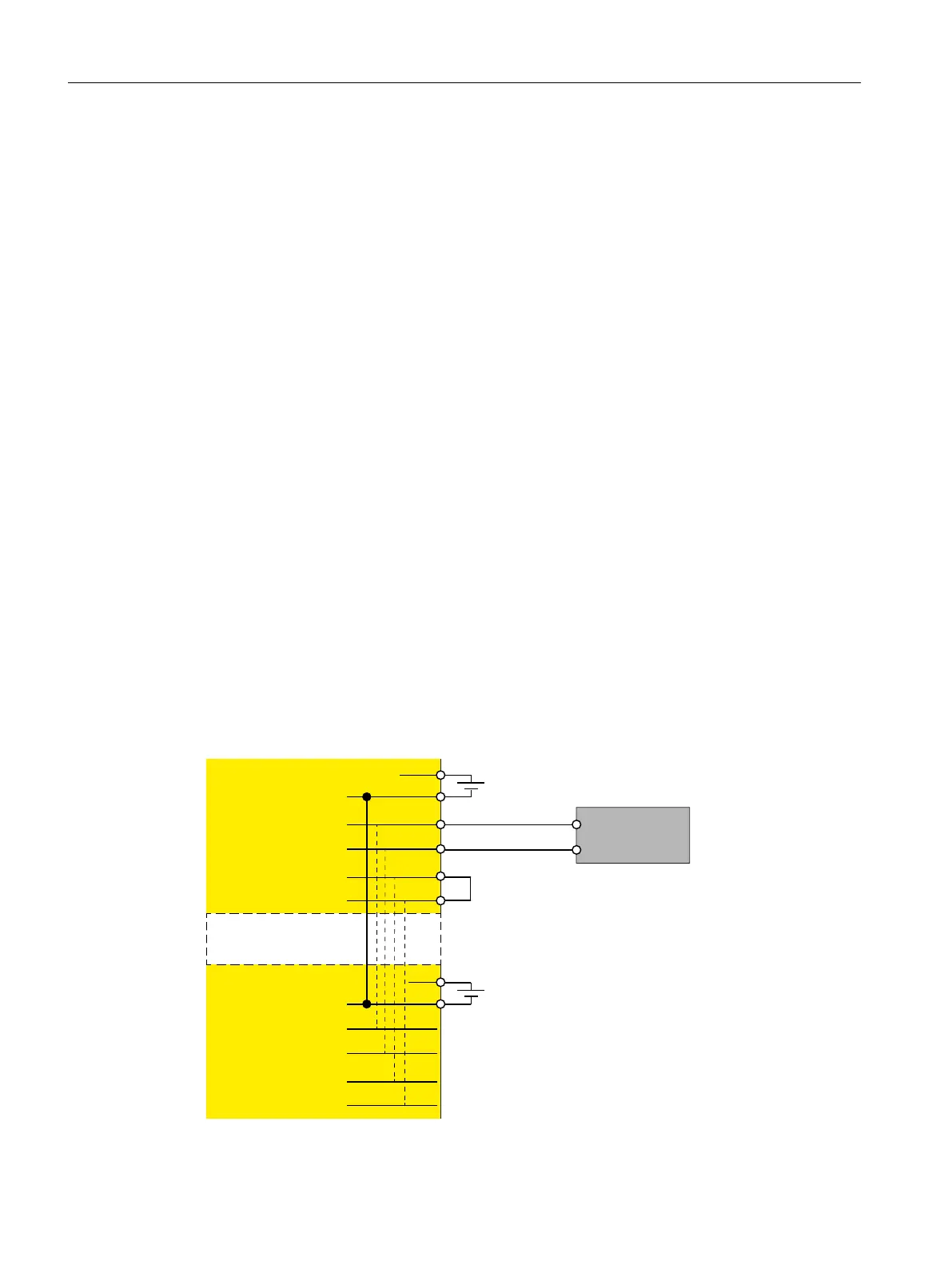

Wiring scheme
*OUFSOBMMZDPOOFDUFEWJBUIF
SFEVOEBOUUFSNJOBMCMPDL
XJSFUSBOTNJUUFS
&YUFSOBMXJSFKVNQFS
SFRVJSFE
*O
67O
*O
.O
*O
67O
*O
.O
.
-
.
-
'"*Y*XJSF)"35)"
%-""1)
'"*Y*XJSF)"35)"
%-""1)
Applications of the F-I/O module
6.3 Application case 1a: SIL3/Cat.3/PLd, 2-wire transmitter, 1oo1 (high availability)
F-AI 8xI 2-/4-wire HART HA
42 Equipment Manual, 09/2021, A5E50557845-AA

Siemens SIMATIC ET 200SP HA Specifications

General

Category	I/O Systems
System	SIMATIC ET 200SP HA
Mounting	DIN rail
Protection Rating	IP20
Communication Protocol	PROFINET
Redundancy	Yes
Hot Swapping	Yes
Modularity	Modular
Power Supply	24 V DC
Temperature Range	-40 to 70 °C
Product Type	Distributed I/O
Number of I/O modules	Up to 64
Redundancy Type	system redundancy
Operating Temperature	-40 to 70 °C
Storage Temperature	-40 to 70 °C
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	IEC 60068-2-6
Shock Resistance	According to IEC 60068-2-27
Mounting Type	DIN rail
